Quick Details
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
HGLD
-
Rated Current:
-
3150A
-
Certification:
-
CE/CCC/ISO
-
Poles:
-
2P/3P/4P
-
Warranty:
-
18 Months
-
Breaking Capacity:
-
High
-
OEMODM:
-
Yes
-
Standard:
-
IEC 60947-6-1
-
Operation type:
-
Automatic
-
Contact Material:
-
Copper T3
-
Cover Material:
-
Plastic V0
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
HGLD
-
Rated Current:
-
3150A
-
Certification:
-
CE/CCC/ISO
-
Poles:
-
2P/3P/4P
-
Warranty:
-
18 Months
-
Breaking Capacity:
-
High
-
OEMODM:
-
Yes
-
Standard:
-
IEC 60947-6-1
-
Operation type:
-
Automatic
-
Contact Material:
-
Copper T3
-
Cover Material:
-
Plastic V0

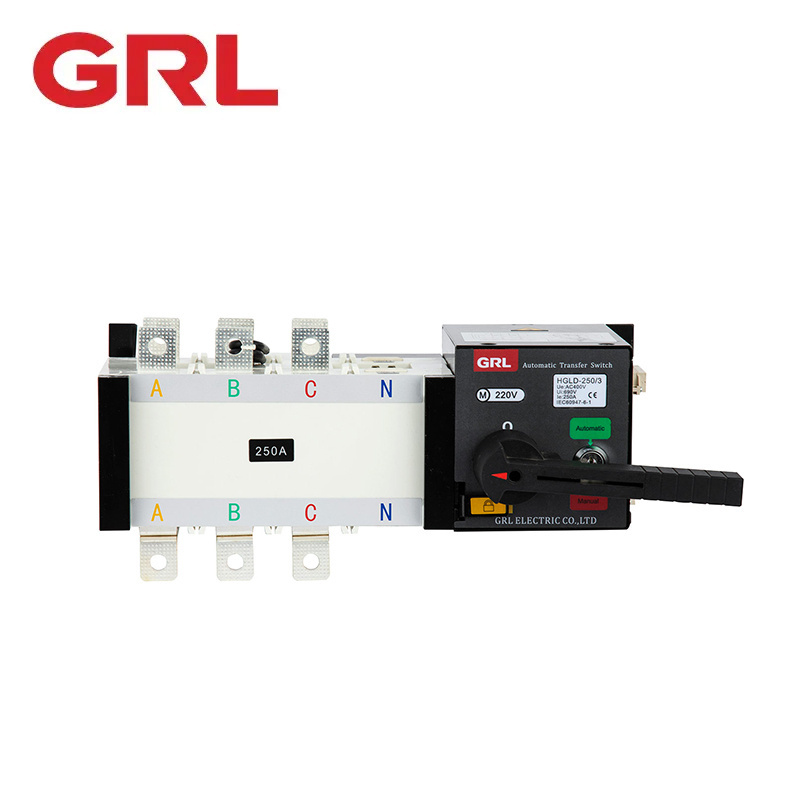

Overview
HGLD series Automatic transfer switch mainly used for distribution or electromotor network, wihich under voltage 400V, rated voltage DC 220V,
Rated current 63A-3200A. Main power and standby power or mutual standby power change over system or city power and generator group overload
switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,
hospital,bank,building,etc, where doesn't allow power off.
Model list
| No. | Pole | Rated Current | Installation |
| HGLD-160/3 | 3-pole | 100A,160A | Fixed Type |
| HGLD-250/3 | 3-pole | 200A,250A | |
| HGLD-400/3 | 3-pole | 315A,400A | |
| HGLD-630/3 | 3-pole | 500A,630A | |
| HGLD-1250/3 | 3-pole | 800A,1000A,1250A | |
| HGLD-3150/3 | 3-pole | 1600A,2500A,3150A | |
| HGLD-160/4 | 4-pole | 100A,160A | |
| HGLD-250/4 | 4-pole | 200A,250A | |
| HGLD-400/4 | 4-pole | 315A,400A | |
| HGLD-630/4 | 4-pole | 500A,630A | |
| HGLD-1250/4 | 4-pole | 800A,1000A,1250A | |
| HGLD-3150/4 | 4-pole | 1600A,2500A,3150A |
Parameter
| Product | Automatic Transfer Switch |
| NO. | HGLD |
| Poles | 3P & 4P |
| Rated Voltage | 400V/660V |
| Rated Current | 63A,100A,160A,250A,315A,400A,500A,630A,800A,1000A,1250A,1600A,2000A,2500A,3150A |
| Installation | Fixed Type |
