Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Liuzhou,China
-
Model Number:
-
ZLP630/ZLP800/ZLP1000
-
MaterialSteel:
-
Aluminum alloy,steel
-
Thickness:
-
2mm~3mm
-
Platform length:
-
6000 (2m*3) support custom 2m/4m
-
Anti-rust treatment:
-
hot-dip galvanizing/painting
-
Lifting speed (m/min):
-
9.5~10
-
Rated power (kw):
-
1.5x2
-
Suspended platform (mm):
-
6000x690x1160
-
Suspension weight (kg):
-
360
-
Counterweight (kg):
-
1000
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Liuzhou,China
-
Model Number:
-
ZLP630/ZLP800/ZLP1000
-
MaterialSteel:
-
Aluminum alloy,steel
-
Thickness:
-
2mm~3mm
-
Platform length:
-
6000 (2m*3) support custom 2m/4m
-
Anti-rust treatment:
-
hot-dip galvanizing/painting
-
Lifting speed (m/min):
-
9.5~10
-
Rated power (kw):
-
1.5x2
-
Suspended platform (mm):
-
6000x690x1160
-
Suspension weight (kg):
-
360
-
Counterweight (kg):
-
1000
Product Description
Our Zlp Suspended Platform Series Products Can Be Customized
Suspended platform is mainly applied to the external wall construction, decoration, cleaning and maintenance of high-rise and multi-storey buildings. It can also be applied to elevator installation, large tanks, bridges, dams and other engineering operations.Suspended platform is composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Application
Accessories

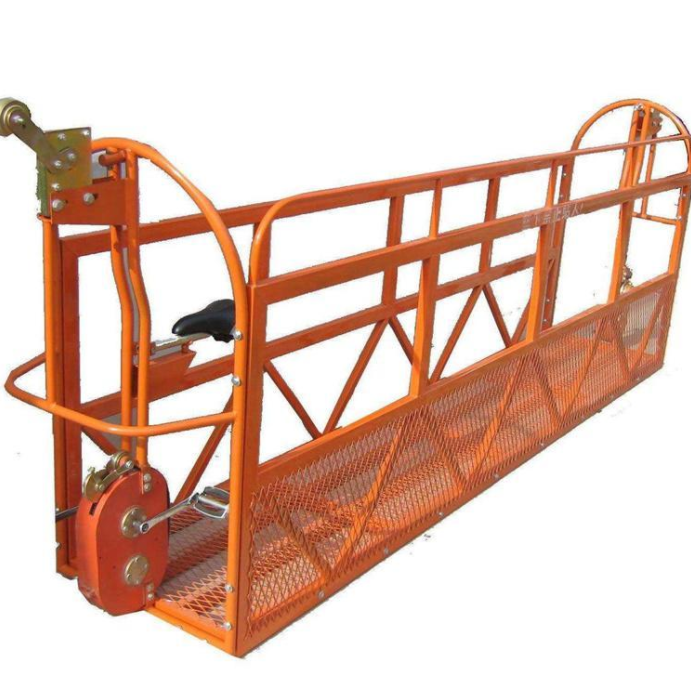

Suspended platform
The length of the platform can be customized according to the requirements of 2m/4m/6m/and other specifications.
Hoist
It is used to drive the up and down movement of the working platform, using a three-phase asynchronous motor.
Distribution box
It is made of bent steel plate, electrostatic spraying treatment, and the lines are neat and uniform.
Safety
lock
Anti-tilt safety lock is adopted, which is safe and stable to prevent slipping from the platform.
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, Cross Categories Consolidation
|
|
Application
|
Outdoor
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Liuzhou,China
|
|
Model Number
|
ZLP630/ZLP800/ZLP1000
|
|
Material
|
Q235B Steel
|
|
Thickness
|
2mm~3mm
|
|
Platform length
|
6000 (2m*3) support custom 2m/4m
|
|
Anti-rust treatment
|
hot-dip galvanizing/painting
|
|
Lifting speed (m/min)
|
9.5~10
|
|
Rated power (kw)
|
1.5x2
|
|
Suspended platform (mm)
|
6000x690x1160
|
|
Suspension weight (kg)
|
360
|
|
Counterweight (kg)
|
1000
|
|
Model
|
ZLP630
|
ZLP800
|
ZLP1000
|
||
|
Rated load
|
630kg
|
800kg
|
1000kg
|
||
|
Lifting speed
|
8.3m/min
|
|
|
||
|
Platform length
|
2m*3
|
2.5m*3
|
2.5m*3
|
||
|
Motor power
|
2*1.5kw
|
2*1.8kw
|
2*2.2kw
|
||
|
Lifting height
|
100m/150m
|
|
|
||
|
Counter weight optional
|
25kg*36pcs
|
25kg*40pcs
|
25kg*44pcs
|
||
|
Hoist motor
|
LTD6.3
|
LTD8.0
|
LTD10.0
|
||
|
Safety lock
|
LST30
|
LST30
|
LST30
|
||
Packing & Delivery
1) Completely covered by PE film.
2) Packed in a plywood carton as a spare part.
3) Use steel wire rope to lock and anti-skid,suitable for container transportation
