- Product Details
- {{item.text}}
Quick Details
-
Power:
-
12kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1400*780*1530mm
-
Name:
-
yogurt production line
-
Material:
-
304 Stainless Steel yogurt production line
-
Final product:
-
Flavoured Milk Yogurt
-
Capacity:
-
100-1000L yogurt production line
-
Processing Types:
-
Complete Processing Line
-
Refrigeration medium:
-
R22 dairy processing machinery
-
Advantage:
-
Easy Operation High Efficiency
-
Tank type:
-
Cooling, Heating, Sterilization, Fermentation Tank
-
Function:
-
Pasteurizing +Fermentation+cooling
-
Product types:
-
Yoghurt Production Equipment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Voltage:
-
220v/380v
-
Power:
-
12kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1400*780*1530mm
-
Name:
-
yogurt production line
-
Material:
-
304 Stainless Steel yogurt production line
-
Final product:
-
Flavoured Milk Yogurt
-
Capacity:
-
100-1000L yogurt production line
-
Processing Types:
-
Complete Processing Line
-
Refrigeration medium:
-
R22 dairy processing machinery
-
Advantage:
-
Easy Operation High Efficiency
-
Tank type:
-
Cooling, Heating, Sterilization, Fermentation Tank
-
Function:
-
Pasteurizing +Fermentation+cooling
-
Product types:
-
Yoghurt Production Equipment

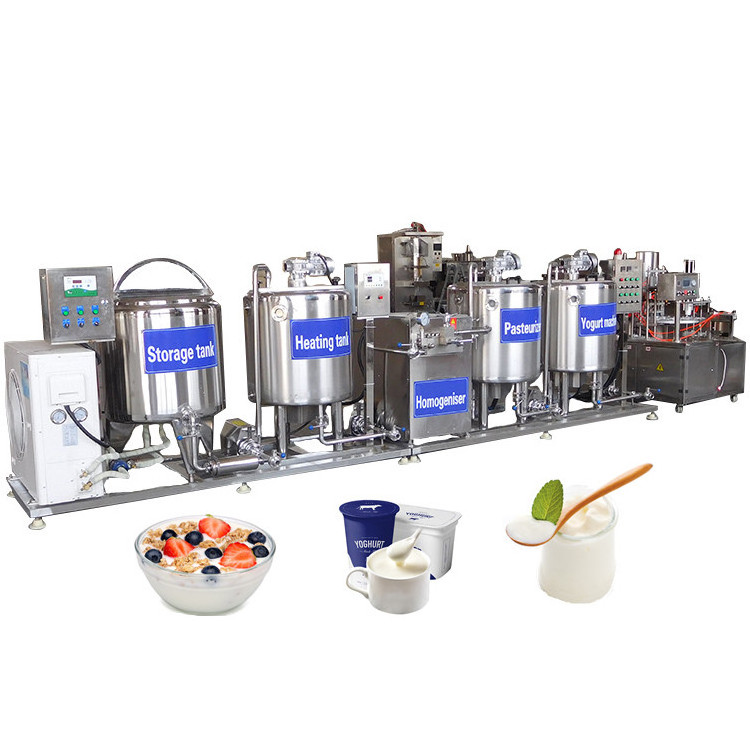

Small Scale Milk Sterilizer Equipment 100L Pasteurized Plant And Yogurt Processing Production Line
Product Description
Specification
|
Item
|
Value
|
|
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Farms, Dairy factory, Milk processing industry
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
Voltage
|
220v/380v
|
|
Power
|
12kw
|
|
Weight
|
500KG
|
|
Dimension(L*W*H)
|
1400*780*1530mm
|
|
Material
|
304stainless Steel
|
|
Final product
|
Flavoured Milk Yogurt
|
|
Capacity
|
300-10000L
|
|
Processing Types
|
Complete Processing Line
|
|
Refrigeration medium
|
R22
|
|
Tank type
|
Cooling, Heating, Sterilization, Fermentation Tank
|
Details Show
Cooling Tank
Material: SUS304
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Installation size: 1700*1100*1950mm
Thermal insulation performance: ≤1℃/3H Compressor:2P
Motor power/quantity: 0.75kw/1
Duplex filter
Filtering capacity: 5t/h
Applicable temperature: ≤120℃
Filter aperture: 200 mesh
Working pressure: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200 (mesh/in)
Preheating tank
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1020*870*1530mm
Power of stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Homogenizer
Output: 200L/H
Maximum pressure: 25Mpa
Motor power: 4kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Plunger material: 9Cr18
Plunger diameter and frequency: 20mm, about 210 times/min
Pasteurizer
Filtering capacity: 5t/h
Applicable temperature: ≤120℃
Filter aperture: 200 mesh
Working pressure: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200 (mesh/in)
Fermenter
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Filling Machine
Material: SUS304
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Air Compressor
Power: 7.5kw
Wooden box size:1240*500*1060mm
Acid/Alkali/Water Tank
Water tank capacity: 500L
Alkali tank capacity: 500L
Acid tank capacity: 500L
Pump power: 1.5kw
Equipment weight: 500kg
Dimensions: 4000*900*2300mm
Final Products
