Quick Details
-
Lock Size:
-
79Lx40Wx23H(mm)
-
Armature Plate Dimension:
-
75Lx31Wx10H(mm)
-
Input Voltage:
-
DC 12V
-
Current draw:
-
12V/160mA
-
Weight:
-
0.6kg
-
Holding force:
-
60kg(100Lbs)
-
Finishes for shell:
-
Anodized aluminum surface texture processing
-
Suitable for:
-
File Cabinet, Display Cabinet
-
Operating Temp:
-
≤20°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
S4A Model No.:
-
EL-100 12V
-
Lock Size:
-
79Lx40Wx23H(mm)
-
Armature Plate Dimension:
-
75Lx31Wx10H(mm)
-
Input Voltage:
-
DC 12V
-
Current draw:
-
12V/160mA
-
Weight:
-
0.6kg
-
Holding force:
-
60kg(100Lbs)
-
Finishes for shell:
-
Anodized aluminum surface texture processing
-
Suitable for:
-
File Cabinet, Display Cabinet
-
Operating Temp:
-
≤20°C

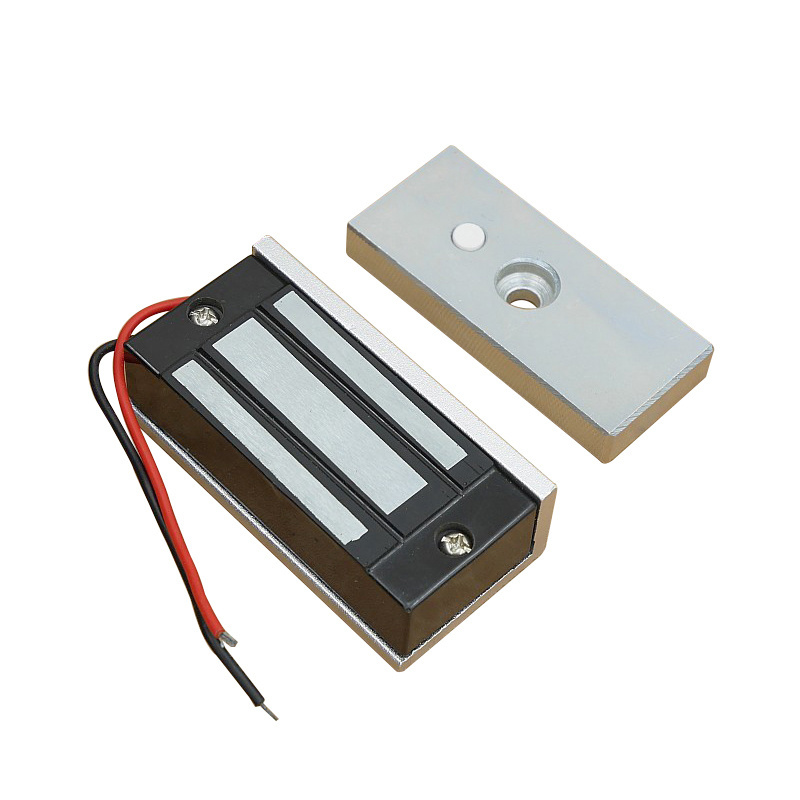

Mini 12V Electromagnetic Locks 100LBS Small Electronic Magnetic Latches 60KG Electric Door Lock
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
|
Item |
Parameter |
|
Lock size |
79Lx40Wx23H(mm) |
|
Armature plate |
75Lx31Wx10H(mm) |
|
Holding force |
60kg(100Lbs) |
|
Voltage |
DC 12V |
|
Current draw |
12V/160mA |
|
Suitable for |
File Cabinet, Display Cabinet |
|
Operating temp |
≤20°C |
|
Surface temp |
-10℃ ~ 55℃ (14°F~131°F) |
|
Suitable humidity |
0~90% (non-condensing) |
|
Finishes for shell |
Anodized aluminum surface texture processing |
|
Finishes for magnetic |
Zinc |
|
Finishes for armature |
Zinc |
|
Weight |
0.6kg |
|
Standard packing |
60pcs |
