Quick Details
-
Power:
-
3.2KW
-
Dimension(L*W*H):
-
1330*1130*1200mm
-
Weight:
-
580 KG
-
Product name:
-
leather split machine
-
Application:
-
Leaher splitting
-
Function:
-
splitting leather machine
-
Keywords:
-
PLC Band Knife Leather Splitting Machine
-
Working width:
-
300mm
-
Certification:
-
CE
-
Name:
-
Leather Belt Slitting Machine
-
Suitable for:
-
Leather Goods Industry
-
Features:
-
Easy Operation
-
Key words:
-
Splitting Split
Quick Details
-
Voltage:
-
AC380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAFENG
-
Power:
-
3.2KW
-
Dimension(L*W*H):
-
1330*1130*1200mm
-
Weight:
-
580 KG
-
Product name:
-
leather split machine
-
Application:
-
Leaher splitting
-
Function:
-
splitting leather machine
-
Keywords:
-
PLC Band Knife Leather Splitting Machine
-
Working width:
-
300mm
-
Certification:
-
CE
-
Name:
-
Leather Belt Slitting Machine
-
Suitable for:
-
Leather Goods Industry
-
Features:
-
Easy Operation
-
Key words:
-
Splitting Split
Product Description

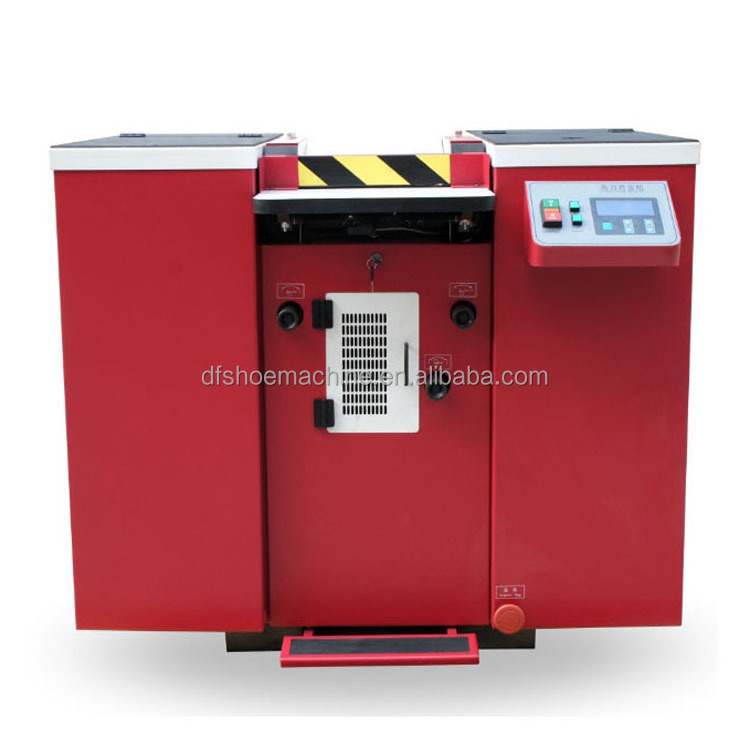

DF-300 PLC BAND KNIFE SPLITTING MACHINE
USE
The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 300mm, according to the required thickness in the industry of leather products.
CHARACTERS
1.Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.
2.With automatic feed registration device, no need to adjust cutting tool.
3.With function of dropping out when it is splitting.
4.Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.
5.Freestanding set of dust absorbing device, automatic detection system of electronic phase.
PARAMETER
Maximal width of split: 300mm
Min thickness of cutting: Adopt two feeding rollers 0.6-8mm, Adopt feeding bar 0.2-8mm
Specification of band knife: 2630×50×0.6mm
Feeding speed Stepless timing
Motor power: 3.2kW
Package size: 1330×1130×1200mm
Gross weight / Net weight: 580kg/500kg
The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 300mm, according to the required thickness in the industry of leather products.
CHARACTERS
1.Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.
2.With automatic feed registration device, no need to adjust cutting tool.
3.With function of dropping out when it is splitting.
4.Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.
5.Freestanding set of dust absorbing device, automatic detection system of electronic phase.
PARAMETER
Maximal width of split: 300mm
Min thickness of cutting: Adopt two feeding rollers 0.6-8mm, Adopt feeding bar 0.2-8mm
Specification of band knife: 2630×50×0.6mm
Feeding speed Stepless timing
Motor power: 3.2kW
Package size: 1330×1130×1200mm
Gross weight / Net weight: 580kg/500kg
Specification
|
item
|
value
|
|
Applicable Industries
|
Manufacturing Plant
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts
|
|
Local Service Location
|
Indonesia, Thailand
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Motor
|
|
Condition
|
New
|
|
Automatic Grade
|
Semi-automatic
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
DAFENG
|
|
Type
|
SPLITTING MACHINE
|
|
Voltage
|
AC380V
|
|
Power
|
3.2KW
|
|
Dimension(L*W*H)
|
1330*1130*1200mm
|
|
Weight
|
580KG
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Free spare parts, Field maintenance and repair service, Online support, Video technical support
|
|
Product name
|
leather split machine
|
|
Application
|
Leaher splitting
|
|
Function
|
splitting leather machine
|
|
Keywords
|
PLC Band Knife Leather Splitting Machine
|
|
Working width
|
300mm
|
