Products Description

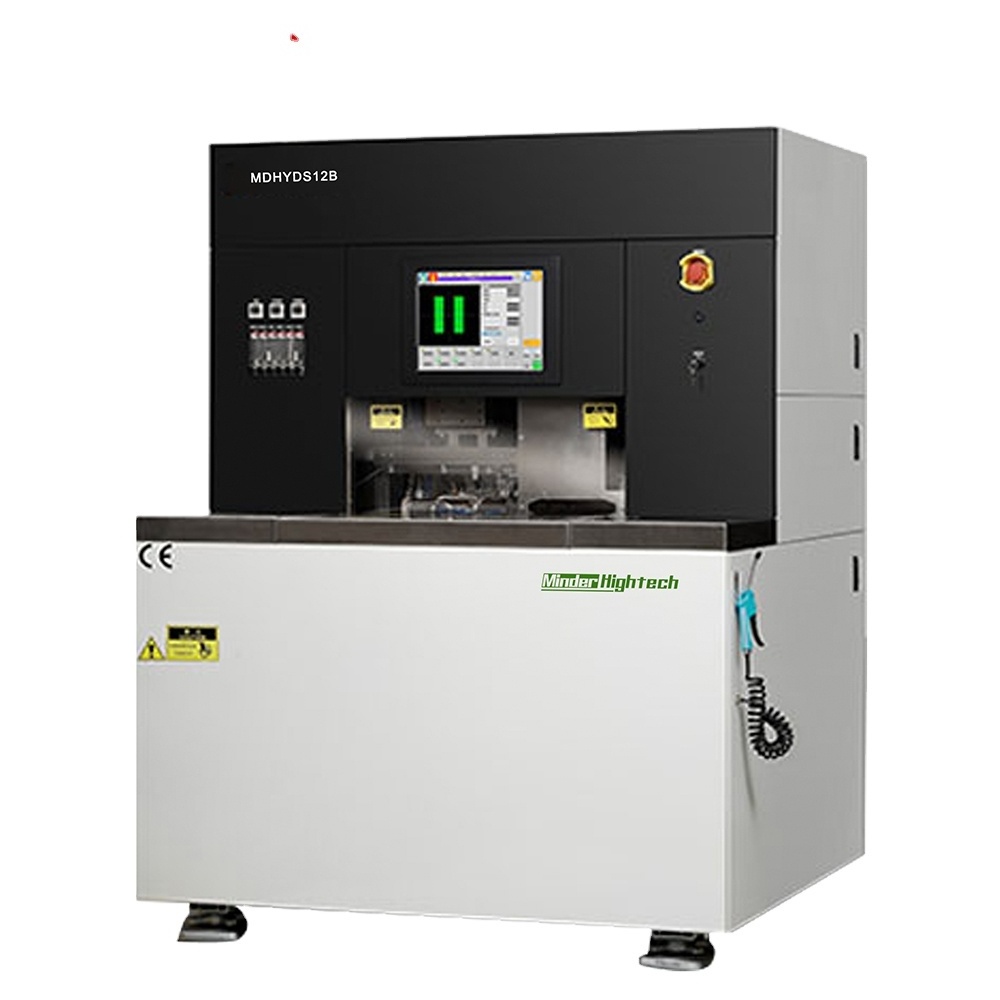

MDHYDS12B 12 inch discing saw
MDHYDS12B
precision dicing machine is equipped with 2.4kw high-power DC spindle; high-rigidity portal structure; θ-axis DD motor drive; maximum workpiece size can reach 310*310mm, suitable for cutting large package substrate materials, and the cutting efficiency is relatively single-axis model It can be increased by up to 90%
MDHYDS8FA 8 inch discing saw
MDHYDS8FA
precision dicing machine is equipped with 2.4kw high-power DC spindle; high-rigidity gate structure; θ-axis DD motor drive; imported high-precision lead screw and guide rail; dual lens alignment; software functions are further enhanced, and the degree of automation is significantly improved; Widely meet all kinds of processing needs.
MDHYDS12FA 12 inch discing saw
MDHYDS12FA
is a 12-inch fully automatic precision dicing machine. This model realizes the automatic operation of wafer loading, alignment, cutting, cleaning and unloading. This model is equipped with high-power opposed dual-spindles. Both the Z1 and Z2 axes are equipped with NCS and special microscopes, which greatly reduces the alignment and inspection time, thereby reducing labor costs and improving production efficiency.
Specification
|
|
|
|
MDHYDS8FA
|
MDHYDS12B
|
|
|
MDHYDS12FA
|
||||
|
Spec
|
dicing size
|
mm
|
ф8”〡□250
|
ф12”〡□300
|
ф420”〡□360
|
|
ф12”〡□275
|
||||
|
|
dicing depth
|
mm
|
≤4mm or custom
|
≤4mm or custom
|
|
|
≤4mm or custom
|
||||
|
Main spindle
|
rotaty speed
|
minˉ¹
|
6000∽60000
|
6000∽60000
|
|
|
6000∽60000
|
||||
|
|
power
|
kW
|
DC,2.4at60000minˉ¹
|
DC,2.4at60000minˉ¹
|
|
|
DC,2.4at60000minˉ¹
|
||||
|
X axis
|
stroke
|
mm
|
260
|
310
|
450
|
|
310
|
||||
|
|
speed range
|
mm/s
|
0.1∽600
|
0.1∽800
|
|
|
0.1∽1000
|
||||
|
Y axis
|
stroke
|
mm
|
260
|
170
|
|
|
310
|
||||
|
|
resolution
|
mm
|
0.0001
|
310
|
|
450
|
0.0001
|
||||
|
|
single move accuracy
|
mm
|
≤0.002/5
|
≤0.002/5
|
|
|
≤0.002/5
|
||||
|
|
F accuracy
|
mm
|
≤0.005/260
|
≤0.005/310
|
|
|
≤0.005/310
|
||||
|
Z axis
|
stroke
|
mm
|
40
|
40
|
|
|
40
|
||||
|
|
max blade size:
|
mm
|
ф58
|
ф58
|
|
|
ф58
|
||||
|
|
resolution
|
mm
|
0.00005
|
0.00005
|
|
|
0.00005
|
||||
|
|
accuracy
|
mm
|
0.001
|
0.001
|
|
|
0.001
|
||||
|
R axis
|
rotary range
|
deg
|
380
|
380
|
|
|
380
|
||||
|
Basic required
|
power
|
KVA
|
4.0（three phase，AC380V）
|
5.0（three phase，AC380V）
|
|
|
7.0（three phase，AC380V）
|
||||
|
|
air
|
Mpa L/min
|
0.5∽0.6max consumption260
|
0.5∽0.6max consumption400
|
|
|
0.5∽0.6max consumption550
|
||||
|
|
cutting fluid
|
Mpa L/min
|
0.2∽0.3max consumption4.0
|
0.2∽0.3max consumption7.0
|
|
|
0.2∽0.3max consumption9.0
|
||||
|
|
cooling water
|
Mpa L/min
|
0.2∽0.3max consumption1.5
|
0.2∽0.3max consumption3.0
|
|
|
0.2∽0.3max consumption3.0
|
||||
|
|
exhaust
|
m³/min
|
5.0
|
8.0
|
|
|
8.0
|
||||
|
|
size
|
mm
|
900*1050*1800
|
1170*1030*1850
|
1380*1300*1850
|
|
1200*1600*1800
|
||||
|
|
weight
|
kg
|
1050
|
1400
|
1550
|
|
2000
|
||||
Detail
Features:
√ Integrated cutting and cleaning;
√ Standard non-contact height measurement function (NCS);
√ Optional tool mark detection function;
√ Optional blade breakage detection function (BBD);
√ Optional workpiece shape detection function;
√ Optional data scanning input function;
√ Standard non-contact height measurement function (NCS);
√ Optional tool mark detection function;
√ Optional blade breakage detection function (BBD);
√ Optional workpiece shape detection function;
√ Optional data scanning input function;
Equipment workflow:
1. Lower the take-up arm to take out the material to be cut from the wafer box, place the material to be cut on the
pre-calibration table for pre-calibration, and then send it to the working plate for dicing.
2. The upper fetching arm moves the cut material from the work plate to the cleaning plate for two-fluid cleaning and wafer drying.
3. Lower the pick arm and put the cut material back into the pre-calibration table for pre-calibration, and then push it back
into the wafer box.
pre-calibration table for pre-calibration, and then send it to the working plate for dicing.
2. The upper fetching arm moves the cut material from the work plate to the cleaning plate for two-fluid cleaning and wafer drying.
3. Lower the pick arm and put the cut material back into the pre-calibration table for pre-calibration, and then push it back
into the wafer box.
Conditions of Use:
1. Please set the machine in an environment of 20~25ºC (the fluctuation range is controlled within ±1ºC); the indoor humidity should be 40%~60%, keep constant without condensation.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
Application areas:
IC, optical and optoelectronics, communications, LED packaging, QFN packaging, DFN packaging, BGA packaging
Precision cutting materials
silicon wafer, PCB board, EMC, ceramics, glass, quartz, gallium arsenide, lithium niobate, sapphire, crystal
Auto focus function:
Through the visual algorithm, coordinated with the motion control, the lens can be automatically raised and lowered, and the clear position of the workpiece image can be quickly obtained.
