Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
YSH-TZ161
-
Brand Name:
-
YSH
-
Product name:
-
Hex mesh
-
Hole shape:
-
Hexagonal Hole
-
Certificates:
-
ISO9001:2015
-
Thickness:
-
1-3mm
-
Hole size:
-
5*5cm
Quick Details
-
Material:
-
STAINLESS STEEL Strip
-
Type:
-
Hex Steel Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
YSH-TZ161
-
Brand Name:
-
YSH
-
Product name:
-
Hex mesh
-
Hole shape:
-
Hexagonal Hole
-
Certificates:
-
ISO9001:2015
-
Thickness:
-
1-3mm
-
Hole size:
-
5*5cm

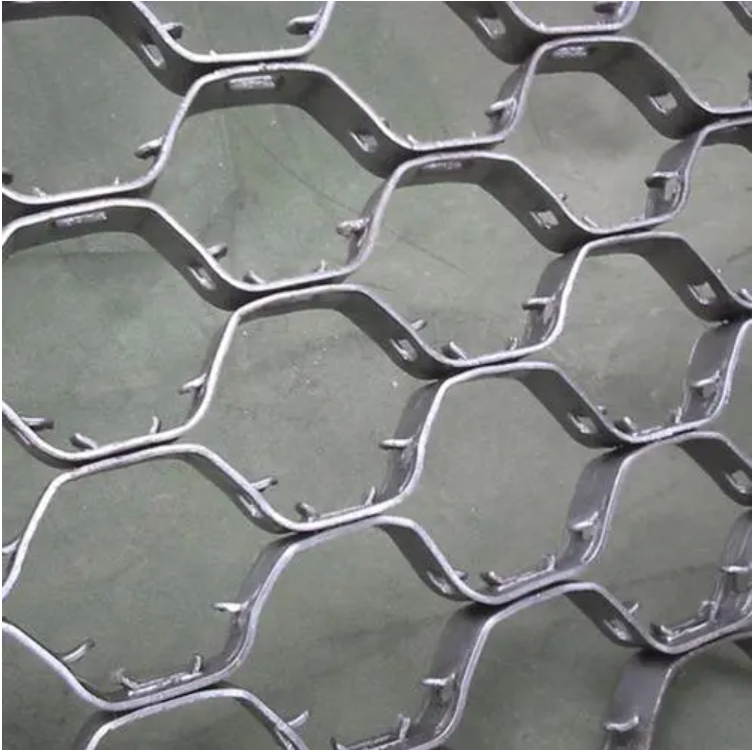

Stainless Steel 304 / 410S Hex Mesh Hex Steel Mesh for Refractory
Hex mesh
is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of its strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Stainless steel Hex mesh
is flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
hexsteel
is also called hexmesh, hex grid metal. It is a refractory material often used in furnaces
Reactors ducts and flues and provides long term protection for armor applications in industrial floors.
FEATURES of hexteel
1. High wear resistance, high temperature, corrosion resistance
2. Strong Thermal state impact ability,
3. Good mechanical processing performance
4. Used in about 1300° C
|
SPECIFICATION |
|
|
Material |
Q235,Q345,304SS,310S,SS410,SS304 |
|
Thickness |
1.0mm/1.2mm/1.5mm/1.8mm/2.0mm/2.5mm/3.0mm |
|
Height |
10mm,15mm,19mm,20mm , 25mm,30mm,40mm,50mm,60mm |
|
Aperture |
50mm,60mm,70mm,80mm,100mm |
|
Panel size |
1m*1m 1m*1.3m 0.96m*3m (As your request) |
Hexsteel is mainly used to fasten the refractory ducts linings, etc. Catalytic cracker, reactors, cyclone and u-type actifier ducts in oil and chemical industry; Furnaces linings erosion resistant, ducts elbow in electrical industry; Furnaces, actifier reactors in petroleum refinery. Alloys(1Cr13) mainly for refractory resistant, 1Cr18Ni9Ti or 0Cr18Ni9 for erosion resistant.
Hexsteel can be supplied either flat or cut to size and rolled; After rolling, they can easily fit inside vessel walls And provide for a perfect continuity of the refractory lining for Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration, even with very narrow Radii of as small as 15cm.
