Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DSV
-
Model Number:
-
DSV-J
-
Product name:
-

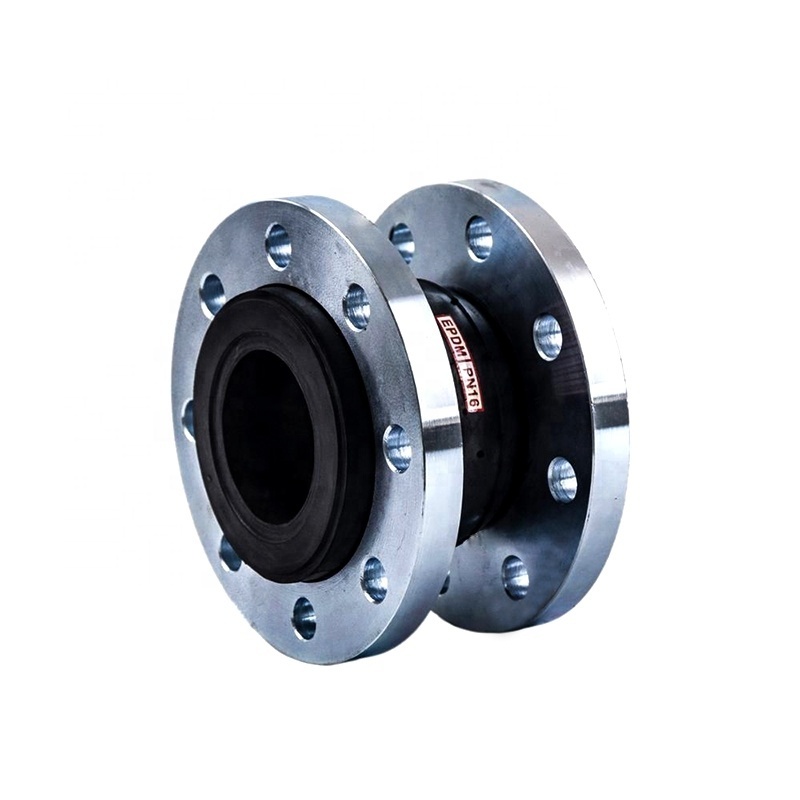

Hypalon Rubber Expansion Joint E Flex Rubber Flexible Joint
-
Standard:
-
DN/NPS
-
Certificate:
-
ISO9001
-
Pressure:
-
PN10/PN16/PN25
-
MOQ:
-
1 Piece
-
Feature:
-
High-resistance to work
-
Body material:
-
Carbon Steel/EPDM
-
Packing:
-
Wooden Case
-
Working Pressure:
-
1.0-1.6Mpa (10-25bar)
-
Delivery Time:
-
7- 15 Days
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Circle
-
Head Code:
-
Circle
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DSV
-
Model Number:
-
DSV-J
-
Product name:
-
Hypalon Rubber Expansion Joint E Flex Rubber Flexible Joint
-
Standard:
-
DN/NPS
-
Certificate:
-
ISO9001
-
Pressure:
-
PN10/PN16/PN25
-
MOQ:
-
1 Piece
-
Feature:
-
High-resistance to work
-
Body material:
-
Carbon Steel/EPDM
-
Packing:
-
Wooden Case
-
Working Pressure:
-
1.0-1.6Mpa (10-25bar)
-
Delivery Time:
-
7- 15 Days
Steam Flexible Rubber Bridge Pipe Expansion Joints
Product Description
1. Nominal diameter(mm): 32~1200
2. Suitable temperature(°C): -20°C~120°C
3. Nominal pressure(Mpa): 1.0/1.6
4. Testing seal pressure(Mpa): 1.1/1.76
5. Flange connection according to
DIN PN10/16, ANSI 125#/150#, BS4504 PN10/16,
EN1092-2, JB/T T9-2015 ect.
6. Test standard: API 598
7. Suitable medium: Drinking water,sewage,seawater,food,medicines,gas,oil and acid.
|
NO.
|
Part
|
Material
|
|
1
|
Cover
|
EPDM
|
|
2
|
Reinforcing
|
Nylon
|
|
3
|
Tube/Joint
|
EPDM/NBR
|
|
4
|
Retain Rings
|
Steel
|
|
5
|
Flange
|
Carbon Steel/
WCB Cold/Hot Galvanizing
|
|
Size
|
ΦD1
|
ΦD2
|
N-Φd
|
D
|
d
|
Extension
|
Compression
|
Horizontal displacement (mm)
|
Weight(kg)
|
|
DN32
|
140
|
100
|
4-18
|
95
|
16
|
6
|
9
|
9
|
3.4
|
|
DN40
|
150
|
110
|
4-18
|
95
|
18
|
6
|
10
|
9
|
4
|
|
DN50
|
165
|
125
|
4-19
|
105
|
18
|
7
|
10
|
10
|
5.5
|
|
DN65
|
185
|
145
|
4-19
|
115
|
20
|
7
|
13
|
11
|
6.7
|
|
DN80
|
200
|
160
|
8-19
|
135
|
20
|
8
|
15
|
12
|
7.7
|
|
DN100
|
220
|
180
|
8-19
|
150
|
22
|
10
|
19
|
13
|
9.4
|
|
DN125
|
250
|
210
|
8-19
|
165
|
24
|
12
|
19
|
13
|
12.7
|
|
DN150
|
285
|
240
|
8-23
|
180
|
24
|
12
|
20
|
14
|
15.8
|
|
DN200
|
340
|
295
|
12-23
|
210
|
24
|
16
|
25
|
22
|
20
|
|
DN250
|
405
|
355
|
12-28
|
230
|
28
|
16
|
25
|
22
|
29.22
|
|
DN300
|
460
|
410
|
12-28
|
245
|
28
|
16
|
25
|
22
|
32.8
|
|
DN350
|
520
|
470
|
16-28
|
255
|
28
|
16
|
25
|
22
|
41.3
|
|
DN400
|
580
|
525
|
16-31
|
255
|
30
|
16
|
25
|
22
|
55.6
|
|
DN450
|
640
|
585
|
20-31
|
255
|
30
|
16
|
25
|
22
|
61.8
|
|
DN500
|
715
|
650
|
20-34
|
255
|
32
|
16
|
25
|
22
|
69.4
|
|
DN600
|
840
|
770
|
20-37
|
260
|
36
|
16
|
25
|
22
|
96.8
|
Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
