Quick Details
-
Brand Name:
-
DECCA
-
Model Number:
-
240S
-
Product name:
-
OSCILLOSCOPE
-
Input coupling:
-
DC AC ground
-
Wave refresh:
-
10,000 wfms/s
-
Sampling method:
-
125MSa/s
-
Ourput impedance:
-
50 Ω
-
Model:
-
240S
-
Power supply:
-
2 AAA Alkaline Batteries
-
USB:
-
yes
-
Display:
-
3.5inch
-
Frequency:
-
40MHz 70MHz
Quick Details
-
Type:
-
Oscilloscope
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DECCA
-
Model Number:
-
240S
-
Product name:
-
OSCILLOSCOPE
-
Input coupling:
-
DC AC ground
-
Wave refresh:
-
10,000 wfms/s
-
Sampling method:
-
125MSa/s
-
Ourput impedance:
-
50 Ω
-
Model:
-
240S
-
Power supply:
-
2 AAA Alkaline Batteries
-
USB:
-
yes
-
Display:
-
3.5inch
-
Frequency:
-
40MHz 70MHz
Products Description
Products Description
DECCA

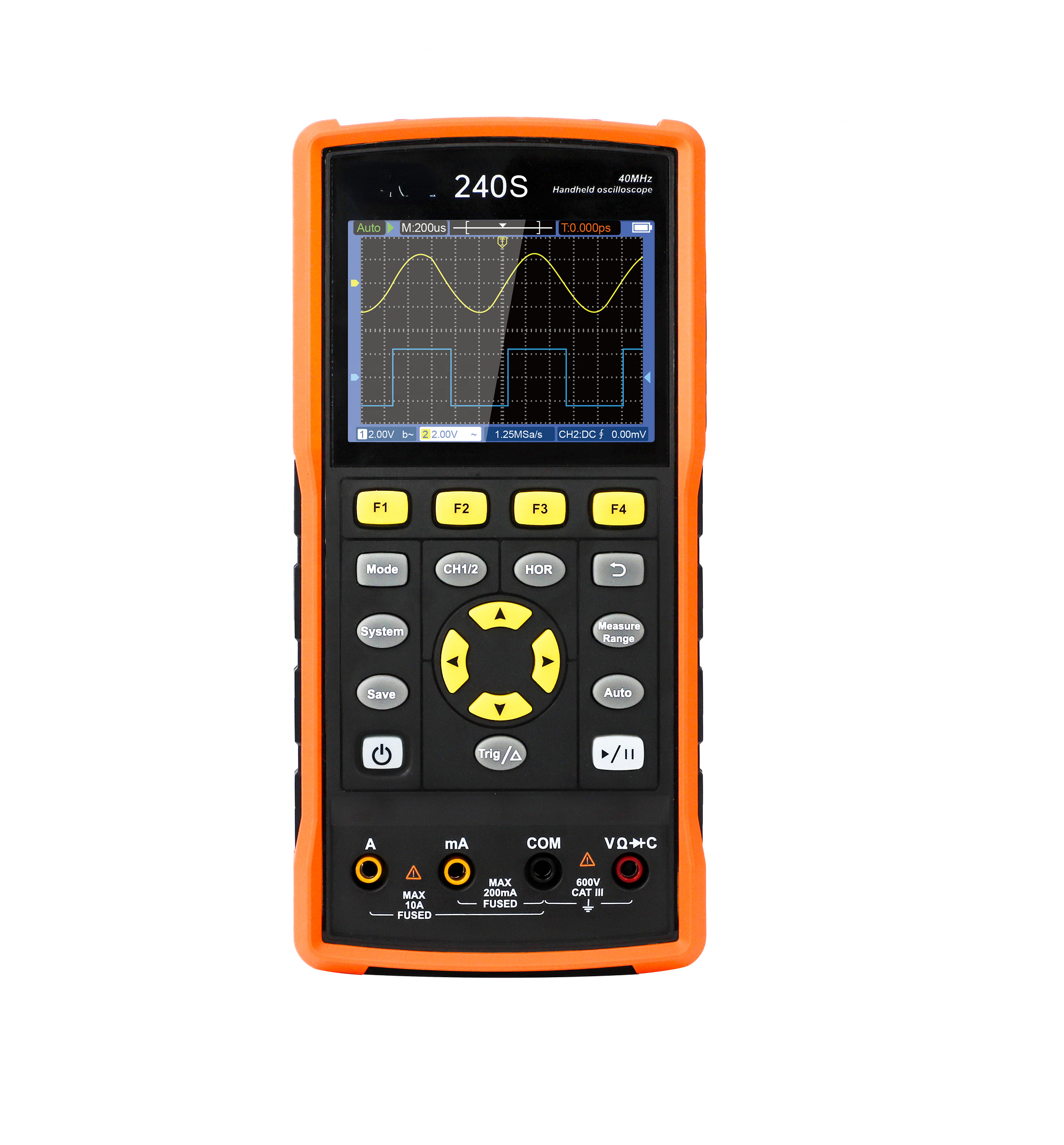

240S China handheld Oscilloscope 2CH Channel
40MHz 125MSa/s Sampling Rate Dual-Channel multimeter
Storage signal souce
The two channels of the oscilloscope are non-isolated channels. Note that the channel should use a common reference when measuring,and the ground wires of the two probes cannot be connected to two non-isolated places with different DC electrical levels, otherwise it may cause a short circuit due to the ground wire connection of the oscilloscope probe.
A: List of Accessories
* 1 USB cable
* 1 passive probes
* 1 crocodile clip cable
* 2crocodile clip cable
* 1 set of multimeter probes (one red and one black)
* 1 user manual
* 1 probe correction adjustment knife
* 1 USB cable
* 1 passive probes
* 1 crocodile clip cable
* 2crocodile clip cable
* 1 set of multimeter probes (one red and one black)
* 1 user manual
* 1 probe correction adjustment knife
|
Characteristics
|
|
|
Description
|
|
|||
|
Bandwidth
|
|
|
40 MHz
|
|
|||
|
Channel
|
|
|
2
|
|
|||
|
Sampling
|
Sampling method
|
|
Sampling, peak detection
|
|
|||
|
|
Real-time sampling rate
|
|
125 MSa/s (Dual channel) 250 MSa/s (Single channel)
|
|
|||
|
|
Waveform refresh rate
|
|
10,000 wfms/s
|
|
|||
|
|
Input coupling
|
|
DC, AC, ground
|
|
|||
|
|
Input impedance (DC coupling)
|
|
1Mohm±2%, in parallel with 16 pF±10 pF
|
|
|||
|
|
Probe attenuation
|
|
1X ,10X,100X,1000X ,10000X
|
|
|||
|
|
Maximu input voltage
|
|
400 V (DC + AC ,PK - PK)
|
|
|||
|
|
Bandwidth limit
|
|
20 MHz ,Full bandwidth
|
|
|||
|
|
Sampling rate range
|
|
0.25 Sa/s~250 MSa/s
|
|
|||
|
|
Waveform interpolation
|
|
(Sinx)/x
|
|
|||
|
|
Sweep speed range (S/div)
|
|
5ns/div - 1000s/div,Stepping in the 1-2-5 way
|
|
|||
|
|
Time base accuracy
|
|
±100 ppm
|
|
|||
|
|
Record length
|
|
8K or 4K optional
|
|
|||
|
|
Sensitivity (Volt/div) range
|
|
10 mV/div~10 V/div
|
|
|||
|
|
Displacement range
|
|
±6 div
|
|
|||
|
|
Analog bandwidth
|
|
40 MHz
|
|
|||
|
|
|
|
70 MHz
|
|
|||
|
|
Single bandwidth
|
|
Full bandwidth
|
|
|||
|
|
Low frequency response (AC coupling, -3dB)
|
|
≥10 Hz
|
|
|||
|
|
Rise time (typical on BNC)
|
|
≤ 8 ns
|
|
|||
|
|
|
|
≤ 5 ns
|
|
|||
|
|
DC gain accuracy
|
|
3%
|
|
|||
|
|
Cursor
|
|
ΔV, ΔT
|
|
|||
|
|
Automatic
|
|
Period, Frequency, Mean, PK-PK,
Max, Min, Amplitude |
|
|||
|
|
Source
|
|
CH1, CH2
|
|
|||
|
|
Type
|
|
Edge
|
|
|||
|
|
Coupling
|
|
DC, AC
|
|
|||
|
|
Trigger type
|
|
Auto, normal, single
|
|
|||
|
|
Trigger electrical level range
|
|
±4 divs from the center of the screen
|
|
|||
|
|
Trigger electrical level accuracy
|
|
±0.3 div
|
|
|||
|
|
Trigger displacement
|
|
According to Record length and time base
|
|
|||
|
|
Edge trigging
|
Slope
|
Rising edge, falling edge
|
|
|||
|
Basic function
|
Range
|
Minimum resolution
|
Accuracy
|
||
|
|
200.00mV
|
0.01mV
|
±(0.3%+10dig)
|
||
|
|
2.0000V
|
0.1mV
|
±(0.3%+5dig)
|
||
|
|
20.000V
|
1mV
|
|
||
|
|
200.00V
|
0.01V
|
|
||
|
|
1000.0V
|
0.1V
|
|
||
|
|
200.00mV
|
0.01mV
|
±(0.8%+10dig)
|
||
|
|
2.0000V
|
0.1mV
|
|
||
|
|
20.000V
|
1mV
|
|
||
|
|
200.00V
|
0.01V
|
|
||
|
|
750.0V
|
0.1V
|
±(1%+10dig)
|
||
|
|
frequency range:40Hz-1000Hz
|
|
|
||
|
|
200.00mA
|
0.01mA
|
±(0.8%+10dig)
|
||
|
|
10.000A
|
1mA
|
±(2.5%+10dig)
|
||
|
|
Overload protection:
mA function: self-healing fuse 400 mA/250 V; Ampere function: 10A/600 V, D5.2*20, fast-acting fuse |
|
|
||
|
|
200.00mA
|
0.01mA
|
±(1%+10dig)
|
||
|
|
10.000A
|
1mA
|
±(2.8%+10dig)
|
||
|
|
frequency range:40Hz-1000Hz
Overload protection: mA function: self-healing fuse 400 mA/250 V; Ampere function: 10A/600 V, D5.2*20, fast-acting fuse |
|
|
||
|
|
200.00Ω
|
0.01Ω
|
±(0.8%+10dig)
|
||
|
|
2.0000kΩ
|
0.1Ω
|
±(0.8%+5dig)
|
||
|
|
20.000kΩ
|
1Ω
|
±(0.8%+3dig)
|
||
|
|
200.00kΩ
|
10Ω
|
|
||
|
|
2.0000MΩ
|
0.1kΩ
|
|
||
|
|
20.000MΩ
|
1kΩ
|
±(1%+3dig)
|
||
|
|
100.00MΩ
|
0.01MΩ
|
±(5%+10dig)
|
||
|
|
20.000nF
|
1pF
|
±(3.0%+10dig)
|
||
|
|
200.00nF
|
10pF
|
|
||
|
|
2.0000μF
|
0.1nF
|
|
||
|
|
20.000μF
|
1nF
|
|
||
|
|
200.00μF
|
10nF
|
|
||
|
|
2.0000mF
|
0.1uF
|
|
||
|
Others
|
On/Off test
|
√ (<50Ω)
|
|
||
|
|
Diode test
|
√(<0-2V)
|
|
||
|
|
Auto range
|
√
|
|
||
|
|
TRMS
|
√
|
|
||
|
Arbitrary Waveform Generator (Optional)
|
|
|
||
|
Characteristics
|
Description
|
|
||
|
Waveform Frequency
|
Sine
|
0.1Hz~25MHz
|
||
|
|
Square
|
0.1Hz~5MHz
|
||
|
|
Ramp
|
0.1Hz~1MHz
|
||
|
|
Pulse
|
0.1Hz~5MHz
|
||
|
|
EXP
|
0.1Hz~5MHz
|
||
|
Sampling
|
125MSa/s
|
|
||
|
Amplitude(50Ω)
|
0.01Vpp ~ 2.5Vpp
|
|
||
|
DC offset(High Z)
|
±(2.5V – Amplitude Vpp/2)
|
|
||
|
Frequency Resolution
|
0.01%
|
|
||
|
Channel
|
1
|
|
||
|
Waveform Depth
|
8k
|
|
||
|
Vertical Resolution
|
14 bit
|
|
||
|
Output Impedance
|
50 Ω
|
|
||
