- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
1%
-
Driven Type:
-
Electric+pneumatic
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
1020x340x340mm
-
Weight:
-
40 KG
-
filling nozzle number:
-
1/2
-
volume counting way:
-
by air cylinder
-
filling nozzle anti-drip device:
-
honey filling machine has
-
touching part material:
-
304ss
-
cooperated equipment:
-
air compressor
-
working air pressure:
-
0.4-0.6Mpa
-
volume setting:
-
by moving the knob
-
honey filling machine application:
-
any paste/cream material without grain
-
ketchup filling machine range:
-
10-100ml,50-500ml,100-1000ml,260-2600ml,500-3500ml,1000-5000ml
-
sauce filling machine Function:
-
volume couting--filling
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Milk, Water, Juice
-
Filling Accuracy:
-
1%
-
Driven Type:
-
Electric+pneumatic
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
1020x340x340mm
-
Weight:
-
40 KG
-
filling nozzle number:
-
1/2
-
volume counting way:
-
by air cylinder
-
filling nozzle anti-drip device:
-
honey filling machine has
-
touching part material:
-
304ss
-
cooperated equipment:
-
air compressor
-
working air pressure:
-
0.4-0.6Mpa
-
volume setting:
-
by moving the knob
-
honey filling machine application:
-
any paste/cream material without grain
-
ketchup filling machine range:
-
10-100ml,50-500ml,100-1000ml,260-2600ml,500-3500ml,1000-5000ml
-
sauce filling machine Function:
-
volume couting--filling
Products Description

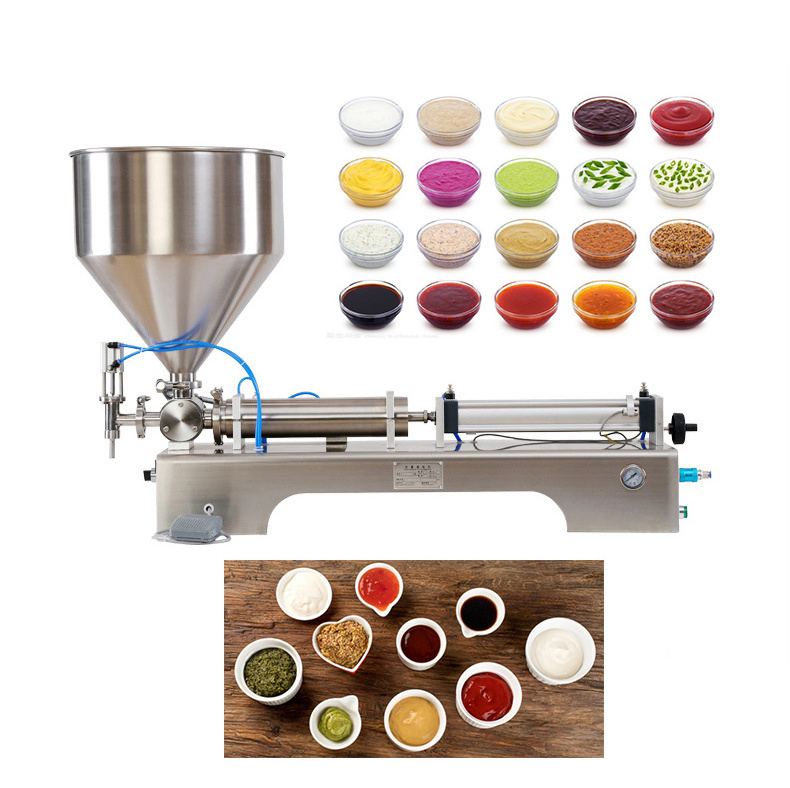

horizontal piston pump semi automatic paste shampoo cosmetic cream manual filler jam honey ketchup tomato sauce filling machine
1.C
ream semi automatic filling machine
adopts air cylinder measuring mode and compressed air as the power to work.
2. Semi automatic filling machine tomato paste touching part 304 stainless steel, corrosion resisting, compact structure with easy operation.
3. Filling capacity of the manual shampoo filling machine can be adjusted easily.
4. The cylinder counting manual jam filling machine can work automatically or controlled by a operation pedal.
5.desktop filler machine paste sauce widely used for fill kinds if cream/paste, such as oil, shampoo, sauce, cream, jam etc. The tomato paste filling machine is widely used in the chemical industry, food, cosmetic, medicine field.
6. This pneumatic manual cream filling machine has single head, double heads, four nozzles model for your option. Also has full pneumatic model, model with mixing, heating function. Any speical need, pls contact in advance.
|
model
|
KSGY
|
|
nozzle number
|
1/2/4
|
|
voltage
|
220v
|
|
power
|
50w
|
|
speed
|
10-25times/min/nozzle
|
|
working way
|
pneumatic
|
|
precision
|
≤± 1%
|
|
touching part material
|
304stainless steel
|
|
filling range
|
10-100ml/30-300ml/50-500ml/100-1000ml/250-2500ml/300-3000ml/500-5000ml
|
|
weight
|
40Kg
|
|
cooperated equipment
|
air compressor
|
manual shampoo filling machine single nozzle and double nozzle for option
tomato paste honey
filling machine
with volume data show for option
manual cream filling machine parts description
desktop
paste sauce
filling machine
parts storage house
tomato paste
filling machine
cylinder part
manual cream filling machine
cylinder parts
semi automatic shampoo cream filling machine
machine shell
manual cream jam filling machine
suitable material to work with
Customer Comment
About Us
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, it been certified as Manufacture by Aibaba. Machine is made by ourselves and we can provide customize service according to different customer requirement.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods is customized, it is according to mould and quantity.
Q:What about your warranty?
A:1 year guarantee, all machine parts can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment≥1000USD, 30% T/T as deposit ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after-sale service. We will solve any problem you meet during the installation and production in time, guide you comprehensive guidance in 24hours.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made.
