Quick Details
-
Grounding Strap:
-
Copper
-
Voltage:
-
50Hz 30kv
-
Grounding Wire Size:
-
AW6 / 16mm2
-
Jump Ring:
-
SUS304
-
Single Hole Cable Lug:
-
Copper, Tin-plated
-
Grounding Resistance:
-
≤ 4mΩ
-
Insulation Resistanc:
-
500mΩ
Quick Details
-
Brand Name:
-
ZD
-
Model Number:
-
ZD-GK-78
-
Place of Origin:
-
Guangdong, China
-
Grounding Strap:
-
Copper
-
Voltage:
-
50Hz 30kv
-
Grounding Wire Size:
-
AW6 / 16mm2
-
Jump Ring:
-
SUS304
-
Single Hole Cable Lug:
-
Copper, Tin-plated
-
Grounding Resistance:
-
≤ 4mΩ
-
Insulation Resistanc:
-
500mΩ

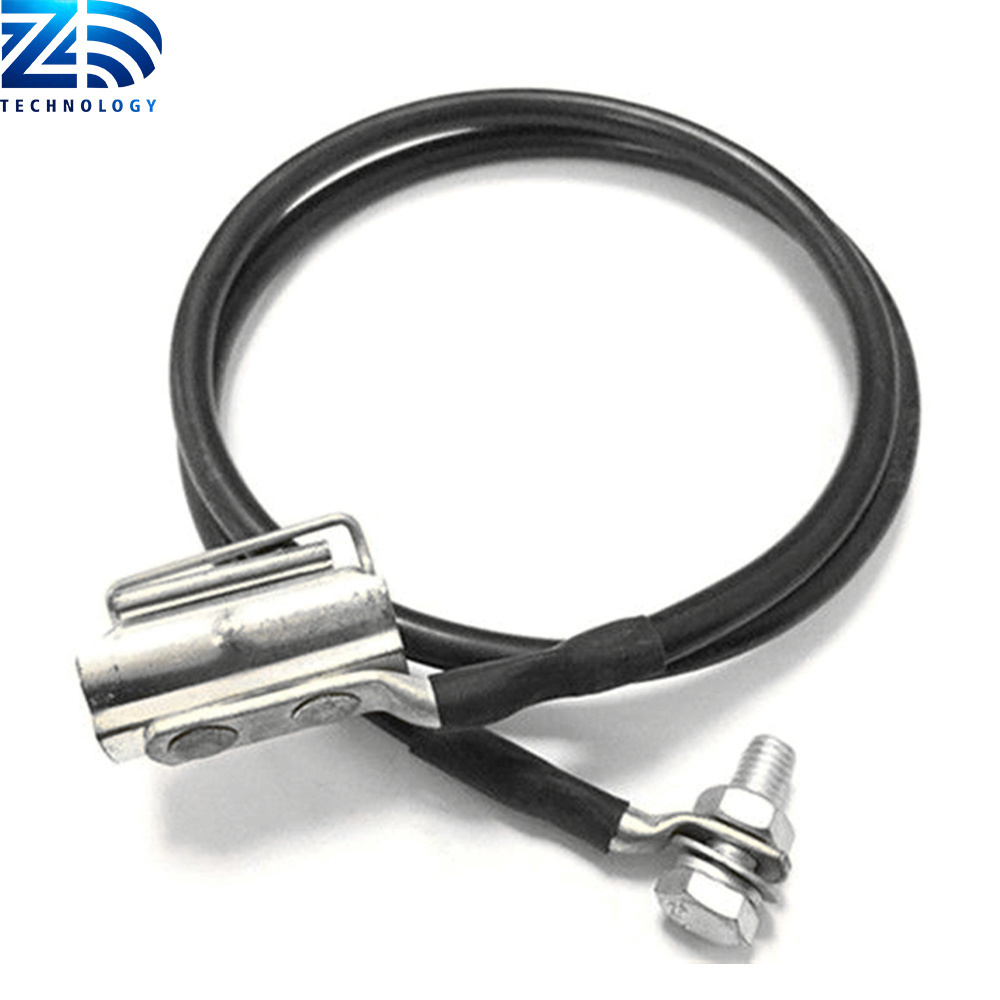

7 / 8" Coaxial Cable Grounding Kit For Telecom Cable Spring Clamp Strap Type
Piece parts Materials
Jump ring Stainless steel SUS304
Grounding strap Copper
Rivet /Bolt kit Copper/ Stainless steel SUS304
Cable lug M6 Copper, Tin-plated
Heat shrinkable tube Polyolefin
Grounding cable 16mm2 Copper (Conductor)
PVC (Jacket), Black
Single hole Cable lug M8 Copper, Tin-plated
Bolt M8×25 Stainless steel SUS304,passivation
Nut M8 Stainless steel SUS304,passivation
Spring washer 8 Stainless steel SUS304,passivation
Plain washer 8 Stainless steel SUS304,passivation
Sealing Chinamade tape and clay
| Mech a nical spec ifications | |
| Contact Resistance | ≤4mΩ |
| Insulation Resistance | 500MΩ |
| Nominal Impulse Discharge Current | 80KA |
| Working Voltage | 450v |
| Packing | |
| Packing status | Assembled |
| Label | Logo + drawing + barcode |
| Packing quantity | 1 pcs in plastic bag |
| Packing detail | Plastic bag + carton + pallet |
Quick Details
Place of Origin:Shenzhen, China (Mainland)
Brand Name:ZD
Model Number:grounding kit
Inner contact:Tinned copper braid strap
Grounding clamp:304 stainless steel
Seal strip:Butyl seal strip (each side)
Cable Type:Standard - 1/4
Copper plugs:Tinned copper plugs
Installation accessories:Inner hex bolts for quick installation
Nominal impluse discharge current:70 KA
Insulation resistance:500 MΩ
Contact resistance:≤ 2 mΩ
Grounding wire length:Standard: 0.5 m, 1 m, 2 m, 3 m
Grounding kits, Stainless Steel Hanger, indoor and outdoor grounding kits series, frame work type grounding kits, spring type
Size: outdoor grounding kit for 7/8" 1m/ 1.5m cable, outdoor grounding kit for 1-1/4" 1m/ 1.5m cable, outdoor grounding kit for 1-5/8" 1m/ 1.5m cable.
Grounding kits, which are used for the grounding of RF feeder, Standard, Sure Ground and Sure Ground Plus, We use brass as the grounding conductor, which has high current handling and good heat exchanger capability.
We have Spring type Grounding Kits, Clamp-Strap type Grounding Kits, Framework type Grounding Kits, Indoor Grounding kit, Hoisting grip and etc...
ZD supply RF connector, N connector, 7/16 connector, RF adapter, superflexible cables jumper, flexible cables jumper, RF Jumper cable, feeder clamp, through type clamp, suspend hamulus type stainless steel hanger, two hole type hanger, anchor ear type stainless steel hanger, cable clamp, grounding kit, spring type grounding kits, clamp-strap type grounding kits, copper strap type grounding kits, indoor grounding kits, cable entry, wall entry, aluminium alloy wall / roof feed thru plate, cable entry boot, adjustable diameter wall feeder through, grounding bar...
If you have any inquiries, please don't hesitate to contact us.
| Product | Description | Part No. |
|
Click-on Type
including butyl and electric tape |
for 1/4" coaxiable cable | ZD-GK-C-1/4 |
| for 1/2" coaxiable cable | ZD-GK-C-1/2 | |
| for 7/8" coaxiable cable | ZD-GK-C-7/8 | |
| for 1-1/4" coaxiable cable | ZD-GK-C-5/4 | |
| for 1-5/8" coaxiable cable | ZD-GK-C-13/8 |
