Quick Details
-
Rolling thinckness:
-
1.5-3.0mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Wow
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
8000*1600*1300mm
-
Weight:
-
9800 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Purlin Roll Forming Machine
-
Main frame:
-
350H Steel
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Cutting type:
-
Hydraulic Cutting
-
Color:
-
Cllent's Request
-
After-sales Service Provided:
-
Engineers
-
After Warranty Service:
-
Video Technical Support.Online Support
-
Feature:
-
High Production Speed
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
1.5-3.0mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Wow
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
8000*1600*1300mm
-
Weight:
-
9800 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Purlin Roll Forming Machine
-
Main frame:
-
350H Steel
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Cutting type:
-
Hydraulic Cutting
-
Color:
-
Cllent's Request
-
After-sales Service Provided:
-
Engineers
-
After Warranty Service:
-
Video Technical Support.Online Support
-
Feature:
-
High Production Speed

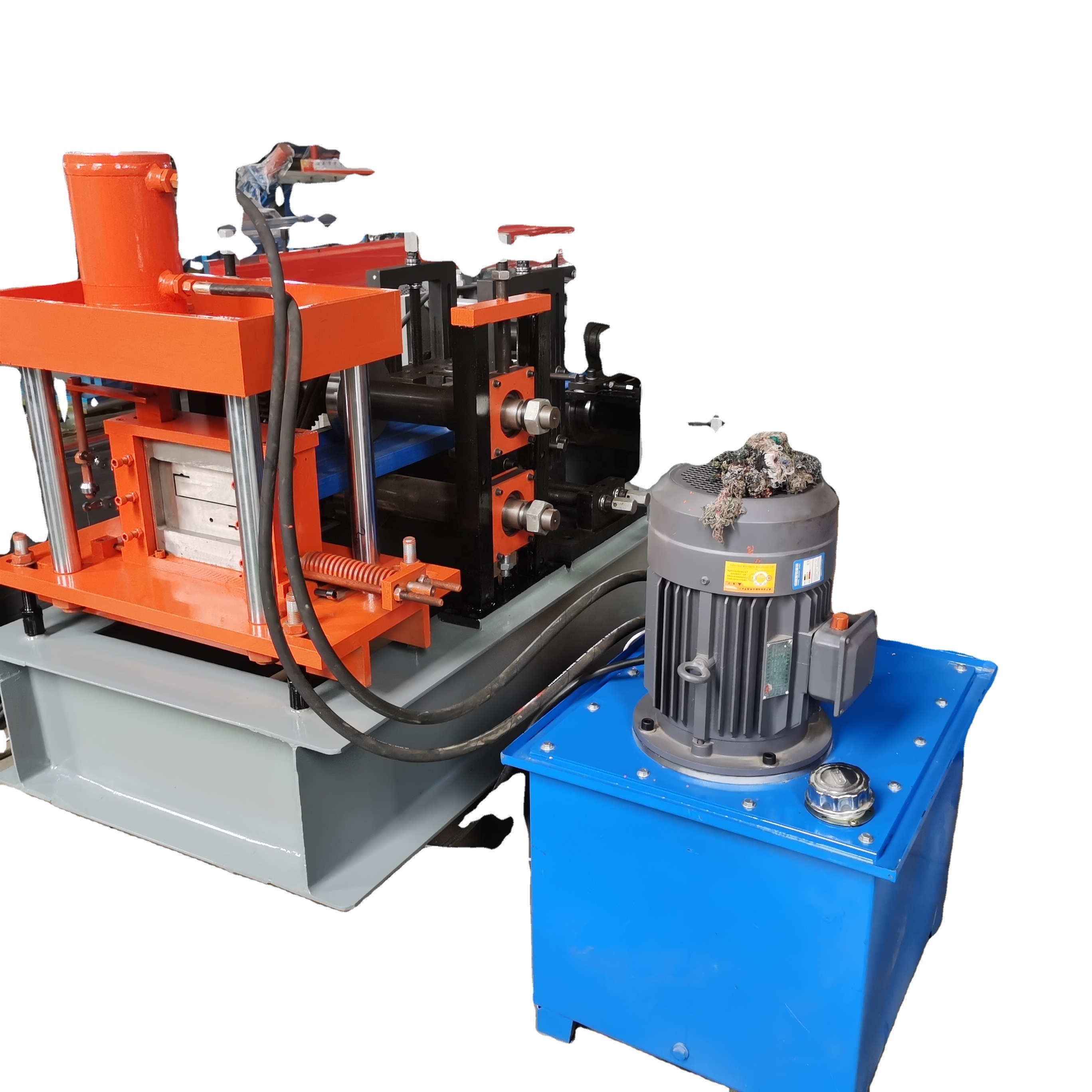

Automatic Type Change C/Z Purlin Cold Roll Forming Machine
The Purlin Roll Forming Machine can make C, Z and U profile in one machine. Controlled by PLC,the size changing and C to Z changing by one key.Using Hydraulic hydraulic motor, the machine can roll the thick material , Max thickness 4mm (6 gauge)and save the working power and labor at the same time.
Our Advantages:
Perfect Quality
High Productivity
Low Consumption
One-Stop Service
Long Life Maintance
Product Pictures:
Main Parameter: ( All technical parameters can be changed,according to customer's need.)
|
Product Name |
Purlin Roll Forming Machine |
|
Material thickness (mm) |
1.5 ~ 3 mm |
|
Material yield stress (Mpa) |
230~550 |
|
Max. forming speed (m/min) |
12~15 |
|
Roller material |
45# steel with chrome treatment |
|
Roller driven type |
Chain transmission |
|
Controller & operation |
PLC & touch screen and button |
|
Hydraulic system pressure (Mpa) |
12 |
|
Hydraulic cutting power (Kw) |
22kw |
|
Main structure of the machine |
350 H steel |
|
Voltage |
380V 50Hz 3phases(changeable as needs) |
|
Total weight (Kgs) |
About 10 t |
Profile Drawing:
Application Of the Profiles:
