Quick Details
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Color:
-
as request
-
Advantage:
-
High Performance
-
Market:
-
Globe
-
MOQ:
-
1 set
-
Packing:
-
Standared Package
-
Usage:
-
solid control system
-
Application:
-
Liquid, Drilling Fluid Solids Control
-
Standard:
-
International
Quick Details
-
Weight (KG):
-
200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Great petrol
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Color:
-
as request
-
Advantage:
-
High Performance
-
Market:
-
Globe
-
MOQ:
-
1 set
-
Packing:
-
Standared Package
-
Usage:
-
solid control system
-
Application:
-
Liquid, Drilling Fluid Solids Control
-
Standard:
-
International

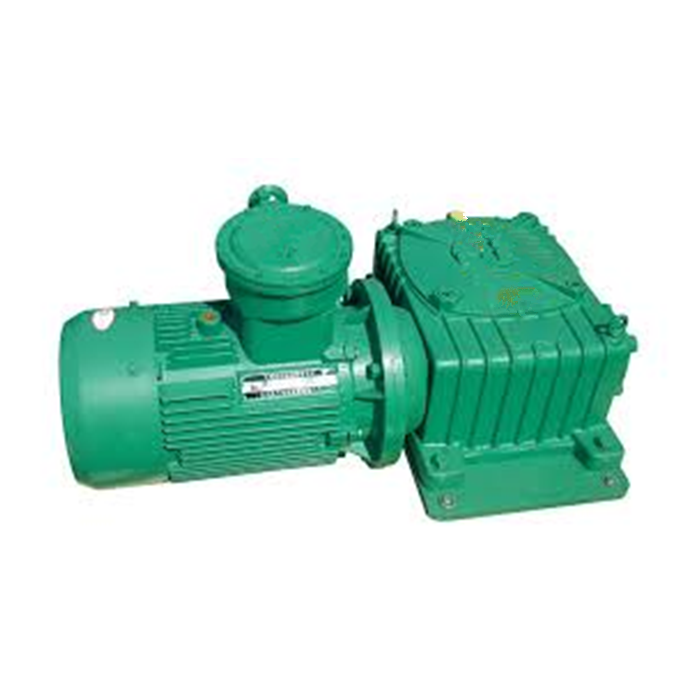

M ud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling.
|
SPECIFICATION FOR MUD AGITATOR |
|||||||
|
Model |
|
JBQ 40 |
JBQ 55 |
JBQ 75 |
JBQ 110 |
JBQ 150 |
JBQ 220 |
|
Motor Power (KW) - Grade 4 |
|
4 |
5.5 |
7.5 |
11 |
15 |
22 |
|
Motor rated speed |
50Hz |
1430 |
1450 |
1450 |
1460 |
1460 |
1470 |
|
60Hz |
1716 |
1740 |
1740 |
1752 |
1752 |
1764 |
|
|
Impeller Speed (rpm) |
50Hz |
72 |
72 |
72 |
73 |
73 |
73 |
|
60Hz |
69 |
69 |
69 |
70 |
70 |
70 |
|
|
Impeller Diameter (mm) |
Double |
500 |
650/600 |
700/650 |
800/700 |
850/750 |
1000/900 |
|
single |
650/700 |
800 |
850 |
900 |
/ |
||
|
Reduction ratio |
50Hz |
1:20 |
|||||
|
60Hz |
1:25 |
||||||
|
Shaft Length (mm) |
Double |
1100 |
1100 |
1800/2100 |
1800/2100 |
1800/2100 |
1800/2100 |
|
Single |
1500 |
1500 |
1500 |
/ |
|||
|
The length of Agitating shaft could customized according to the tank's depth |
|||||||
|
Weight (kg) |
|
191 |
275 |
287 |
366 |
459 |
738 |
|
External dimension (mm) |
|
890×500×518 |
1020×600×576 |
1040×600×576 |
1180×660×663 |
1280×710×673 |
1428×860×730 |
|
Remark |
All weight and external dimension excluding Agitating shaft |
||||||
