Quick Details
-
Brand Name:
-
yulongxin
-
Model Number:
-
DPA-1
-
Max. Working Pressure:
-
10Bar
-
IP level:
-
IP65
-
Name:
-
AUTOMATIC PUMP CONTROL
-
Rated Voltage:
-
100-240V
-
Max Power:
-
2.2kw
-
Max Current:
-
30A
-
Max Pressure:
-
10Bar
-
Application:
-
Pressure Control System
-
Frequency:
-
50/60Hz
-
Color:
-
Picture Shown
-
Material:
-
Plastic
-
Type:
-
Electrical
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
240v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yulongxin
-
Model Number:
-
DPA-1
-
Max. Working Pressure:
-
10Bar
-
IP level:
-
IP65
-
Name:
-
AUTOMATIC PUMP CONTROL
-
Rated Voltage:
-
100-240V
-
Max Power:
-
2.2kw
-
Max Current:
-
30A
-
Max Pressure:
-
10Bar
-
Application:
-
Pressure Control System
-
Frequency:
-
50/60Hz
-
Color:
-
Picture Shown
-
Material:
-
Plastic
-
Type:
-
Electrical
Recommend Products
Products Description

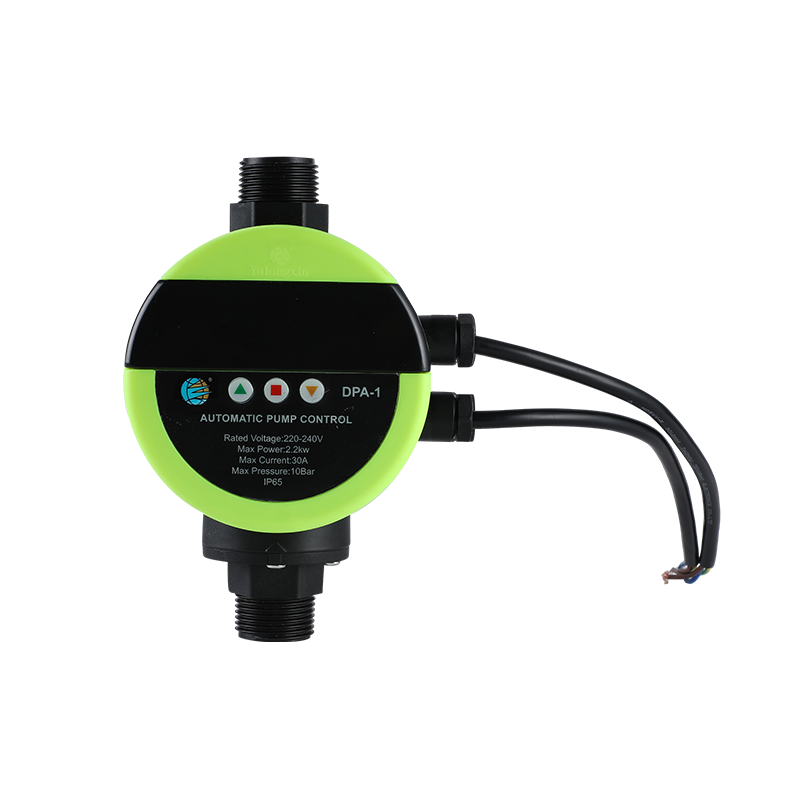

Non Adjustable Intelligent Water Pump Pressure Switch
This Switch Adopts New Pressure Sensor Technology And Intelligent Chips To Achieve Pressure Control Dual Function With Flow Control. This Model Of Switch Is Suitable For All Self Priming Pumps, Jet Pumps, And Some Centrifugal Pumps On The Market.
There Are Two Ways To Start The Switch:
Note
: During The First Installation And Use, The Water Pump Will Be Turned On Again After The Faucet Is Turned Off And The Water Pump Stops Start Using.
Main Function Introduction:
1. The Switch Can Intelligently Read The Pressure During The Operation Of The Water Pump And Automatically Set The Stop Pressure. No Need For Manual Intervention. (The Switch Will Read The Maximum Pressure Value Of The Water Pump During Operation V. If There Is A Change In Water Pressure, The Switch Will Reset Itself.) Water Discharge Detection
Function, When The User Uses Water, Turn On The Faucet And The Water Pump Will Start Immediately
Function, When The User Uses Water, Turn On The Faucet And The Water Pump Will Start Immediately
There Are Two Ways To Start The Switch:
① When The User Releases Water Normally, The Pressure Drops Suddenly To Start Immediately:
② When There Is Water Leakage In The Pipeline, It Will Start At The Lower Limit Value:
② When There Is Water Leakage In The Pipeline, It Will Start At The Lower Limit Value:
2. Water Shortage Protection Function, The Water Pump Will Automatically Stop When There Is A Water Shortage, And Users Only Need To Turn It Off The Valve Is Sufficient, And It Will Automatically Return To Normal After Receiving Water.
3. When Using Tap Water Environment, If The Water Pressure Changes, The Switch Will Also Automatically Operate Make Corresponding Adjustments. Ensure That The Water Output Will Not Be Too Large Or Too Small When Using Water.
4. Water Pump Fault Detection, Switches Display Various Faults In Code Form. For Users Solve The Problem. (Almost Covering All The Problems Encountered In Household Pumps)
5. Fault: Water Pump Fault Detection, Switch Displays Various Faults In Code Form.
So That Users Can Solve Problems.
|
H20
|
Lack Of Water, Or Impeller Stuck, There Is Air Leakage At The Inlet.
|
|
|
|
|||
|
SEN
|
If The Voltage Exceeds 265v And Falls Below 245, Resume Operation.
|
|
|
|
|||
|
EUH
|
The Voltage Is Below 90v. Restore Operation Above 95.
|
|
|
|
|||
|
ESL
|
After Three Leaks, The Alarm Will Not Automatically Recover. Please Cut Off The Power And Check If There Is Any Water Leakage In
The Pipeline. |
|
|
|
|||
|
OFF
|
Current Shutdown (May Occur During Early Pressure Collection Or When Long Pressing The Pause Button To Pause).
|
|
|
|
|||
|
Brand &logo
|
|
BW
|
|
|
|||
|
MOQ
|
|
500
|
|
|
|||
|
Max. Current
|
|
30A
|
|
|
|||
|
Rated Voltage
|
|
100-240V
|
|
|
|||
|
Max. Working Pressure
|
|
10Bar
|
|
|
|||
|
Application
|
|
Water Pump
|
|
|
|||
|
Frequency
|
|
50/60Hz
|
|
|
|||
|
Payment
|
|
Alibaba,T/T,PAYPAL...
|
|
|
|||
|
Sampletime
|
|
2-4 working days for current model, 10-15 working days for customized models
|
|
|
|||
