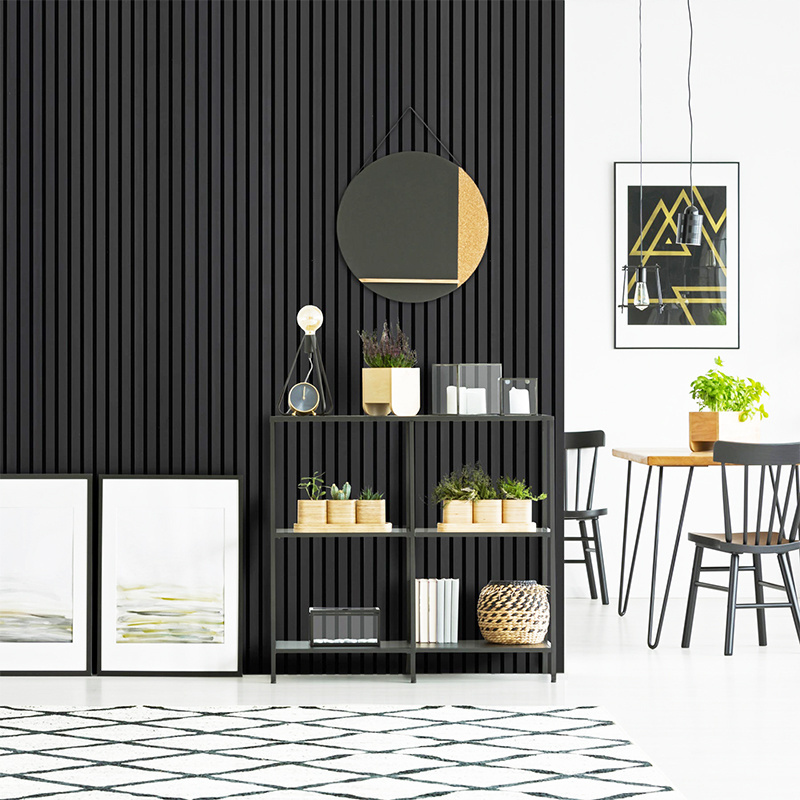

Our PET Slats Acoustic Panel can be used for creating beautiful slat walls and ceilings which adds a modern look to the room.
The panel is sound dampening and removes reverberation within the room, which drastically improves the acoustics within the room.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Meeting room, office, Hotel, studio, cinema, music room, office
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Runsheng
-
Model Number:
-
RS-P001
-
Product name:
-
Recycled PET laminated MDF panels wood slatted acoustic panel
-
Base Material:
-
Fire resistant Polyester Fiber
-
Color:
-
grain of the wood , customized available
-
Thickness:
-
9mm/12mm/15mm/20mm,25mm
-
NRC:
-
>0.85
-
Certification:
-
TUV, INTERTEK, OKEO 100
-
Installation:
-
easy
-
Environmental:
-
Eco-friendly
-
Shape:
-
Rectangle triangle hexagon or custom
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Meeting room, office, Hotel, studio, cinema, music room, office
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Runsheng
-
Model Number:
-
RS-P001
-
Product name:
-
Recycled PET laminated MDF panels wood slatted acoustic panel
-
Base Material:
-
Fire resistant Polyester Fiber
-
Color:
-
grain of the wood , customized available
-
Thickness:
-
9mm/12mm/15mm/20mm,25mm
-
NRC:
-
>0.85
-
Certification:
-
TUV, INTERTEK, OKEO 100
-
Installation:
-
easy
-
Environmental:
-
Eco-friendly
-
Shape:
-
Rectangle triangle hexagon or custom
Quick Details
|
Product Name
|
3D panel wall mdf wood decorative wall panels wood slat pet acoustic panels
|
|
|
|
|||
|
Material
|
100% Polyester Fiber
|
|
|
|
|||
|
PET Slats Thickness
|
12mm
|
|
|
|
|||
|
PET Backing Thickness
|
9mm
|
|
|
|
|||
|
Finish
|
Printed wood grain
|
|
|
|
|||
|
Size
|
2400*600*21 mm/ 3000*600*21 mm/Customized
|
|
|
|
|||
|
Fire rating
|
SGS -ASTM E84 CLASS A, TUV- EN 13501 CLASS B
|
|
|
|
|||
|
Application
|
Studios, home theaters, music halls, schools, offices, KTV
|
|
|
|
|||
|
Certification
|
SGS, TUV, INTERTEK
|
|
|
|
|||
Products Description
PET Slats PET Backing Acoustic Panel
Our PET Slats PET Backing Acoustic Panels have been carefully designed to effortlessly transform any space, enhancing the surroundings both visually and acoustically.
The wood panels help to create an environment that is not only quiet but beautifully contemporary, soothing and relaxing.
The panels not only offer aesthetic refinement and superior acoustic dampening, but they are also produced using only environmentally friendly materials. All of the materials are sourced from certified sustainable sources— a complete environmentally friendly product.
Simply screw the panels straight into the wall, using the correct fixings, through the acoustic felt or if you are looking to increase the sound properties further, screwing them into batons. If installing on ceilings, the panels can be screwed straight into ceiling joists.
* Available in 2400mm to 3000mm Lengths
* 600mm Wide
* 21mm Deep
* Each slat is 27mm wide and 12mm deep
* There are 15 slats on each panel
* The PET felt backing is 9mm deep
* Polyester core with Veneered Oak Face
* Panel weight is 5kg
* 600mm Wide
* 21mm Deep
* Each slat is 27mm wide and 12mm deep
* There are 15 slats on each panel
* The PET felt backing is 9mm deep
* Polyester core with Veneered Oak Face
* Panel weight is 5kg
Product applications
Installation Methods
Installation- Method One
1. You can easily install the
PET Slats Acoustic Panel
directly to the wall with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
2. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
2. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Installation- Method Two
1. Install 45mm (thickness) battens directly to your wall/ ceiling with a distance of 600mm.
2. Install the PET Slats Acoustic Panel directly on to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
3. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
2. Install the PET Slats Acoustic Panel directly on to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
3. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Installation- Method Three
1. Install 45mm (thickness) battens directly to your wall/ceiling with a distance of 600mm.
2.Place 45mm insulation between the studs.
3. Install the panels directly to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
2.Place 45mm insulation between the studs.
3. Install the panels directly to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
4. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Packing&shipping
