Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
YX1208A
-
Storage:
-
Max. 32G
-
Camera:
-
720 x 480 ( WDR )
-
Video:
-
AVI (h.264 code: VGA / 30fps)
-
Operating Temperature:
-
-40℃ ~ 85℃
-
CPU:
-
Cortex A7 Dual-Core
-
Input:
-
USB 2.0
-
Output:
-
Analog Video Out, GPS port, Micro SD Card
-
Features:
-
Auto
Quick Details
-
Function:
-
anti collision system
-
Control Distance:
-
60-80m
-
Frequency (MHz):
-
433.92MHz
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
YX1208A
-
Storage:
-
Max. 32G
-
Camera:
-
720 x 480 ( WDR )
-
Video:
-
AVI (h.264 code: VGA / 30fps)
-
Operating Temperature:
-
-40℃ ~ 85℃
-
CPU:
-
Cortex A7 Dual-Core
-
Input:
-
USB 2.0
-
Output:
-
Analog Video Out, GPS port, Micro SD Card
-
Features:
-
Auto
Auto Safety System Forward Proximity Warning Sensor Car Anti Collision Alarming System
Why we need ADAS?
Yuxunion intelligent ADAS solution for fleet safety is an Industry-wide Innovation. It adopts dual-camera design, one for forward collision avoidance and another for driver fatigue monitor. Based on artificial vision technology, this solution can enhance the fleet safety for real and provide totally different driving experience.
Specification:
|
Brand |
Yuxunion |
|
Model |
YX1208A |
|
Release Time |
July 2017 |
|
Device Dimension |
1 68 * 152 * 46.5 mm |
|
OS |
Android |
|
CPU Frequency |
1.2GHz |
|
GPU |
√ |
|
RAM |
2GB |
|
ROM |
16GB |
|
SD Card Slot |
Support 128GB SD card at max |
|
SIM Card Slot |
Support micro-SIM card |
|
Mobile Networks ( optional ) |
Global coverage 4G LTE/3G WCDMA/2G GSM |
|
WiFi Hotspot |
2.4GHz, IEEE 802.11b/g/n |
|

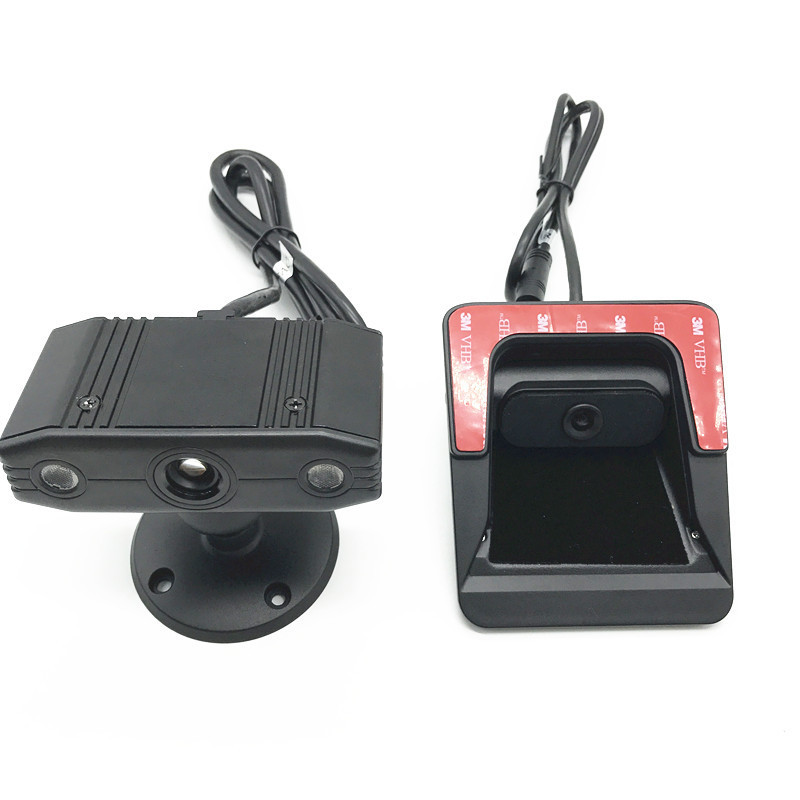

Forward Facing ADAS Camera |
640*480, 50 degree FoV, adjustable visual angle |
|
Driver Facing DBM Camera |
640*480, infrared , adjustable visual angle |
|
DVR Camera |
1280*720, 130 degree FoV (accept customization) |
|
DVR Camera 2 |
1280*720, 130 degree FoV (accept customization) |
|
Sensors |
GPS, G-sensor, gyro |
|
Loudspeaker |
Built in the forward facing ADAS camera |
|
Video Output |
RCA (male), CVBS /VGA |
|
RJ45 |
Yes |
|
Digital Input |
4 |
|
Digital Output |
4 |
|
CANBUS Interface |
Yes |
|
RS232 Serial Port |
Yes |
|
RS 485 Serial Port |
Yes |
|
Operating Current |
0.5 A ~ 2A |
|
Operating Voltage |
8V ~ 32V DC |
|
Operating Temperature |
-20℃ ~ + 85 ℃ |
|
Protection Level |
IP40 |
|
Packing list |
Neutral packing box*1 ADAS device*1 Forward facing ADAS camera*1 Driver facing DBM camera*1 DVR camera* 1 Connecting wire*1 External GPS antenna*1 External 4G antenna*1 Connecting wire*1 |
|||
Product Details:
Standard Features:
Forward Collision Warning
Judging from the relative time to collision (TTC) , the system will warn the driver when the host vehicle is too close to the vehicle ahead, allowing him to take measures in time. FCW has 2 levels : level 1 means the vehicle ahead is too close and level 2 means the vehicle ahead is extremely dangerous.
Start S peed: vehicle speed > 15km/h)
Pedestrian Collision Warning
The system will notify the driver of a pedestrian/ cyclist/ motorcycle driver in the danger zone, and alert drivers of an imminent collision with a pedestrian, cyclist or motorcycle driver. Note that PCW also has 2 levels and PCW feature will be closed from 20:00 PM to 06:00 AM.
Start S peed: 1km/h < vehicle speed < 30km/h
Lane Departure Warning
When the vehicle is veering off the current road lane without turning on cornering lamp, the system will issue an alert to driver. Note that LDW system can detect both full line and dotted line. Also the system can detect if it ’ s left or right lane departure event.
Start S peed: vehicle speed > 50km/h
Abnormal Driver F ace State Warning
Based on a driver facing infrared camera and advanced technology, the system can understand driver’s basic face states. When it detects a n abnormal driver face state event , it will issue an alert to driver. Recognizable facial behaviors as below:
- Driver eye closed (1 second as level 1 and 2 seconds as level 2)
- Driver yawn ing (0.8 second)
- Driver distracted (4 seconds)
- Driver smoking (0.5 second)
- Driver on the phone (5 seconds after keeping the gesture of calling)
- No driver face detected (20 seconds)
Note that the time interval for same type of abnormal driver face state warning is 10 seconds .
Start
S
peed: vehicle speed >
1
0km/h
Driving Video Recording
Record every moment while driving and save the videos inside the SD card. Users can remove the SD card to obtain the videos or use App to download the videos from TF card to Android smartphone via YX1208A ’ s WiFi hotspot.
Customization Features:
4G LTE/3G WCDMA Mobile Networks Connection
In-Vehicle 4G/3G WiFi Hotspot
GPS Vehicle Tracking
Triggered Event Photo&Video Uploading
Remote Photo Capturing
Remote Video Monitor
Live Streaming
Hard Braking Detection
Harsh Acceleration Detection
Sharp Cornering Detection
Driver Behavior Analysis
Support More DVR Cameras
