Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
BNS, BNS
-
Model Number:
-
0012, Round or Square
-
Usage:
-
Bluastrade
-
Color:
-
Clear or Mirror
-
Round Tube Size:
-
33.7/38.1/42.4/48.3/50.8
-
cable size:
-
3.2mm,4mm,5mm,6mm,8mm,10mm, 12mm
-
Product name:
-
High quality factory price stainless steel balustrade
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
BNS, BNS
-
Model Number:
-
0012, Round or Square
-
Usage:
-
Bluastrade
-
Color:
-
Clear or Mirror
-
Round Tube Size:
-
33.7/38.1/42.4/48.3/50.8
-
cable size:
-
3.2mm,4mm,5mm,6mm,8mm,10mm, 12mm
-
Product name:
-
High quality factory price stainless steel balustrade

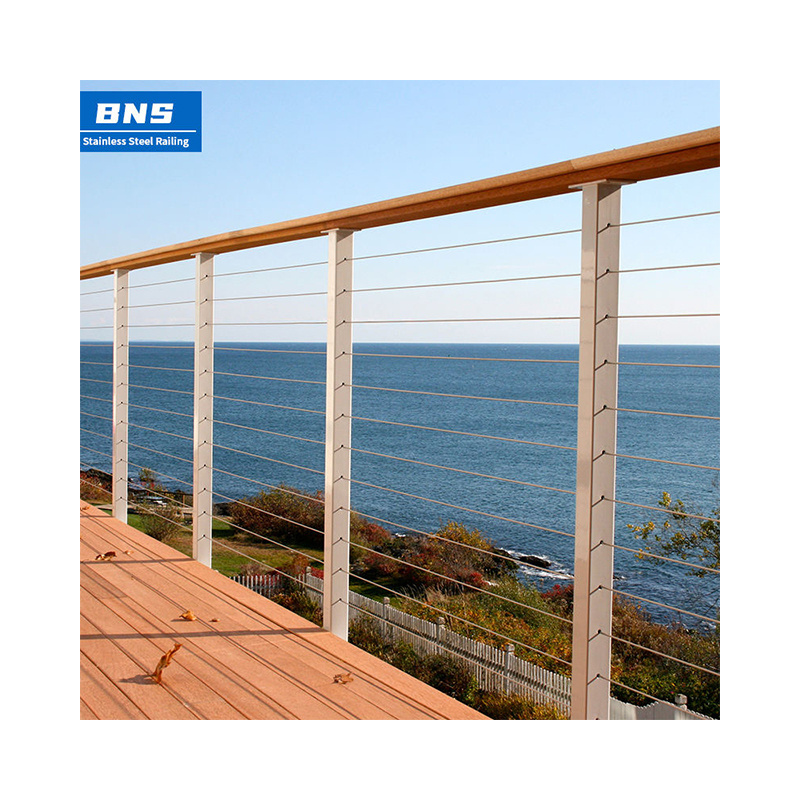

BNS low maintenance outdoor stainless balustrade black cable railing
We also can provide glass railings and stainless railings, you may choose according to the style you like, and we can design the drawings for you free.
cable railing introduction
To install cable railing, secure your posts at the proper spacing. Then, run your cable from the end posts, through the intermediate posts, and to the terminal end post. Next, hand tension the cable to minimize deflection. Repeat these steps for each line of cable. Finally, tighten each cable with an allen wrench until it is taut. Always start your tensioning with the middle run of infill and work outward, alternating between the top and bottom, until you have tensioned all the runs. The 4 inch Sphere Rule is a common building & cable railing code standard. It simply states that a ball with a diameter of 4 inches should not fit between lines of cable. For this reason, we recommend a cable spacing of no more than 3 ⅛ inches. Post spacing plays a crucial role in how much the cables will deflect as well as handrail strength. For this reason, we recommend using posts at most four feet apart.
|
Cable Post Shape
|
Post size
|
Cable Size
|
Cable railing fittings
|
Install
|
Surface
|
Material
|
||||||
|
Round
|
Φ42.4mm
|
3 mm
|
Swage cable railing
|
concrete
|
Satin
|
304
|
||||||
|
Square
|
Φ50.8mm
|
4 mm
|
Swageless cable railing
|
metal
|
Mirror
|
316
|
||||||
|
|
50x50mm
|
5 mm
|
Sleeve cable railing
|
wood
|
Black
|
|
||||||
|
|
|
6 mm
|
|
|
|
|
||||||
|
If you need customization, welcome to contact us!
|
|
|
|
|
|
|
||||||
We can design CAD drawings for you for free！
what our customer say
production
checking
packing
delivery
Certificate
1.Where is your location ?
·We are in Taizhou city,Jiangsu Province.
2.What is your balustrade materials ?
·We use stainless steel 304 or stainless steel 316 or stainless steel 201.
3.What is your MOQ requirments ?
·If you are doing wholesale, each balustrade should be above 30 pieces. If you are doing project, the MOQ length is 20 meters.
4.What is your trade terms service ?
·We can offer EXW, FOB, CNF and CIF service by our shipping agent.
5
.Can you provide samples ?
·Yes, we can. But we have to know your order quantity and the courier cost will be paid by you.
6.What is the standard height of the railing ?
·We should consider two situation.1// Flat railng standard height,1100mm,1200mm or 1300mm from the ground. 2// Staircase railing
standard height,900mm or 950mm from each step.
7.If I have a railing project,Can you come to the site to survey ? Could you make the drawings for us ?
·Yes,we can offer the surveying site and provide the drawings for you. But we have to know the project situation firstly.
8.What is your delivery time ?
·It depents on the order quantity. Normally we can produce 10000 pieces balustrades in one month.
9.If we have a customized drawings design. Can you do it for us ?
·Certainly. We have a CAD drawing teams. If you need revised service,we also can make it for you.
