YFMC-720B/920BManual high speed hot roll laminator Laminating Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Place of Origin:: Zhejiang, China

Brand Name:: NEW STAR

Dimension(L*W*H):: 3250x1180x1230mm

Weight:: 850 KG

Color:: silver

Quick Details

Packaging Type:: Cartons, Barrel, wooden case

Packaging Material:: Plastic, Wood

Driven Type:: Hydraulic

Voltage:: 380V

Place of Origin:: Zhejiang, China

Brand Name:: NEW STAR

Dimension(L*W*H):: 3250x1180x1230mm

Weight:: 850 KG

Color:: silver

Product Overview

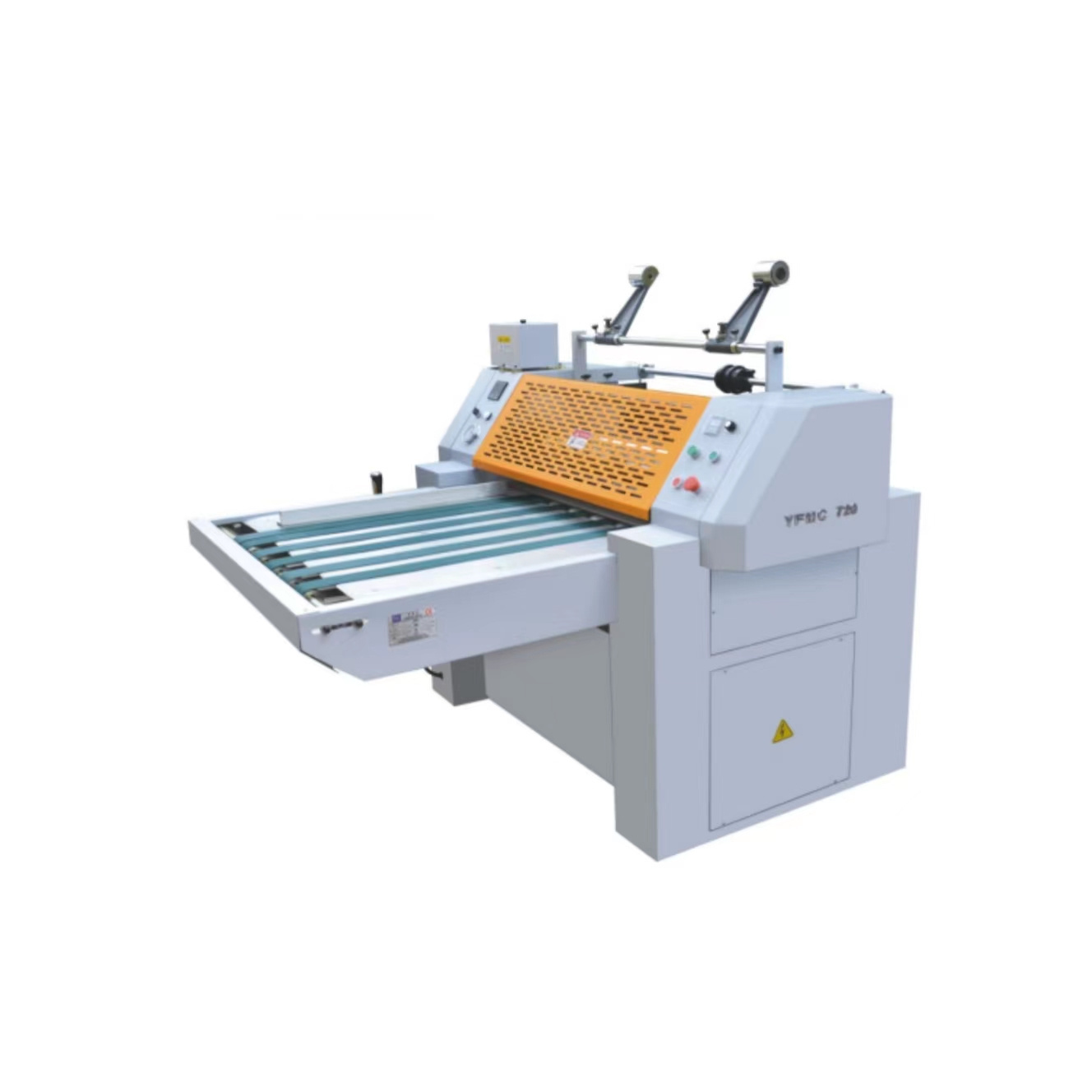

YFMC-720B/920BManual Laminating Machine

·SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily
and guarantee the machine's running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to
temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.

FEATURES AT A GLANCE

• High Speed

• Easy to operate

• Stream feeder

• Servo-controlled pump

• Electromagnetic heating

• Stable and precise

• 1 year warranty

PRODUCT SPECIFICATIONS

No	Item	Data	Data
1	Model	YFMC-720B	YFMC-920B
2	Max paper size(WxL)	620mm	820mm
3	Max LaminatingSpeed	0-30m/min		0-30m/min
4	LaminatingTemperature	60-130C
5	Power	10kw	12kw
6	Voltage	380v	380v
7	Weight of Machine	600kg	700kg
8	Overall dimension	1800x1300x1500mm	1900x1600x1500mm
