Quick Details
-
Applicable Industries:
-
jigsaw puzzle
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGGANG
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
1550*1150*1520mm
-
Weight:
-
2000 kg
-
PLC Brand:
-
Honggang
-
Product name:
-
puzzle cutting machine
-
Application:
-
paper,cardboard,puzzle,plywood,eva,leather
-
Working Area:
-
600*500mm
-
Cutting way:
-
hydraulic cutting
-
cutting force:
-
120 tons
-
dimension:
-
1550*1150*1520mm
-
Motor:
-
3.7kw
-
Netweight:
-
1700kg
-
Keyword:
-
jigsaw puzzle cutting machine
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1400mm
-
Applicable Industries:
-
jigsaw puzzle
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGGANG
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
1550*1150*1520mm
-
Weight:
-
2000 kg
-
PLC Brand:
-
Honggang
-
Product name:
-
puzzle cutting machine
-
Application:
-
paper,cardboard,puzzle,plywood,eva,leather
-
Working Area:
-
600*500mm
-
Cutting way:
-
hydraulic cutting
-
cutting force:
-
120 tons
-
dimension:
-
1550*1150*1520mm
-
Motor:
-
3.7kw
-
Netweight:
-
1700kg
-
Keyword:
-
jigsaw puzzle cutting machine

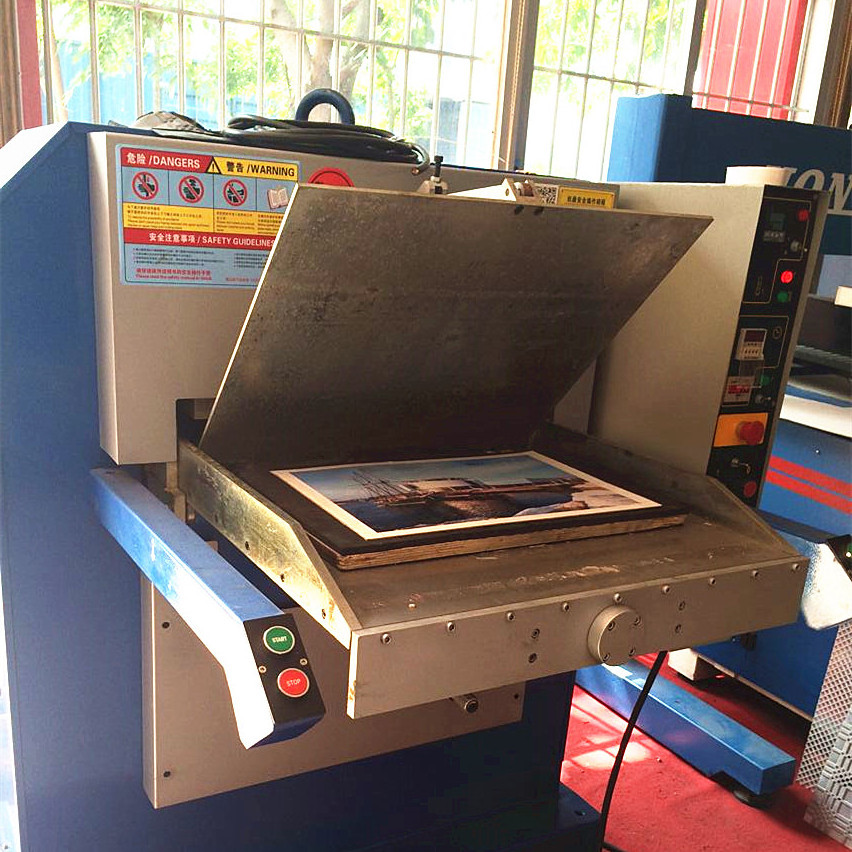

hydraulic high speed jigsaw puzzle die cutting press machine
High speed jigsaw puzzle die cutting machine is special for paper,cardboard,toy puzzle,plywood,eva,leather embossing,polishing,perforating,cutting and so on.
Technical parameters
| cutting area | 600*500mm or customize |
| Voltage | 220V/380V/415V |
| Power | 4.5KW |
| Pressure | 120tons or customize |
| Weight | 2000kg |
| Machine size | 1550*1150*1520mm |
| Warranty time | 1 year |
| certification | CE |
| Model | Pressure | Dimension | Area | Motor | Stroke | Net Weight |
| HG-E40T | 40 Tons | 1010*900*1200mm | 350*300mm | 2 KW | 2kw | 800kg |
| HG-E120T | 12 0 Tons | 1550*1150*1520 mm | 600*500 mm | 3.7 KW | 4.5kw | 1700kg |
| HG-E180T | 18 0 Tons | 1550*1400*1600 mm | 750*600 mm | 3.7 KW | 6kw | 2600kg |
| HG-E250T | 250 tons | 1250*1200*2000mm | 600*700m | 5.5 KW | 14kw | 4200kg |
Feature
1)Processing the materials surface by heating plates or hydraulic pressure.
2)Both manual and automatic feeding available.
3)Heating time,heating temperature,pressure force,feeding rate can be adjusted.
4)With safety device of urgent buttons and double hands working.
5)Easy to set and unload plates,simple to operate.
Specification
1) Saving time when you designated the mould
2) Wide application:varied of dispensing products are acceptable.
3) High productivity,high practicability, high performance price ration.
Finished products sample
