Quick Details
-
Application:
-
soil stabilization, soil stabilization
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, Shandong China
-
Brand Name:
-
Shengxing
-
Model Number:
-
TGGS-49
-
Product name:
-
HDPE Geocell for Slope Protection Project in Denmark
-
Tensile Strength of Connection:
-
>100N/cm
-
Height:
-
50~250mm
-
Thickness:
-
1.0~1.7 mm
-
Lifespan:
-
10-30 Years
-
Color:
-
Black Green or customized
-
MOQ:
-
2000sq
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
soil stabilization, soil stabilization
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, Shandong China
-
Brand Name:
-
Shengxing
-
Model Number:
-
TGGS-49
-
Product name:
-
HDPE Geocell for Slope Protection Project in Denmark
-
Tensile Strength of Connection:
-
>100N/cm
-
Height:
-
50~250mm
-
Thickness:
-
1.0~1.7 mm
-
Lifespan:
-
10-30 Years
-
Color:
-
Black Green or customized
-
MOQ:
-
2000sq
Products Description
Product Introduction

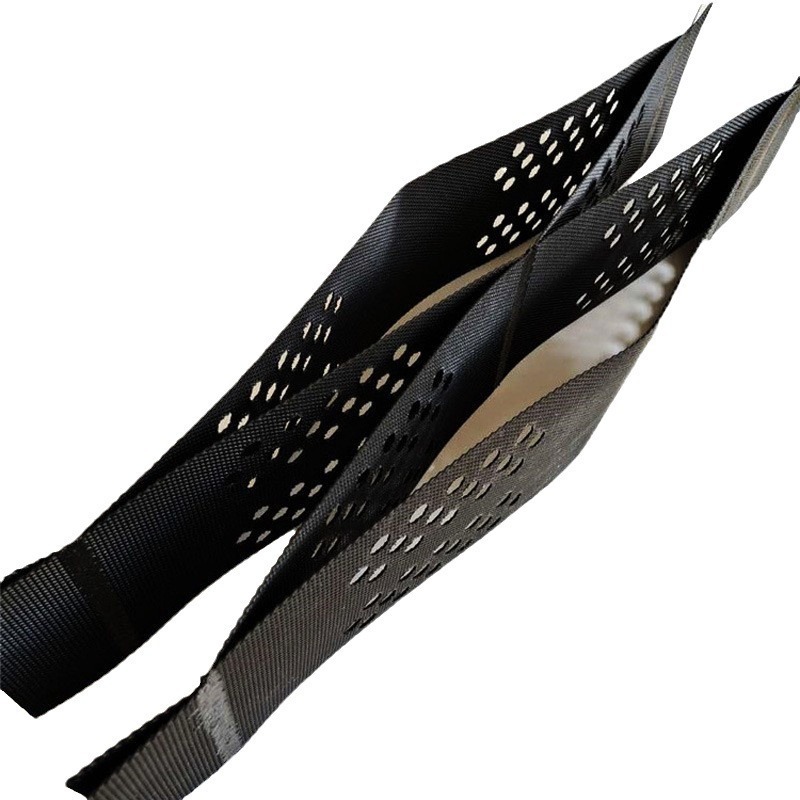

Plastic geosynthetic cell is a type of geosynthetic material, which is a three-dimensional network structure formed by connecting polymer sheets with rivets or ultrasonic welding. When used, it unfolds in a network shape and is filled with loose materials such as sand, gravel, and soil to form a composite material with a whole structure. According to customer requirements, holes or prints can be punched or printed on the sheet to enhance its lateral permeability, increase friction and bonding with the foundation material.
Feature1：
It can stretch and contract freely, and can be transported and stacked. During construction, it can be tensioned into a mesh and filled with loose materials such as soil, gravel, and concrete, forming a structure with strong lateral constraints and high stiffness.
Feature2：
Lightweight material, wear-resistant, and stable chemical properties. Resistant to light and oxygen aging, acid and alkali, suitable for different soil conditions such as deserts.
Feature3：
High lateral restriction and anti slip, anti deformation. Effectively enhancing the bearing capacity of the roadbed and dispersing the load.
Feature4：
Changing the geometric dimensions such as the height and welding distance of the geotechnical cell can meet different engineering needs.
Feature5：
Flexible expansion and contraction, small transportation volume; Convenient linking and fast construction speed.
|
Test items
|
Test items
|
unit
|
Geomaterial made of PP
|
Geomaterial made of PE
|
||
|
appearance
|
appearance
|
|
The cells should be flat, free of bubbles and grooves
|
|
||
|
The tensile yield strength of grid cells
|
The tensile yield strength of grid cells
|
MPa
|
≧23.0
|
≧20.0
|
||
|
Tensile strength of welded joints
|
|
N/cm
|
≧100
|
≧100
|
||
|
Mild tensile strength at the connection between format groups
|
Edge of compartment slice
|
N/cm
|
≧200
|
≧200
|
||
|
|
In the middle of the compartment
|
N/cm
|
≧120
|
≧120
|
||
