Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ16F-11E/J/S/12V/R
-
IP level:
-
IP67
-
Product name:
-

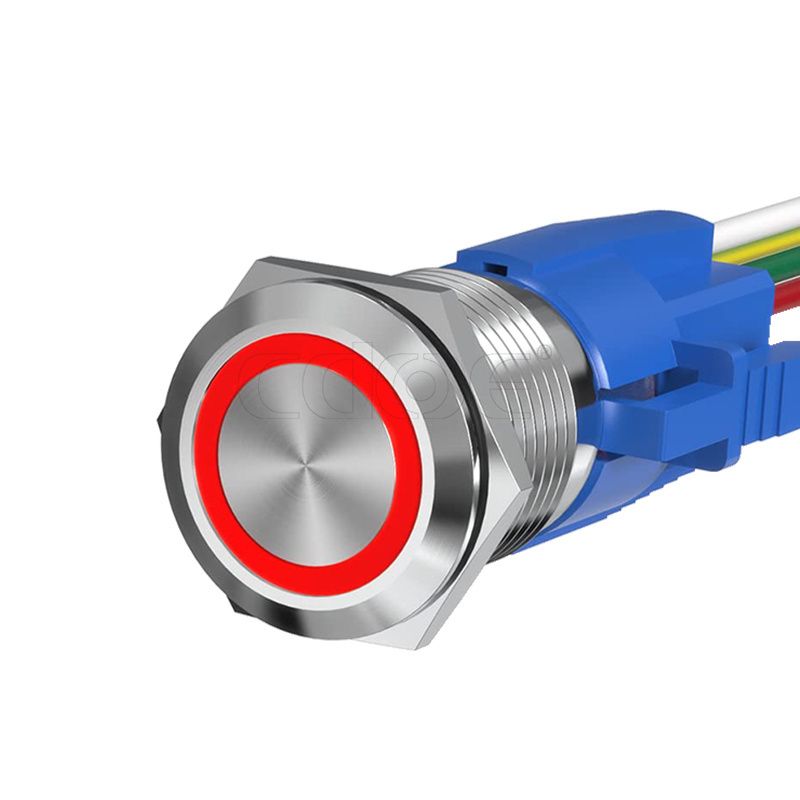

16mm Metal push button switch with led
-
head type:
-
Ring led
-
Switch value:
-
Momentary
-
Operation type:
-
1NO1NC
-
Contact configuration:
-
Pin terminal
-
Crust material:
-
Stainless steel
-
Terminal type:
-
Pin terminal
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
1,000,000 times
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDS1-AGQ16F-11E/J/S/12V/R
-
IP level:
-
IP67
-
Product name:
-
16mm Metal push button switch with led
-
head type:
-
Ring led
-
Switch value:
-
Momentary
-
Operation type:
-
1NO1NC
-
Contact configuration:
-
Pin terminal
-
Crust material:
-
Stainless steel
-
Terminal type:
-
Pin terminal
-
Contact material:
-
Silver alloy
-
Mechanical life:
-
1,000,000 times
Parameter
|
16mm Metal Push Button Switch With Led
|
|
|
|
|
||||
|
Mounting hole size :
|
|
|
16mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
5A/250V
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
1NO1NC
|
|
||||
|
Crust material:
|
|
|
Stainless Steel
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Protection grade :
|
|
|
IP67
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Mechanical life:
|
|
|
≥1，000,000 times
|
|
||||
|
Illumination type:
|
|
|
Dot illuminated
|
|
||||
|
Led color:
|
|
|
Red
|
|
||||
|
Led voltage:
|
|
|
12V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
Products Description
Product introduction:
In today's world, where everything is automated, the need for high-quality electrical switches is more critical than ever. Whether you are building a new project or repairing an existing one, the quality of the switch you choose can make a significant difference. In this article, we will discuss a product that has caught the attention of many professionals in the industry. The product in question is a
12v waterproof switch
with a reset push button and ring-shaped lamp bead light-emitting. This product is designed to offer superior performance in a variety of environments, thanks to its high waterproof level and durable construction.
Features of the Product:
HBDS1-AGQ16F-11E/J/S/12V/R
of the most prominent features of this
12v switch
is its high waterproof level, which is rated at IP67. This means that the switch is resistant to water and dust, making it an ideal choice for use in harsh environments. Additionally, the switch has an IK09 protection level, which makes it resistant to impact and mechanical stress.
The switch is made of 304 stainless steel shell and nickel-plated brass, which makes it strong, durable, and corrosion-resistant. The combination of these two materials also gives the switch an elegant and modern look.
The product comes with both normally open and normally closed contacts, giving you the flexibility to choose the best configuration for your application. The switch is rated at 5A, 250V, which means that it can handle a high electrical load without any issues.
Another feature of this 12v switch is its long-lasting, bright lamp beads. The ring-shaped lamp bead light-emitting produces a vivid and uniform light that is easy to see even in low-light conditions. The light photovoltaic number of the light is 12v, and there are 6 pin terminals with light when it is opened and closed. This makes it easy to tell if the switch is on or off, which is especially useful in applications where the switch is not easily visible.
Finally, the switch is equipped with brass nickel-plated terminal material, which ensures a secure and reliable connection. The switch also comes with a waterproof black rubber ring, which helps to protect the switch from water and dust.
The
12v waterproof switch
with a reset push button and ring-shaped lamp bead light-emitting is an excellent choice for anyone who needs a high-quality switch that can withstand harsh environments. The product's high waterproof level, durable construction, and long-lasting lamp beads make it an excellent choice for a wide range of applications. Whether you are building a new project or repairing an existing one, this switch is sure to provide you with the performance and reliability you need.
