Original: China

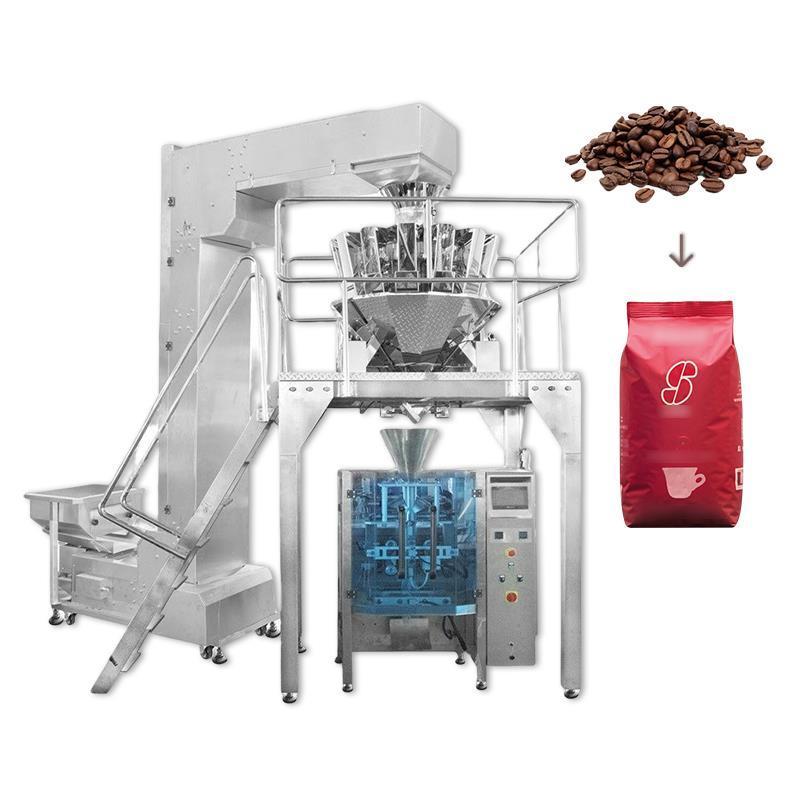

304 stainless steel,multi-head combined weigh-er, improve metering speed and accuracy.
304 stainless steel,multi-head combined weigh-er, improve metering speed and accuracy.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
580
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
taichuan
-
Dimension(L*W*H):
-
4020*720*1320 mm
-
Product name:
-
Automatic Vertical Packing Machine
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Usage:
-
Bag Making
-
Main Function:
-
Forming Filling Sealing
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE certification
-
Feature:
-
Easy Opperation
-
Capacity:
-
10-35bags/min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING
-
Packaging Type:
-
Cartons, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper, Wood
-
Weight (KG):
-
580
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
taichuan
-
Dimension(L*W*H):
-
4020*720*1320 mm
-
Product name:
-
Automatic Vertical Packing Machine
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Usage:
-
Bag Making
-
Main Function:
-
Forming Filling Sealing
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE certification
-
Feature:
-
Easy Opperation
-
Capacity:
-
10-35bags/min
Product Description
Function and structure characteristics
1.
New design, beautiful appearance, reasonable structure, more advanced technology.
2.
lmported PLC computer control system, color touch screen easy, intuitive and efficient.
3.
Import servo film transporting system, import color sensor, accurate positioning machine performance packaging beautifully.
4.
Multiple automatic alarm proton educing the maxlimum loss.
5.
Bag-shaped variety,can provide customers with pillow-shaped bags, Alphascope bogs, hanging bogs, even bogs.
Specification
|
Model
|
TCLB-420
|
TCLB-520
|
TCLB-620
|
|
Film width
|
Max.420mm
|
Max.520mm
|
Max.620mm
|
|
Film width Range
|
140-420mm
|
240-520mm
|
300-620mm
|
|
Bag Width
|
65-200mm
|
110-250mm
|
140-300mm
|
|
Bag Length
|
80-300mm
|
80-400mm
|
80-450mm
|
|
Film roll Diameter
|
Max.320mm
|
Max.320
|
Max.400mm
|
|
Packing rate
|
5-60bag/min
|
5-60bag/min
|
5-50bag/min
|
|
Measurment range
|
150-1100ml
|
150-2000ml
|
150-3000ml
|
Package bag material:
We use Laminate plastic roll film like OPP/CPP, OPP/CE, MST/PE material for machine,also support to package by Polyethylene film but should add PE device.
1.Package material should supported to be sealed by heating not ultrasonic or others.
2.Package roll film thickness is better between 0.07mm-0.15mm.
If you would order packing roll film in China with machine together,you can send some sample film to our factory for testing,we supply this service for free and will set up all the parameters by your film in machine so that solve your more operation worries when got the machine.
We also support to help for you purchase the package film together,but should send us your design plan of bag.
Detailed Images
Optional Devices
Related productions
Company Introduction
Certifications
Production Process
Packing & Delivery
A.) All products are cleaned from the inside and outside before packaging.
B.) Part of the machinery will be divided into modular packaging.
C.)The machine will be wrapped with film to avoid the machine to get scratches and prevent water dripping on the parts.
D.) Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case.
E.)Mark shipping mark In the cases.
FAQ
1) Which machine suitable for me? How can I chose?
All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing bag Length, width and height? Weight per bag?
3. Bag type If you are not sure, we can help you to fine a perfect bags and provide you a project for you to choose.
All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing bag Length, width and height? Weight per bag?
3. Bag type If you are not sure, we can help you to fine a perfect bags and provide you a project for you to choose.
2) It's the machine durable or ensure long-time use?
1. We have spare part production department most of our spare part is producing by our factory and our engineers master every part will good to the running of the machine.
2. Well maintain is not to be ignored
3) How long the delivery date?
The small machine is 15-20 days and the large machine will be 20-45 days.
4) How about the After-sale service?
We have professional after-sale technical team, we can make you a video to show you how to fix and installation.
1. We have spare part production department most of our spare part is producing by our factory and our engineers master every part will good to the running of the machine.
2. Well maintain is not to be ignored
3) How long the delivery date?
The small machine is 15-20 days and the large machine will be 20-45 days.
4) How about the After-sale service?
We have professional after-sale technical team, we can make you a video to show you how to fix and installation.
