Quick Details
-
Power:
-
316kw
-
Dimension(L*W*H):
-
32000*30000*1500mm, 32000*30000*1500mm
-
Weight:
-
80 kg
-
Rated production capacity:
-
80t/h
-
Agitation ability:
-
1250KG
-
Fuel type:
-
Diesel oil and heavy oil
-
Temp Accuracy:
-
±3℃
-
Dust Removal Emission Standard:
-
≤20mg/Nm3
-
Bag filtration area:
-
400m2
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
bigbund
-
Voltage:
-
220V/380V-50Hz
-
Power:
-
316kw
-
Dimension(L*W*H):
-
32000*30000*1500mm, 32000*30000*1500mm
-
Weight:
-
80 kg
-
Rated production capacity:
-
80t/h
-
Agitation ability:
-
1250KG
-
Fuel type:
-
Diesel oil and heavy oil
-
Temp Accuracy:
-
±3℃
-
Dust Removal Emission Standard:
-
≤20mg/Nm3
-
Bag filtration area:
-
400m2
-
Certification:
-
ISO CE

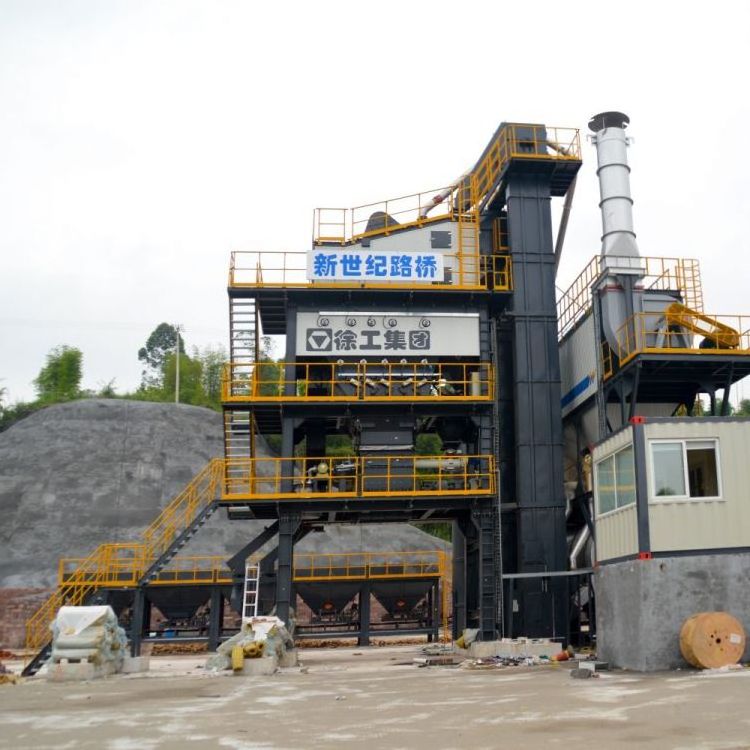

China famous brand Asphalt mixing station on hot sale
Product use:
Asphalt mixing station, also known as asphalt concrete mixing station, refers to the complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture , modified asphalt mixture and color asphalt mixture . It is the necessary equipment for building expressways, grade highways, municipal roads, airports and ports.
Equipment composition:
It mainly consists of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product silo and control system.
Rated Parameters:
| item | parameters | unit |
| Dimension(L*W*H) | 32000*30000*1500 | mm |
| Rated production capacity | 80 | t/h |
| Agitation ability | 1250 | KG |
| Fuel type | Diesel oil and heavy oil | |
| Temp Accuracy | ±3 | °C |
| Dust Removal Emission Standard | ≤20 | mg/Nm3 |
| Bag filtration area | 400 | m2 |
| Total installed power | 326.05 | kw |
We have been engaged in foreign trade for more than ten years , and have very rich experience in sea transportation . According to past cases, each of our goods is intact and delivered to customers on schedule .
At the same time, you are welcome to visit our factory in Shanghai, China, we will book hotels, air tickets and take you to the scenery of Shanghai in advance.
At the same time, we will provide you with technical support 24 hours a day , or send engineers to guide the installation and operation . If there are any quality problems with the machine, we will solve it for you in the first time.
