Quick Details
-
Model Number:
-
RS-FSXCS-N01-3
-
Product name:
-
Ultrasonic Weather Station
-
DC power supply:
-
10-30VDC
-
Wind speed:
-
0~40m/s
-
Wind direction:
-
0~359°
-
Humidity:
-
0%RH~99%RH
-
Temperature:
-
-40℃~+80℃
-
Atmospheric pressure:
-
0-120Kpa
-
Noise:
-
30dB~120dB
-
PM10 PM2.5:
-
0-1000ug/m3
-
Light intensity:
-
0~200000Lux
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
renke
-
Model Number:
-
RS-FSXCS-N01-3
-
Product name:
-
Ultrasonic Weather Station
-
DC power supply:
-
10-30VDC
-
Wind speed:
-
0~40m/s
-
Wind direction:
-
0~359°
-
Humidity:
-
0%RH~99%RH
-
Temperature:
-
-40℃~+80℃
-
Atmospheric pressure:
-
0-120Kpa
-
Noise:
-
30dB~120dB
-
PM10 PM2.5:
-
0-1000ug/m3
-
Light intensity:
-
0~200000Lux
High Precision Compact RS485 All in One Ultrasonic Weather Station For Environmental
Product Description

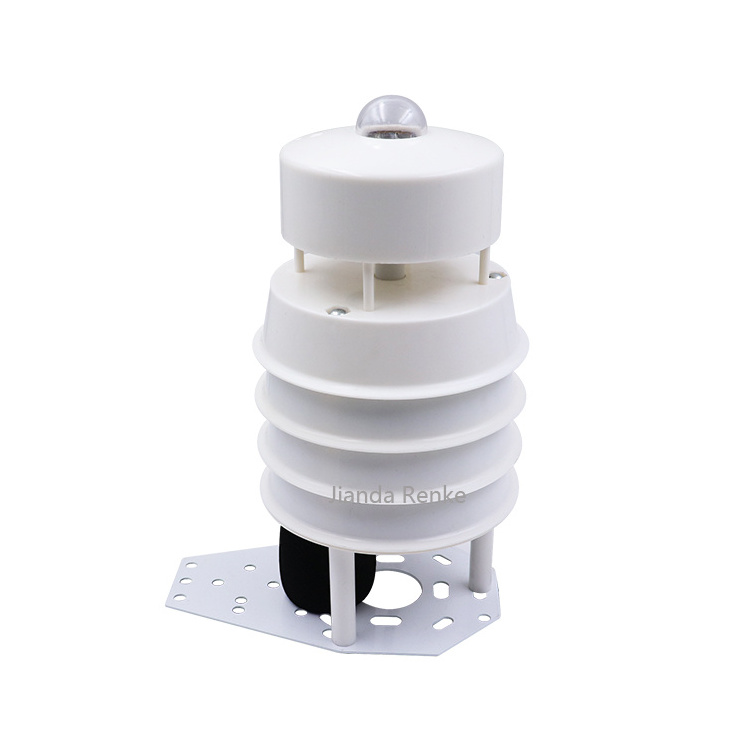

The small ultrasonic integrated weather station RS-FSXCS-N01 integrates wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, atmospheric pressure, and light. It can be widely used in environmental testing.
Compact housing is fully waterproof and resistant to chemicals.
|
DC power supply
|
10-30VDC
|
|
|
|
|||
|
Power consumption
|
0.7W
|
|
|
|
|||
|
Parameter name
|
Measuring Range
|
Accuracy
|
Response time
|
Long-term stability
|
|||
|
Wind speed
|
0~40m/s
|
±0.5+2%FS
|
1S
|
--
|
|||
|
Wind direction
|
0~359°
|
±3°
|
1S
|
--
|
|||
|
Humidity
|
0%RH~99%RH
|
±3%RH(60%RH,25℃)
|
≤1s
|
≤1%/y
|
|||
|
Temperature
|
-40℃~+80℃
|
±0.5℃（25℃）
|
≤1s
|
≤0.1℃/y
|
|||
|
Atmospheric pressure
|
0-120Kpa
|
±0.15Kpa@25℃ 101Kpa
|
≤1s
|
-0.1Kpa/y
|
|||
|
Noise
|
30dB~120dB
|
±0.5dB
|
≤1s
|
≤3db/y
|
|||
|
PM2.5
|
0-1000ug/m3
|
±3%FS(@100μg/m3,25℃,50%RH)
|
≤90S
|
≤1%/y
|
|||
|
Light intensity
|
0~200000 Lux
|
±7%(25℃)
|
≤0.1s
|
≤5%/y
|
|||
|
Protection level
|
IP54
|
|
|
|
|||
|
Output signal
|
RS485 (standard Modbus communication protocol)
|
|
|
|
|||
Other types of weather station we offered
Details Images
Ultrasonic weather station adopts the integrated design of multiple collection devices and is easy to install.
The wind speed and direction are measured by the principle of ultrasonic wave, and there is no angle limit, 360° omni-directional, and data of wind speed and wind direction can be obtained at the same time.
Noise collection, accurate measurement, range up to 30dB~120dB.
PM2.5 and PM10 are collected at the same time, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data collection and automatic calibration technology, the consistency can reach ±10%.
Measure the environmental temperature and humidity, the measuring unit is imported from Switzerland, and the measurement is accurate.
Wide range 0-120Kpa air pressure range, applicable to various altitudes.
Using a dedicated 485 circuit, the communication is stable.
A device with a built-in electronic compass, no direction requirements during installation, just install it horizontally
