Entry level small rotary roller heat press 1200mm machine sublimation calandra

Entry level small rotary roller heat press 1200mm machine sublimation calandra

FOB Reference Price: Get Latest Price

≥1 Sets

US $5700

≥8 Sets

US $4800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V 1 phase/220V 3 phase/380V 3 phase

Place of Origin:: Guangdong, China

Brand Name:: HeatTech

Model Number:: HB21-2

Weight:: 740 KG

Platen Size:: 210mm diameter

Drum width:: 1.3m

Drum diameter:: 210mm

Application:: For flags, for sportswear, for towel, etc.

After-sales Service Provided:: Online Support Video Technical Support

Drum type:: Chrome-plated

Automatic blanket alignment:: Yes

Pressure:: 0-8 kg

Temperature:: 0-260℃

Sublimation speed:: 35-50 meters per hour

Quick Details

Condition:: New

Plate Type:: Roll to roll and roll to pieces

Color & Page:: single color

Voltage:: 220V 1 phase/220V 3 phase/380V 3 phase

Place of Origin:: Guangdong, China

Brand Name:: HeatTech

Model Number:: HB21-2

Weight:: 740 KG

Platen Size:: 210mm diameter

Drum width:: 1.3m

Drum diameter:: 210mm

Application:: For flags, for sportswear, for towel, etc.

After-sales Service Provided:: Online Support Video Technical Support

Drum type:: Chrome-plated

Automatic blanket alignment:: Yes

Pressure:: 0-8 kg

Temperature:: 0-260℃

Sublimation speed:: 35-50 meters per hour

Product Overview

Entry level small rotary roller heat press 1200mm machine sublimation calandra

Small sublimation roll heat press machine is mostly employed in the apparel industry and is a hot sale model in many countries especially the USA, Mexico, Malaysia, Thailand, Spain, and Russia. Customers from the US who ordered small roll heat press machines normally own a shop and a few shops. Some of them don't have 220V 3 phase. It is lucky that this roll press can be 220V 1 phase power. Preheating power also called maximum power is 8.4KW, and the amperage for 220V 1 phase is 38A. As for the 1.8m is 11KW and amperage 50A.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Drum type	Durable chrome-plated double-layer
2	Drum diameter	210mm
3	Drum width	1.3 m
4	Temperature range	0-260℃
5	Sublimation speed	Adjustable, mostly customers are using 35-50m/h
6	Main motor power	0.4KW
7	Other motor's power	0.15KW
8	Voltage	220V 1 phase/220V 3 phase/380V 3 phase
9	Total power	8.4KW
10	Amperage for 220V 1 phase	38A
11	Amperage for 220V 3 phase	22A
12	Amperage for 380V 3 phase	13A
13	Automatic blanket alignment	Yes
14	Adjustable blanket length	Yes
15	Automatic pneumatic pressure	Yes
16	Automatic shut down	Yes
17	Control panel	Button control
18	Language of control panel	English
19	Number of air shaft	2
20	Working way	Roll to roll, roll to pieces, pieces to pieces
21	Packing dimension	205x101x156cm
22	Volume	3.23CBM

FEATURES AT A GLANCE

The sublimation speed of this calendar is faster than the large format flat heat presses which can sublimate up to 50 meters per hour. Power is smaller than a flatbed heat press. So it needs less electricity cost. When you load paper rolls or load fabric rolls, it would be better to have 2 people. Then when you heat transfer, normally 1 operator is enough.

High-quality heating elements on the drum with oil-filled for perfect sublimation results.
With a standard air shaft for waste sublimation paper.

You can make the "forcing" function operate when the material requires additional force. Two air cylinders, one on each side of the pressure roller, are linked. The two air cylinders will be triggered when the forcing button is depressed, moving the pressure roller.

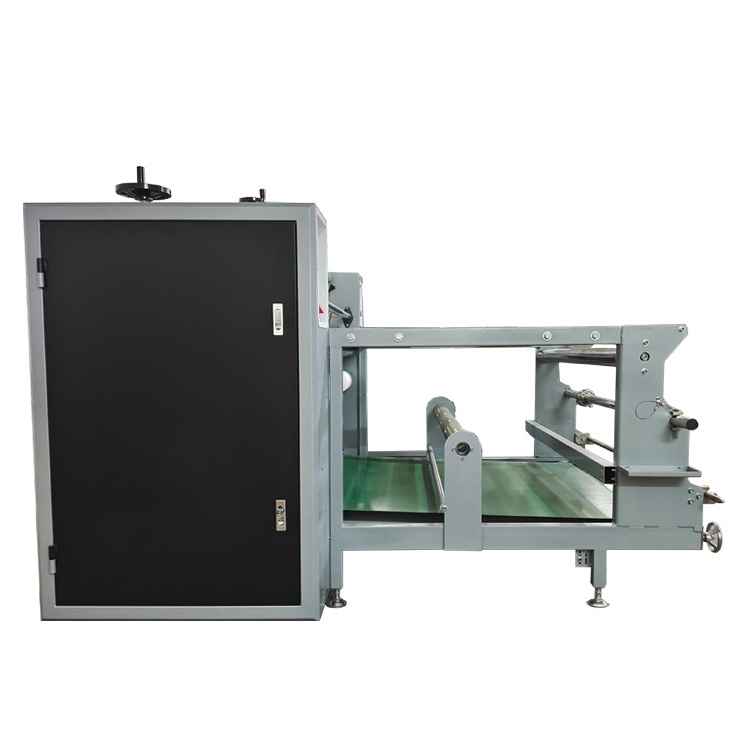

Right calandra

Left calandra

Back calandra

More specifications

The electric components are protected from dirt falling on them by an acrylic board. The photoelectric switches and motor for the automatic alignment system allow you to use it at a faster speed and no need to manually adjust the blanket.

We provide lifetime technical support for our heat transfer machines. If you experience any issues or have any questions about how to use the press, please contact us and our team of experts will be more than happy to help you.

PRODUCT CONFIGURATION

Automatic pneumatic pressure

Blanket circumference adjustment

Automatic blanket alignment system
