Quick Details
-
Range of Spindle Speed(r.p.m):
-
65 - 4500 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Greet
-
Model Number:
-
M5WH
-
Table Travel (mm):
-
800x400x400-700
-
Year:
-
2024
-
Spindle Motor Power(kW):
-
2.2
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
1750x1650x2500mm
-
Weight (KG):
-
1700
-
Warranty of core components:
-
13 months
-
Name:
-

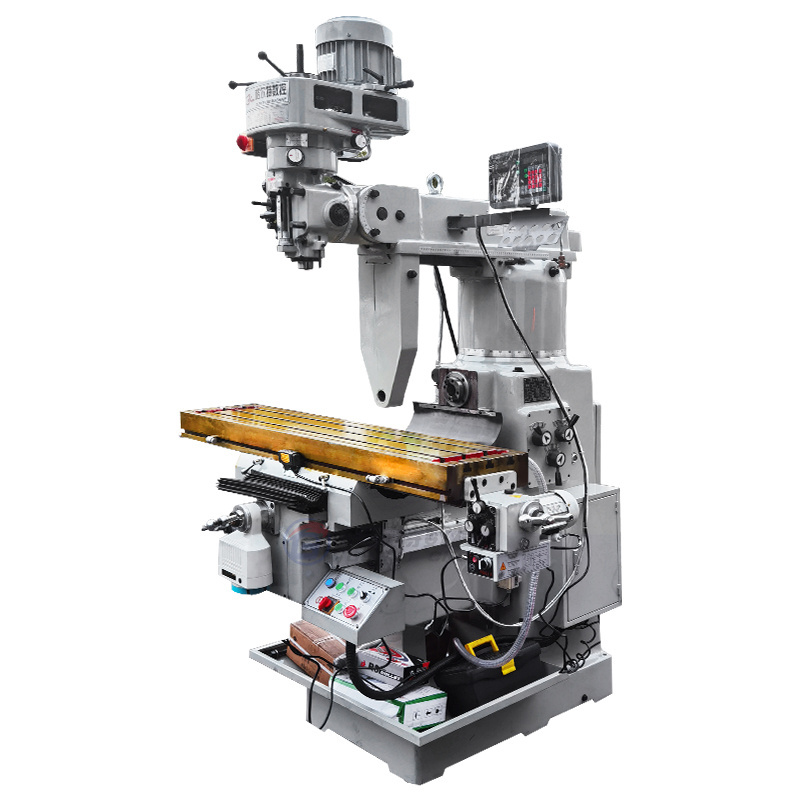

Turret Milling Machine
Quick Details
-
Table Travel (X) (mm):
-
800
-
Table Travel (Y) (mm):
-
400
-
Table Travel (Z) (mm):
-
700
-
Range of Spindle Speed(r.p.m):
-
65 - 4500 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Greet
-
Model Number:
-
M5WH
-
Table Travel (mm):
-
800x400x400-700
-
Year:
-
2024
-
Spindle Motor Power(kW):
-
2.2
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
1750x1650x2500mm
-
Weight (KG):
-
1700
-
Warranty of core components:
-
13 months
-
Name:
-
Turret Milling Machine
Products Description
Product Paramenters
Configuration features
1.
M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.High speed Taiwan milling head.
3.
Domestic high-quality screw rod.
4.
Lubrication system (electronic oil pump can be configured).
5.
Cooling water pump system.
6.
Lifting handle, three-ball handle, rotary handle and lifting ring
Optional configurations:
1.Lifting motor (Z-axis auto rapid feed);
2.Automatic feed (X/ Axis auto feed);
3.Digital display electronic ruler
4.Pneumatic broach tool;
5.Programmable numerical control system
6.Variable speed milling headis
Turret milling machine application:
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
|
Specifications
|
Units
|
M5W
|
M5WH
|
M6W
|
||
|
Table size
|
mm
|
1370x305
|
1370x305
|
1500x320
|
||
|
Table travel
|
mm
|
800x400x400
|
800x400 x400~700
|
980x400x400
|
||
|
T slot(number-width-pitch)
|
mm
|
3-16-65
|
3-16-65
|
3-16-65
|
||
|
Spindle taper
|
/
|
standard:R8 optional:NT40
|
standard:R8
Optional :ISO40 |
|
||
|
|
RPM
|
standard:（16 steps）50HZ:65-4500 60HZ:80-5440
|
|
|
||
|
|
|
optional（variable）65-4000
|
|
|
||
|
Horizontal axis speed range
|
RPM
|
40-1300 (12 steps)
|
40-1300 (12 steps)
|
|
||
|
Spindle travel
|
mm
|
127
|
127
|
|
||
|
Spindle feed range
|
mm
|
0.04,0.08,0.15 (3 steps)
|
0.04,0.08,0.15
(3 steps) |
|
||
|
Distance between spindle nose and table surface
|
mm
|
90-510
|
90-510
|
|
||
|
Main motor power
|
kw
|
2.2
|
2.2
|
3.7
|
||
|
Head rotation (left - right )
|
/
|
±90°
|
±90°
|
|
||
|
Head rotation (front - rear)
|
/
|
±45°
|
±45°
|
|
||
|
Weight
|
kg
|
1650
|
1700
|
1850
|
||
|
Overall dimension
|
mm
|
1650x1650x2250
|
1650x1650x2500
|
1800x1700x2300
|
||
|
Package size
|
mm
|
1805x1750x2200
|
1805x1750x2300
|
2050x1750x2200
|
||
