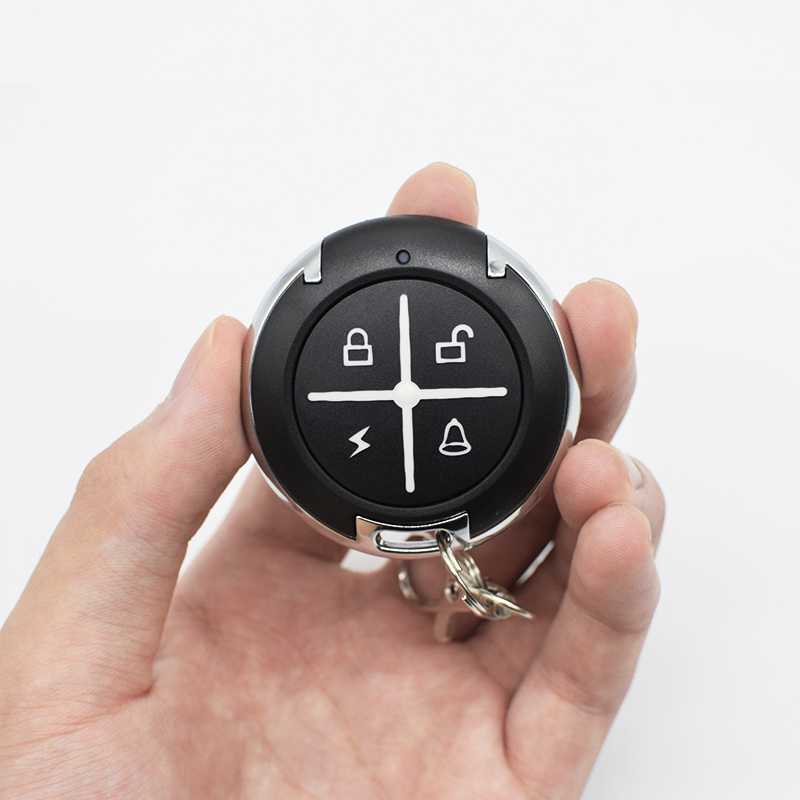

Black Round Self-copying Remote Control Transmitter For Electric Door Garage Gate Wireless Remote Switch - 433MHz

FOB Reference Price: Get Latest Price

≥2 Sets

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Black

Code:: Fixed Code

Certification:: CE

Quick Details

Place of Origin:: ZHEJIANG

Brand Name:: KINCONY

Model Number:: Remote-433Mhz

Color:: Black

Code:: Fixed Code

Certification:: CE

Product Description

1. High copy accuracy and high copy efficiency

2. The copy data code and the copy oscillating resistor have small error, and the copy does not drop code

3. The copy oscillating resistor range is 1.2M to 6.2M wide.

4. The circuit design is stable, the button
is no longer used as the power supply wire, and the high current triode is separately controlled to improve the power supply dynamics

5. One-click smart copy to improve work efficiency.

6. Multi-functional and multi-variable, personalized and user-friendly designis simple and fast to use.

7. The imported high frequency triode is used, and the transmitting power is 13dbm. Less dead ends.
8. Can be copied common chips: PT2264, PT2262, PT2260, PT2240, SC2262. SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527,etc, the general suffix can be the same,.

9. This smart copy remote control is suitable for customers with electric door remote
control, telescopic door remote control, garage door remote control, motor control remote control, curtain control remote control,car and motorcycle remate control.

The copy remote control must meet the following three conditions:

1. You must have à good remote control.

2. You need to know the crystal frequency and chip type of your remote control

3. This remote control can copy most of the fixed code and learning code series remote control, which is mainly suitable for rolling gates, retractable doors and garage doors. Gates and so on.

Please unpack your wireless remote control to see the remote internal circuit board:

A. Frequency View: Look at the number on the wireless remote control circuit board (some people are also called crystal
oscillator)(315MHZ? 433MHz? Other 390, 418, 430 frequency/?) select the corresponding frequency.

B. Chip view: IC on the remote control board (2260? 2262? 2264? 1527? 22402) - the prefix of the IC is different, there may be a
difference in the oscillation resistance, but the IC suffix must be the same or compatible, such as 2260/ 2262/2264 several chipsare compatible, this is the fixed code is also called the welding code (requires the user to weld the custom code). If it is 1527or 2240, this is also a fixed code (no need to encode the chip when it is shipped from the factory), so this type of remotecontrol needs to be paired with the receiving motherboard to learn the code, so it is often called the learning code.

C. Data information: The fixed code can be viewed through the data pin weld. Others need to be detected by the copy machine or the instrument can be seen.

D. Oscillation resistance: This is a resistor connected to the oscillation pin of the remote control iC. Commonly used oscillator resistors for fixed-code chip 2262/2264 are: 1.2M (125): 1.5M (155) 2.2M (225) 3.3M (335): 4.7M (475). The oscillation resistanceof the learning code chip 1527 is usually 180K (18) 270K (274): 330K (334) and the like. Mismatch in the oscillating resistor may result in a close distance or by pressing the wireless remote receiver.

Programing

1. Press button 1 (left button) and 2 (right button) continuously until LED flash 3 times

2. Release button 2 (Keep pressing button 1), and press button 2 Slowly for 3 times, LED flash, release button “1”,finish code clear.

3. Put the new remote aside of original transmitter,as close as possible.

4. Press and hold button 1 of original transmitter,then press and hold button 1 of new remote until you see the new remote’s LED flash

5.Release both buttons,finish code copy,copy other button in same way. Button 1 =left button Button 2 = right button
