industrial shredder and dewatering screw press all in one machine
is the machine that integrate industrial shredders with dewatering screw press. The all in one design for combining shredding and dewatering in one step. The all in one screw press can be used in the waste-to-energy application such as refuse derived fuel (RDF) processing, the waste-to-green application such as biodegradable organic waste composting, etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HM500-HM1000
-
Power:
-
13-75
-
Material:
-
#45 steel
-
Shaft Speed:
-
Low speed shredding
-
Design:
-
Shredding and dewatering integrated design
-
Construction:
-
Heavy Duty
-
Application:
-
Food Waste Treatment
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Quick Details
-
Production Capacity:
-
1000L/H
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TIMO
-
Model Number:
-
HM500-HM1000
-
Power:
-
13-75
-
Material:
-
#45 steel
-
Shaft Speed:
-
Low speed shredding
-
Design:
-
Shredding and dewatering integrated design
-
Construction:
-
Heavy Duty
-
Application:
-
Food Waste Treatment
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Product Description

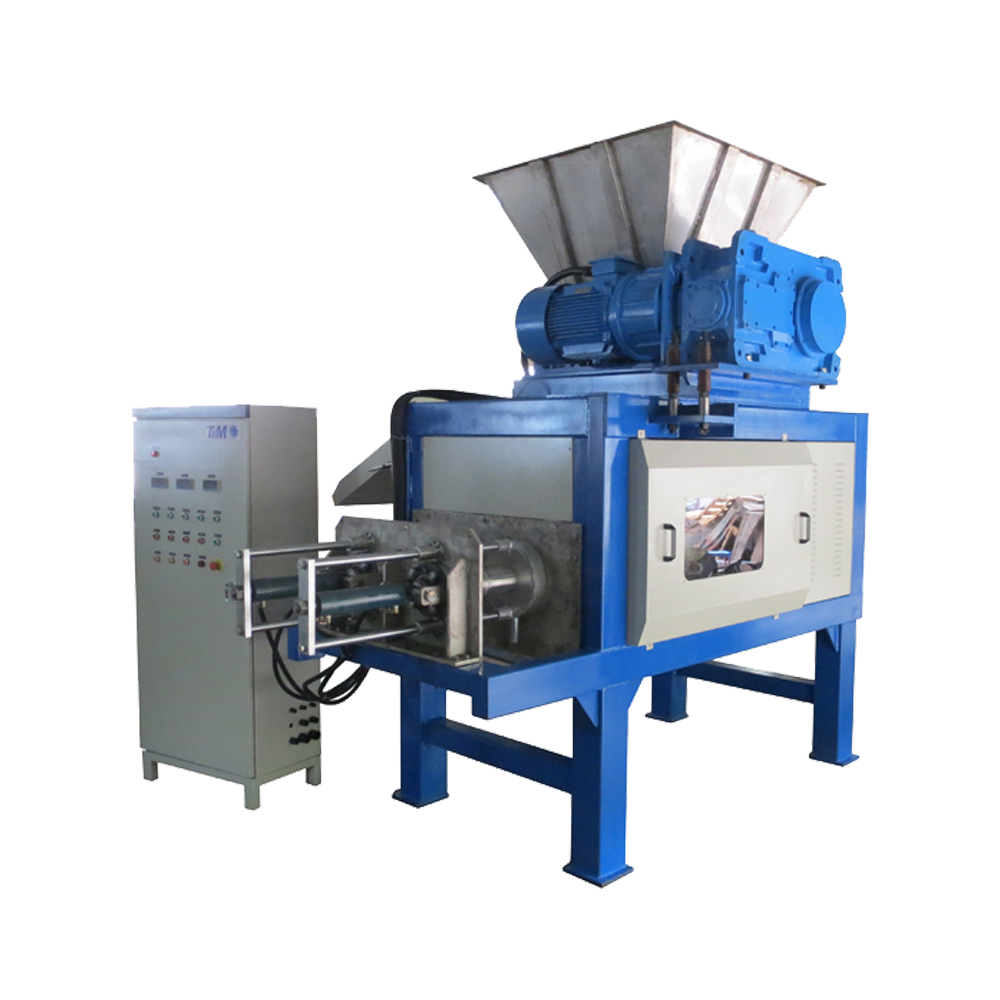

Industrial Shredder And Dewatering Screw Press All In One Machine
Automatic Feeding System
For kitchen waste and other fluid state material waste, we are equipped with automatic feeding system, and add the protective cover at the hopper to prevent waste to splash during automatic feeding.
Customized Screw Press
For the case of processing large capacity, we use several dewatering screw presses in parallel arrangement , each screw press can be individually controlled without mutually interfere, they can wrok at the same time to increase the capacity,to reduce the power cosumption, they can wrok only one or two when small capacity you required.
Product Feature
|
Model
|
HM500
|
HM800
|
HM1000
|
|
Machine Power KW
|
11+7.5+0.75
|
22+11+0.75
|
44+22.5+1.5
|
|
Cutting Shaft Type
|
Twin Shaft
|
Twin Shaft
|
Twin Shaft
|
|
Shaft Diameter mm
|
Φ240
|
Φ320
|
Φ240
|
|
Shaft Speed rpm
|
16~25
|
16~25
|
10~20
|
|
Cutting Chamber mm
|
500x320
|
800x500
|
1000x600
|
|
Knives Diameter mm
|
Φ180
|
Φ280
|
Φ340
|
|
Dewatering Type
|
Screw Press
|
Screw Press
|
Screw Press
|
|
Capacity Kg/Hr
|
1000~2000
|
2000~4000
|
4000~6000
|
|
Machine Size mm
|
3100x1000x2450
|
3800x1200x2500
|
3400x2000x2700
|
Industrial Shredder And Dewatering Screw Press All In One Machine Features:
♦ Low-speed shredding, whether hard or soft materials can be shredded, high efficiency, strong processing capability.
♦ Shredding and dewatering integration design, greatly saves working space, reduce operating costs.
♦ Compact, robust, shredder and dewatering screw press can be independently disassembled, easily maintenance.
♦ The cutting blades uses high quality alloy from Europe, high hardness and toughness, with strong wear resistance and impact resistance.
♦ Intelligent, automatic reverse to jammed hard foreign matter.
♦ Stainless Steel Wetted parts.
♦ Spring or Pneumatic Back Pressure Devise.
♦ Multiple Sizes for Any Capacity.
♦ Easy to Install and Operate.
Application Picture
Kitchen Waste
Kitchen waste shredding and dewatering to make compost.
Domestic Waste
Domestic waste shredding and dewatering to make RDF
Green Tea
Green tea leaf dewatering
