- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jicheng
-
Model Number:
-
Elbow
-
Product name:
-

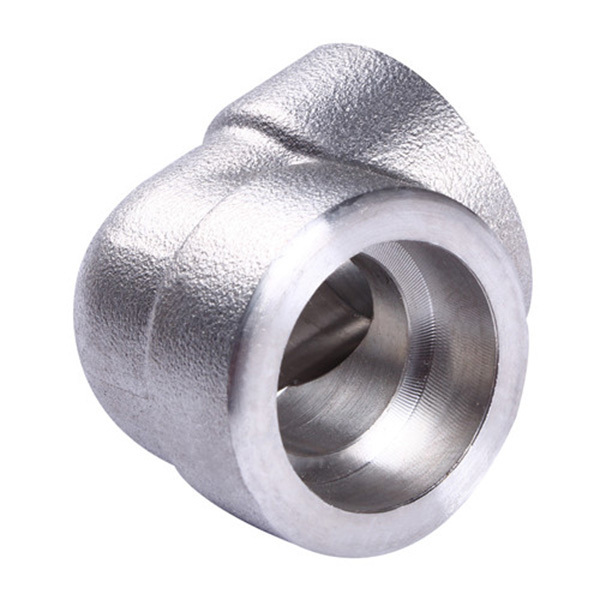

304 stainless steel 1 inch socket weld 90 degree elbow
-
Size:
-
1/8"-4"
-
Pressure:
-
3000lbs,6000lbs,9000lbs or as your request
-
Surface treatment:
-
black plain,pickling
-
Temperature:
-
-254°~800°
-
Brand:
-
OEM/ODM
-
Material:
-
304/304L/316L/321 etc
-
Standard:
-
ASME/ANSI,MSS,DIN,JIS,GB/T,SH,CB,JB,HG
-
Application:
-
Petroleum,chemical,machinery,boiler,electric ,shipbuilding,etc
-
Certificate:
-
ISO 9001
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
round
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jicheng
-
Model Number:
-
Elbow
-
Product name:
-
304 stainless steel 1 inch socket weld 90 degree elbow
-
Size:
-
1/8"-4"
-
Pressure:
-
3000lbs,6000lbs,9000lbs or as your request
-
Surface treatment:
-
black plain,pickling
-
Temperature:
-
-254°~800°
-
Brand:
-
OEM/ODM
-
Material:
-
304/304L/316L/321 etc
-
Standard:
-
ASME/ANSI,MSS,DIN,JIS,GB/T,SH,CB,JB,HG
-
Application:
-
Petroleum,chemical,machinery,boiler,electric ,shipbuilding,etc
-
Certificate:
-
ISO 9001
| Product name | 304 stainless steel 1 inch socket weld 90 degree elbow |
| Size | 1/8"-4" |
| Connection | Socket welding |
| Material |
Stainless steel
: 304, F304(S30408), F316(S31608), F321(S32168), 304L(S30403), F316L(S31603), 316L(high Mo), 00Cr17Ni14Mo2, F51(S22253), F60, F304H(S30409),
F316H(S31609), F321H(S32169), F321H low S.P, M-400, F53, 316Ti, 317, 317L, 347, 347H(S34779), 310S, F304 low S.P, 304L low S.P, F316L low S.P, 347H low S.P, F5teel |
| carbon steel :20#, A105 low PS, A105, A350LF2 | |
| Alloy steel :15CrMo , 12CrMoV, 12CrlMoV, 10CrMo910, 16Mn(Q345B.C), 42CrMo, F91, F11, F9, 12Cr2Mo, 12MnNb, 1Cr5Mo, Cr15Ni20, F22, 35CrMo, SA333GR6, A350LF3 | |
| Pressure | 3000lbs,6000lbs,9000lbs |
| Temperature | -254°~800° |
| Surface treatment | black plain,pickling |
| Application | Petroleum,chemical,machinery,boiler,electric ,shipbuilding,etc |
| Standard | ASME/DIN/GB/JIS/GOST/CCS/API |
| Min order | 50 piece |
| Delivery time | 7days |
| Payment term | T/T,L/C |
| Packing | carton&wooden box&Pallet or as customer's requirements |
| Product weight | ||||||||||
| SIZE NPS | 90°Elbow | 45°Elbow | ||||||||
| 2M NPT | 3M SW | 3M NPT | 6M SW | 6M NPT | 2M NPT | 3M SW | 3M NPT | 6M SW | 6M NPT | |
| 1/8" | 0.08 | 0.09 | 0.1 | 0.15 | 0.18 | 0.08 | 0.08 | 0.09 | 0.09 | 0.11 |
| 1/4" | 0.08 | 0.09 | 0.15 | 0.15 | 0.3 | 0.08 | 0.08 | 0.17 | 0.16 | 0.27 |
| 3/8" | 0.13 | 0.12 | 0.3 | 0.32 | 0.45 | 0.11 | 0.12 | 0.28 | 0.28 | 0.39 |
| 1/2" | 0.22 | 0.26 | 0.45 | 0.4 | 0.8 | 0.23 | 0.22 | 0.35 | 0.3 | 0.63 |
| 3/4" | 0.35 | 0.35 | 0.7 | 0.73 | 1.31 | 0.29 | 0.28 | 0.59 | 0.59 | 1.07 |
| 1" | 0.5 | 0.53 | 1.14 | 1.17 | 1.61 | 0.43 | 0.43 | 0.96 | 0.9 | 1.27 |
| 1-1/4" | 0.8 | 0.85 | 1.47 | 1.4 | 2.93 | 0.67 | 0.65 | 1.03 | 1.15 | 2.24 |
| 1-1/2" | 1.06 | 1.05 | 2.6 | 2.79 | 3.79 | 0.82 | 0.79 | 2.02 | 2.02 | 2.54 |
| 2" | 1.7 | 1.68 | 2.92 | 3.28 | 7.31 | 1.41 | 1.35 | 2.23 | 2.09 | 4.37 |
| 2-1/2" | 3.58 | 3.5 | 5.99 | 4.8 | 9.88 | 2.6 | 2.53 | 3.71 | 6.1 | 7.01 |
| 3" | 4.81 | 5.38 | 8.85 | 8.85 | 17.73 | 4.23 | 5.1 | 5.97 | / | 14.16 |
| 4" | 10.21 | 11 | 14.85 | / | 15.76 | 9 | 9.41 | 8.96 | / | 11.36 |
Yancheng Jicheng Machinery Co.,Ltd founded in 2007,with nearly
10 years production experience
,is
a professional
committed to forging type high pressure pipe fittings of production-oriented enterprises.
Company registers capital of RMB
5 million
, covers an area of nearly
20 thousand square meters
.
Having all kinds
of forging and machining equipment,a total of more than 60 units.At the same time but also
the pioneer of the domestic
industry to realize the automatic robot production. Company annual output is
RMB 50 million.
Company has obtained the law of Manufacture License of Special Equipment People’s Republic of China
Company has obtained the law of Manufacture License of Special Equipment People’s Republic of China
and ISO9001-2008 certification.Products widely used in more than 10 countries at home and abroad of
petroleum, chemical industry,
nuclear power, shipbuilding, fire protection, metallurgy and machinery, etc.
We are still a young team,but more dynamic and more energetic.Continuously forge ahead, try our best
We are still a young team,but more dynamic and more energetic.Continuously forge ahead, try our best
to win your full
satisfication,which is the goal we always adhere to.
FOB price:$1-3
MOQ:50 piece
Payment terms:T/T,L/C
Terms of payment:20% payment before delivery,payment after the arrival of the goods by 80%
Sample time:7-10 days
Lead time:10 days
Packaging information:carton&wooden box&Pallet or as customer's requirements
Port:Shanghai,Tianjin and Qingdao
Shipment:The sea,road,air,express delivery
