2. waterproof access controller
3. Contains card reader mode. The transmission format could be adjusted by user.
4. Supports different access ways: Entry by Card + Code or Entry by multi cards
5. User capacity: 1000 users
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HMT
-
Model Number:
-
HMT-ST30SK
-
Type:
-
Keypad
-
Name:
-
Access Control System Kit
-
Card Capacity:
-
1000
-
Card Type:
-
EM
-
Access Ways:
-
RFID Cards, Password
-
Waterproof Degree:
-
IP68
-
Work Voltage:
-
DC 12
-
Wiring Connections:
-
Electric lock, Exit Button,DoorBell
-
Usage:
-
Office, Home , School, Factory
-
Size:
-
120x76x27mm
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
OEM, ODM, Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HMT
-
Model Number:
-
HMT-ST30SK
-
Type:
-
Keypad
-
Name:
-
Access Control System Kit
-
Card Capacity:
-
1000
-
Card Type:
-
EM
-
Access Ways:
-
RFID Cards, Password
-
Waterproof Degree:
-
IP68
-
Work Voltage:
-
DC 12
-
Wiring Connections:
-
Electric lock, Exit Button,DoorBell
-
Usage:
-
Office, Home , School, Factory
-
Size:
-
120x76x27mm
Product Description

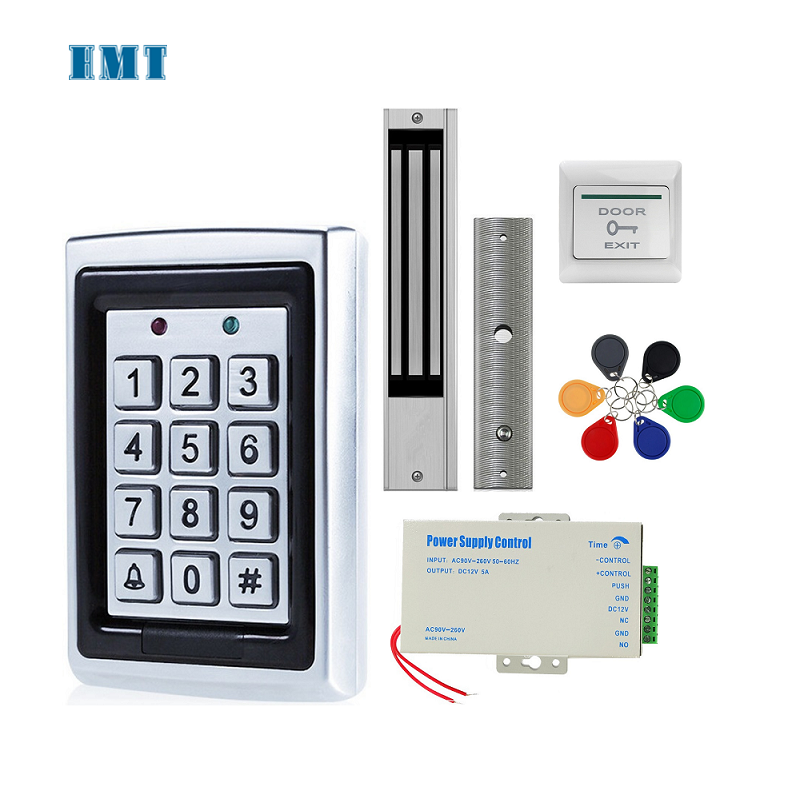

Electric Magnetic Lock 180KG/280KG Metal FRID Keypad Exit Button RFID Key Fobs Access Control System Kit
Features:
1. Read 125KHz EM / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
Specification
Model number: HMT-ST30
Material: Zinc alloy
Indoor & outdoor: Indoor and outdoor
User capacity: 1000
Card type frequency: EM 125KHZ, optional MF 13.56MHZ
Read range: 2-5cm
Door opening time: 0～99s
Opening method: Card, Pin, card+Pin
Password: 4 digit Pin code
Wiegand: WG26 input and output port
Dimension: 120x76x27mm
Weight: 0.51kg/pcs
Working voltage: DC12V±10%
Ambient temperature: -40℃-60℃
Environment humidity: 10%-90%
Model Number: HMT-M280
Material: Zinc Alloy
Product size: 250Lx46Wx25H(mm)
Power supply voltage: 12V, or 24V for optional
Holding Force: 600lbs
Features: LED indicate (red indicate the door is unlock, door is lock there is no light)
Suitable For: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temperature: ≤+20℃
Suitable Temperature: 0~+55°C
Operating Humidity: 0~90%(non-condensing)
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Model number: HMT-KP01
Product Name: Touch Screen LED Door Exit Button Switch
Material: Fireproof PVC Material Faceplate
Product size: 86Lx86Wx20H(mm)
Power supply voltage: 12VDC
Contact output: NO/NC/COM /LED
Maximum current: 3A / 36DC
Endurance test: 1000000 tested
Installation: hollow door frame
Model number: HMT-K3E
Color: Blue,Yellow,Red,Orange,Black,Grey,White or customized
Function: Build RFID chip inside, read/write
Memory: 64bits or depends on different chip
Operating Frequency: 125khz,13.56MHz,or according to the chip
Chip: TK4100 or others
Resistance: IP67
Certificate:ISO,ROHS,FCC,CE
Data Transmission Speed: 106 Kboud
Read Distance: 1-30mm
Read/Write time: 1-3(ms)
Read Times: >100 000
Data Retention: >10 years
Optional Technology: 1) Silk-screen Printing Logo/image/graphic...
2) Laser engraving serial numbers
3) Chip encoding
Wire Diagram
