Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5900*2300*2850MM
-
Machine Weight:
-
2500kgs
-
Bucket capacity:
-
1.0m3
-
Rated power:
-
76kw
-
Rated speed:
-
2200r/min
-
overall dimension(L*W*H):
-
5900*2300*2850MM
-
Distance between axles:
-
2250mm
-
Distance between tyre:
-
1640mm
-
Min ground clearance:
-
300mm
-
System pressure:
-
20Mpa
-
System flow:
-
120L/min
-
Total weight:
-
7600kg
-
Max walking speed:
-
22km/h
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
China Famous
-
Power:
-
76kw
-
Brand Name:
-
TITAN
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5900*2300*2850MM
-
Machine Weight:
-
2500kgs
-
Bucket capacity:
-
1.0m3
-
Rated power:
-
76kw
-
Rated speed:
-
2200r/min
-
overall dimension(L*W*H):
-
5900*2300*2850MM
-
Distance between axles:
-
2250mm
-
Distance between tyre:
-
1640mm
-
Min ground clearance:
-
300mm
-
System pressure:
-
20Mpa
-
System flow:
-
120L/min
-
Total weight:
-
7600kg
-
Max walking speed:
-
22km/h
-
Certification:
-
CE ISO

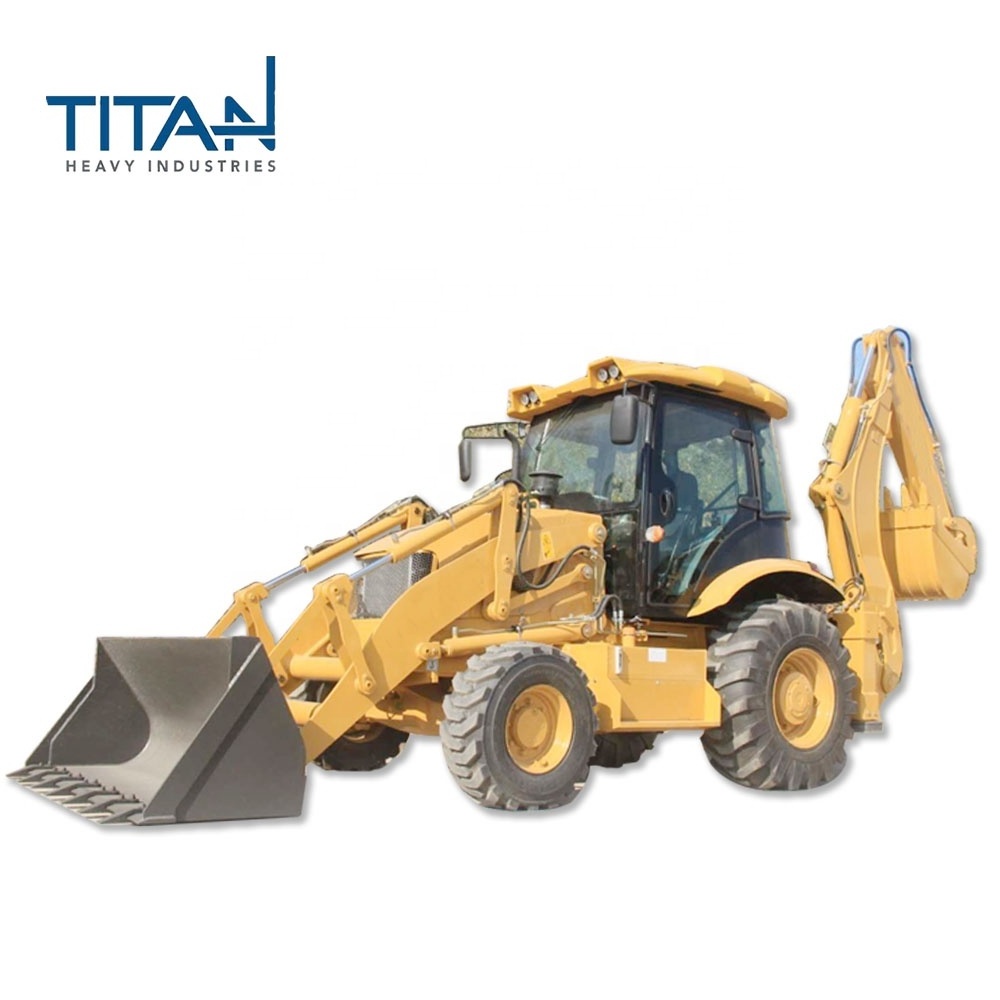

CE ISO SGS OEM TL30-25 2.5t Compact Front Bulldozer Mini Towable Backhoe 2500kg Retroescabadora with Digger
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) CE certificate, 4 wheel drive, whole hydraulic system, Pilot control, joystick, Yuchai engine 85KW (Cummins engine is optional), A leg, side slip function
4) Backhoe quick coupler, Auger, Breaker, Loader quick coupler, Pallet fork, 4 in 1 bucket, A/C, Heater, Anti-roll cab,H- leg
|
SPECIFICATIONS FOR TL30-25 BACKHOE LOADER
|
|
|
|
|||
|
Engine
|
YUNNEI
|
Maximum dumping height
|
3545(mm)
|
|||
|
Emission
|
Nation standard Ⅲ
|
Maximum excavation radius
|
5385(mm)
|
|||
|
Gear-box
|
Four drive
|
Rated power
|
100hp
|
|||
|
Torque ratio
|
2.64
|
Rated running speed
|
2200(r/min)
|
|||
|
Drive axle
|
Four drive
|
Input torque/Running speed/Transmission ratio
|
/2200/5.603
|
|||
|
Tyre
|
Engineering tyre
|
Cooling type
|
Air cooling
|
|||
|
Travelling brake
|
Wet type brake
|
Transmission Ratio( front axle)
|
14.77
|
|||
|
Overall dimension(L*W*H)
|
5900*2320*3500(mm)
|
Transmission Ratio( rear axle)
|
16.15
|
|||
|
Maximum speed
|
36(km/h)
|
Specification( front wheel)
|
20.5-16
|
|||
|
Wheel-center-distance(front wheel)
|
1880(mm)
|
Specification( rear wheel)
|
1670-24
|
|||
|
Wheel-center-distance(rear axle)
|
1730(mm)
|
Operating type
|
Mechanical operating
|
|||
|
Wheelbase
|
2170(mm)
|
Curb weight
|
8180(kg)
|
|||
|
Maximum bucket breakout force
|
53.3(KN)
|
Towing force
|
58(KN)
|
|||
|
Turning radius
|
3950(mm)
|
Total cycle time
|
<=8.8(s)
|
|||
|
Dumping height
|
2660(mm)
|
Maximum bucket rod breakout force
|
29.6(KN)
|
|||
|
Grade ability
|
17（°）
|
Dumping distance
|
780(mm)
|
|||
|
Maximum excavation depth
|
4345(mm)
|
|
|
|||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
