round hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching,
C-channel punching,H-beam punching, I-beam punching,steel plate bending, angle steel ,notching and bending, angle steel
shearing/cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting,
T-bar shearing/cutting, angle bending and pipe notching!
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V/415V/600V
-
Dimension(L*W*H):
-
1640x730x1770mm
-
Motor Power (kW):
-
4
-
Weight (T):
-
1600
Quick Details
-
Nominal Force (kN):
-
60
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLMA
-
Voltage:
-
220V/380V/415V/600V
-
Dimension(L*W*H):
-
1640x730x1770mm
-
Motor Power (kW):
-
4
-
Weight (T):
-
1600

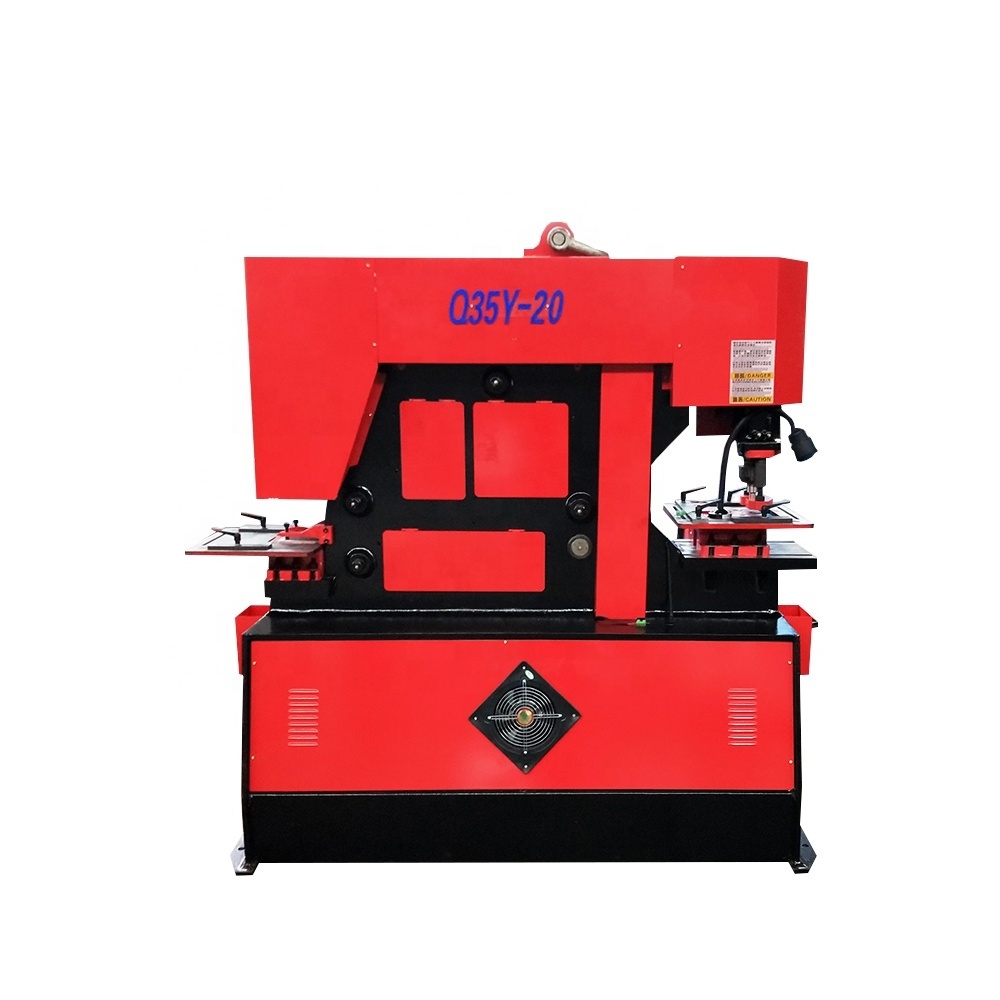

Hydraulic Ironworker
Products Description
Hydraulic Punching and Shearing Machine
Whole structure of the hydraulic iron worker
1.Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
2. BLMA Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come.
Hydraulic system
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance.
3. Being able to work under rated load continuously,stable working and high precision.
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance.
3. Being able to work under rated load continuously,stable working and high precision.
Electrical system and the safety interlock
1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good
anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Emergency stops on machine and foot switch for safety, Foot pedal conforming to CE regulation.
anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Emergency stops on machine and foot switch for safety, Foot pedal conforming to CE regulation.
Details Images
Product Paramenters
|
Type
|
Q35Y-16
|
Q35Y-20
|
Q35Y-25
|
Q35Y-30
|
|
Pressure (ton)
|
60
|
90
|
120
|
140
|
|
Max cutting Thickness (mm)
|
16
|
20
|
25
|
30
|
|
Plate Strength (N/mm)
|
450
|
450
|
450
|
450
|
|
Cutting angle (degree)
|
7
|
8
|
8
|
8
|
|
Cutting size of one stroke (mm)
|
16x250 8x400
|
20x330 10x480
|
25x330 16x600
|
20x355 20x600
|
|
Ram strokes(mm)
|
80
|
80
|
80
|
80
|
|
Number of stroke (cpm)
|
8
|
8
|
6
|
6
|
|
Throat depth (mm)
|
300
|
355
|
400
|
600
|
|
Punching thickness (mm)
|
16
|
20
|
25
|
30
|
|
Max punching diameter (mm)
|
25
|
30
|
35
|
38
|
|
Power of main motor (KW)
|
4
|
5.5
|
7.5
|
11
|
|
Over dimension (mm)
|
1640x730x1770
|
1860x800x2090
|
2355x960x2090
|
2680x1040x2300
|
|
Weight (kgs)
|
1600
|
2000
|
4800
|
6800
|
Our Factory
Product Delivery
Related Products
FAQ
Q: Are you trading company or manufecturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: The delivery time usually 15-20 days. If having machine in stock, then can delivery immediately.
Q: What is your term of payment ?
A: T/T, 30% in advance, the balance before shipment.
