Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rui Feng
-
Model Number:
-
RF
-
Operation type:
-
Reset Latching
-
Material:
-
Brass Nickel Plated
-
Function:
-
OFF-ON
-
Operating temperature:
-
-20°C ~+55°C
-
Terminal type:
-
Pin Teminal(5 pin)
-
Voltage:
-
6v/12v/24/110v/220v/250v/380v
-
Mechanical life:
-
500000times
-
Customized:
-
Acceptable
-
Mounting Hole Size:
-
16mm Diameter
-
Shipping By:
-
Air or sea
-
Certification:
-
CE/CCC
Quick Details
-
Protection Level:
-
IP65 IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rui Feng
-
Model Number:
-
RF
-
Operation type:
-
Reset Latching
-
Material:
-
Brass Nickel Plated
-
Function:
-
OFF-ON
-
Operating temperature:
-
-20°C ~+55°C
-
Terminal type:
-
Pin Teminal(5 pin)
-
Voltage:
-
6v/12v/24/110v/220v/250v/380v
-
Mechanical life:
-
500000times
-
Customized:
-
Acceptable
-
Mounting Hole Size:
-
16mm Diameter
-
Shipping By:
-
Air or sea
-
Certification:
-
CE/CCC

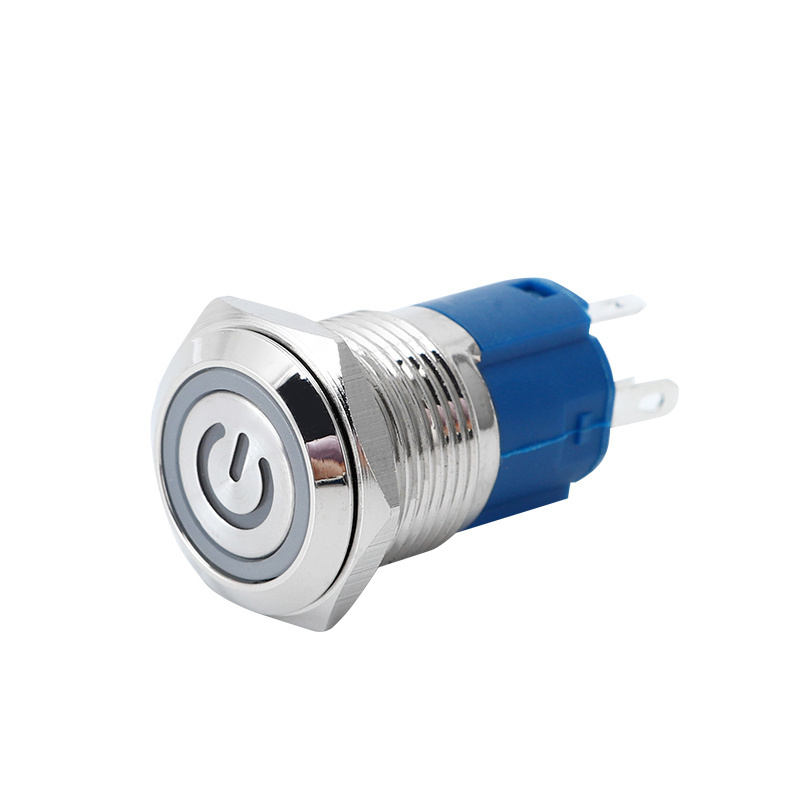

16mm High Quality Momentary Waterproof Flat Or Round Miniature Push Button Latching On Off Micro Switch
Item Name: Waterproof Latching Momentary Push Button Switch
Contact Type:
NO
C means common
NO normally open
NC normally closed
Switch Rating:
AC 250V 3A
Mounting Hole Diameter:
16mm 19mm 22mm
Head Shape:
Dome head
Wide Application :can be used in wet or dusty environment.
Function : waterproof, explosion-proof, shockproof, shockproof , fast installation
| Product Name | Push Button Switch |
| Mounting Hole Diameter | 12mm,16mm,19mm |
| Head shape | High round head/ Flat head |
| Illuminated or not | NO |
| Terminal type | Screw terminals or Pin terminal |
| Shell material/press key Material | Stainless steel/ Brass plating nickel/aluminum oxide color,According to the request |
| Nut | Brass Plated Nickel |
| Base/Bottom/Insert | High flame retardant PA66 |
| Solder pin | Silver plated/gold |
| Switch Combination | 1NO-Normally open |
| Operation mode | Instantaneous |
| Operation types | Momentary or Latching |
| Protection Level | IP65, IK08 |
| Ambient temperature | -20 ℃ ~+55 ℃ |
| Contact resistance | ≤ 50mΩ |
| Insulation resistance | ≥1000mΩ |
| Dielectric strength | 1500VAC |
| Nut torque | 5~14Nm |
| Panel thickness | ≤ 10mm |
| Accessories | O-ring, Nut |
| Customized requirement | Acceptable |
