【Powerful Motor & Strong Stability】 The 12V linear actuator is equipped with a strong 3000N motor. With 5.9 inch (150mm) stroke length, 5 mm/s travel speed, this 12 volt actuator could enable much bigger thrust force tasks compared to other 1500N actuators. Built-in limit switch that can stop at any position, it will automatically stop when the linear actuator reaches the top. Moreover, the actuator base adopts the all built-in design, which is more stable compared with ordinary design.
【Upgraded Construction & Low Noise】 - The electric actuator 12V is made of aluminum alloy material, high hardness, corrosion resistance and quakeproof. The internal gear of the actuator motor is upgraded to high-strength engineering plastic worm gear with low noise (≤50dB sound), large self-locking force, and strong durability. The upgrade construction makes the actuator motor high stability and long service life.
【Flexible Retract & Extend Function】 - The linear actuators kit comes with 3 position & momentary reverse polarity toggle switch, and push the switch to the"UP" or "DOWN", realizing the flexible retract & extend of the liner actuator. Furthermore, as the switch is released, the 12V linear actuator will be locked at your wanted position. Therefore, the motion control can be easily and safely implemented to meet your specific needs.
【Diverse Application Scenarios】 - This heavy duty linear actuator is robust and can withstand harsh working environments, enabling automation in home, outdoor, medical, agricultural and other fields. The electric actuator could perform tasks much efficiently and safely compared to manual operation. All in all, this actuator 12V could widely applied to window opener, electric sofa, electric wheelchair, electric nursing bed, automatic door opener, industrial electric lifting system, etc.

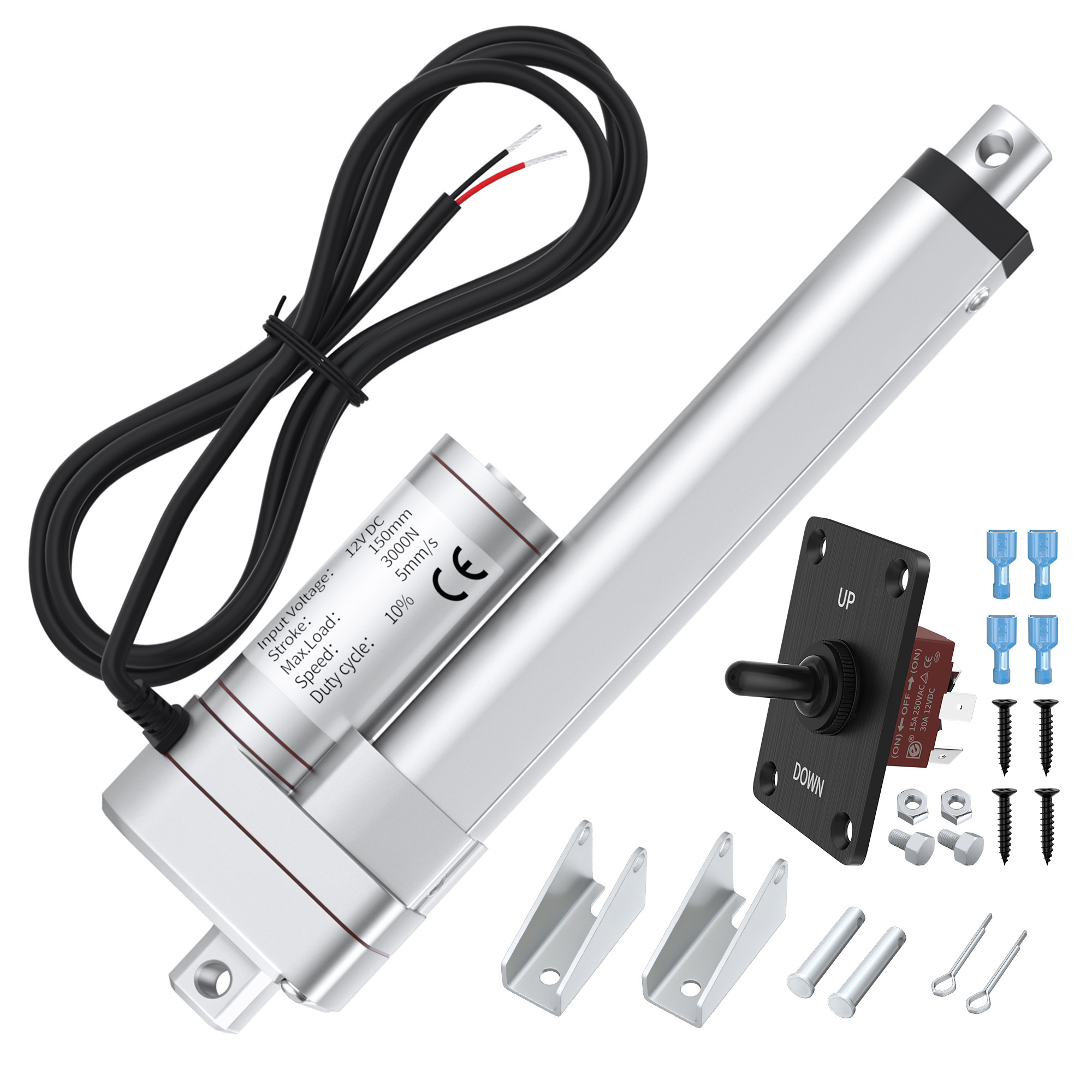

【Complete Parts & Easy Installation】 - The package includes 1 x electric actuator 12V, 2 x set of mounting brackets, 1 x 12V reverse polarity switch, 1 x switch up down mounting panel, 1 x switch waterproof cap cover, 4 x switch mounting screws. The linear actuator kit is easy to install and use, which can be adapted to any operating system. Furthermore, both ends of the actuator are made of metal material which could avoid actuator breakage due to excess weight, extending its service life.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
CHIAN
-
Brand Name:
-
DAIER
-
Model Number:
-
LA03S-12-A1-280-150-C11, LA03S-12-A1-280-150-C11
-
Item:
-
3000N/660lbs Motion Actuator
-
Material:
-
Aluminum Alloy
-
Duty Cycle:
-
10%
-
Stroke Length:
-
6"/150mm
-
Noise Lever:
-
50 dB
-
Rating:
-
20A 12VDC/ 10A 24VDC
-
Toggle Switch:
-
(On)-Off-(On)
-
Switch Rating:
-
30A 12VDC ; 20A 125VAC ; 15A 250VAC
-
OEM or ODM:
-
OEM
Quick Details
-
Speed(RPM):
-
5 mm/s
-
Continuous Current(A):
-
30A 12VDC ; 20A 125VAC ; 15A 250VAC
-
Efficiency:
-
IE 1
-
Place of Origin:
-
CHIAN
-
Brand Name:
-
DAIER
-
Model Number:
-
LA03S-12-A1-280-150-C11, LA03S-12-A1-280-150-C11
-
Item:
-
3000N/660lbs Motion Actuator
-
Material:
-
Aluminum Alloy
-
Duty Cycle:
-
10%
-
Stroke Length:
-
6"/150mm
-
Noise Lever:
-
50 dB
-
Rating:
-
20A 12VDC/ 10A 24VDC
-
Toggle Switch:
-
(On)-Off-(On)
-
Switch Rating:
-
30A 12VDC ; 20A 125VAC ; 15A 250VAC
-
OEM or ODM:
-
OEM
|
Item
|
3000N/660lbs Motion Actuator 5.9" Stroke Electric Actuator 12V DC Stroke Linear Actuator With Controller Reverse Polarity Switch
|
|
Model Number
|
LA03S-12-A1-280-150-C11
|
|
Usage
|
Home, Outdoor, Medical, Agricultural, etc
|
|
Type
|
GEAR MOTOR
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brush
|
|
Input Voltage
|
12 VDC
|
|
Max Push Load
|
3000N/660LBS
|
|
Material
|
Aluminum Alloy
|
|
Duty Cycle
|
10%
|
|
Stroke Length
|
6"/150mm
|
|
Noise Lever
|
50 dB
|
|
Travel Speed
|
5 mm/s
|
|
Toggle Switch
|
(On)-Off-(On)
|
Product Description
About LA03S-12-A1-280-150-C11
Product Show
WORK SHOP
3000N/660lbs Motion Actuator 5.9" Stroke Electric Actuator 12V DC Stroke Linear Actuator With Controller Reverse Polarity Switch
EXHIBITION
OUR TEAM
PRODUCT CERTIFIED
FAQ
1.Who we are?
Yueqing Daier was established in 2003, professional in manufacturing push switch, indicator light, enjoy a good
reputation in China and overseas.
Growing from Strength to strength to become the excellent factory in same industry.
2.Why choose us?
-OEM/ODM Accept.
-Specialized in this line for 5 years.
-small order or sample order can be accepted.
-Factory supply directly, cheap price quality assurance.
-Yueqing Daier for your chose.
-Professional after -sale service.
3.Our Payment & Logistics?
Payment terms:TT/West Union/L/C PayPal.
Shipping terms: DHL, UPS, FEDEX, TNT, EMS.
Sample order delivered within 24 hours , order lead time within 3 days.
Sample available: Yes.
FOB Port: Guangzhou.Ningbo
4.What can you get from us?
1.Excellent products (unique design, strict quality control ).
2.Great service(OEM,ODM, after-sales services, fast delivery).
3.Professional business consultation.
5.payment method ?
Paypal, T/T, Western Union, MoneyGram , or other method.Ship worldwide by sea,by air or by express like DHL, UPS, and so on.
