Suitable for flat printing of glass, CDs, nameplates, stickers, credit cards, ceramic
decals, wooden toy puzzles and PCB, SMT solder paste, membrane switches and other products in the electronics industry. It is also suitable for gold and silver cardboard and metal sheets. , PVC, etc. as the base material, flat printing of products with high overprint accuracy requirements.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Dimensions(L*W*H):
-
1460*1150*1650mm
-
Weight:
-
522 KG
-
Certification:
-
CE ISO9001
-
Type:
-
Silk Screen Printing Machine
-
Feature:
-
Simple Operation
-
Printing color:
-
Single One Time
-
Printing speed:
-
500~1200pcs/h
-
Station:
-
2 Station
-
Gross Power:
-
3.2kw
-
Gross Weight:
-
552kg
-
Printing type:
-
Automtic Screen Printing Machine
-
Operation:
-
Easy Operation
-
Material:
-
Steel
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Dimensions(L*W*H):
-
1460*1150*1650mm
-
Weight:
-
522 KG
-
Certification:
-
CE ISO9001
-
Type:
-
Silk Screen Printing Machine
-
Feature:
-
Simple Operation
-
Printing color:
-
Single One Time
-
Printing speed:
-
500~1200pcs/h
-
Station:
-
2 Station
-
Gross Power:
-
3.2kw
-
Gross Weight:
-
552kg
-
Printing type:
-
Automtic Screen Printing Machine
-
Operation:
-
Easy Operation
-
Material:
-
Steel
Product Description

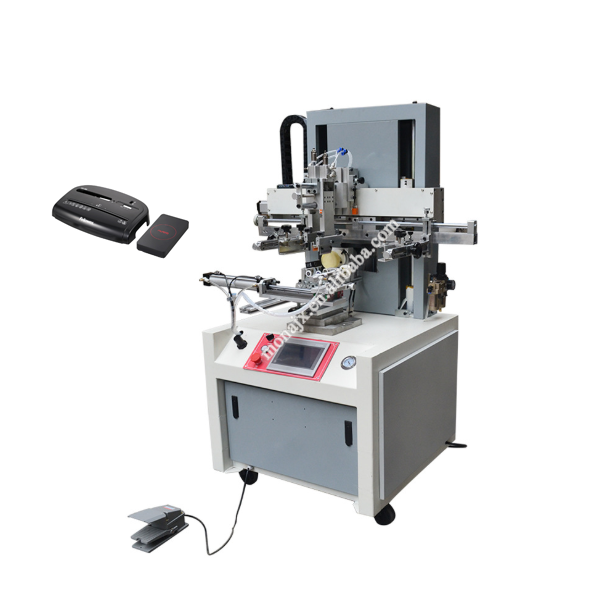

Introduction of Silk Screen Printing Machine:
For high-precision printing, such as high-tech electronics industry, chromatography,
screen dot printing, and etc.. Compared with oblique arm screen printing machine, the efficiency is low, but the accuracy is higher.
screen dot printing, and etc.. Compared with oblique arm screen printing machine, the efficiency is low, but the accuracy is higher.
Application
Application of Silk Screen Printing Machine:
Performance characteristics
Main performance of Silk Screen Printing Machine:
1. Vertical structure, the vertical lifting of the screen adopts frequency conversion electric type, and the left and right
movement of the printing head adopts frequency conversion electric drive.
movement of the printing head adopts frequency conversion electric drive.
2. Microcomputer control circuit, printing and screen lifting are all driven by independent motors.
3. The switching of printing/re-inking turret is driven by a Taiwan brand cylinder, and the photoelectric eye controls the stroke and is independently adjusted.
4. There are three modes of manual/semi-automatic/full-automatic, printing indirect time digital control.
5. Independently designed head lifting device, squeegee/returning knife, screen loading and unloading and screen cleaning are convenient.
6. The left and right net clamp arms with double guide posts, and the plate distance adjustment device is installed at the same time, which is convenient for adjustment.
4. There are three modes of manual/semi-automatic/full-automatic, printing indirect time digital control.
5. Independently designed head lifting device, squeegee/returning knife, screen loading and unloading and screen cleaning are convenient.
6. The left and right net clamp arms with double guide posts, and the plate distance adjustment device is installed at the same time, which is convenient for adjustment.
Specification
|
Model
|
MN-5080ST
|
|
Maximum printing area
|
500*800mm
|
|
Platform size
|
600*900mm
|
|
Largest screen frame
|
800*1200mm
|
|
Maximum printing times
|
1000（PCS/H）
|
|
Printing thickness
|
≤30mm
|
|
Printing pressure
|
4.0～6.0 kfg/c㎡
|
|
Power/voltage
|
3.2kw/380V/50HZ
|
|
Machine size
|
1460*1150*1650mm
|
|
Weight
|
522kg
|
