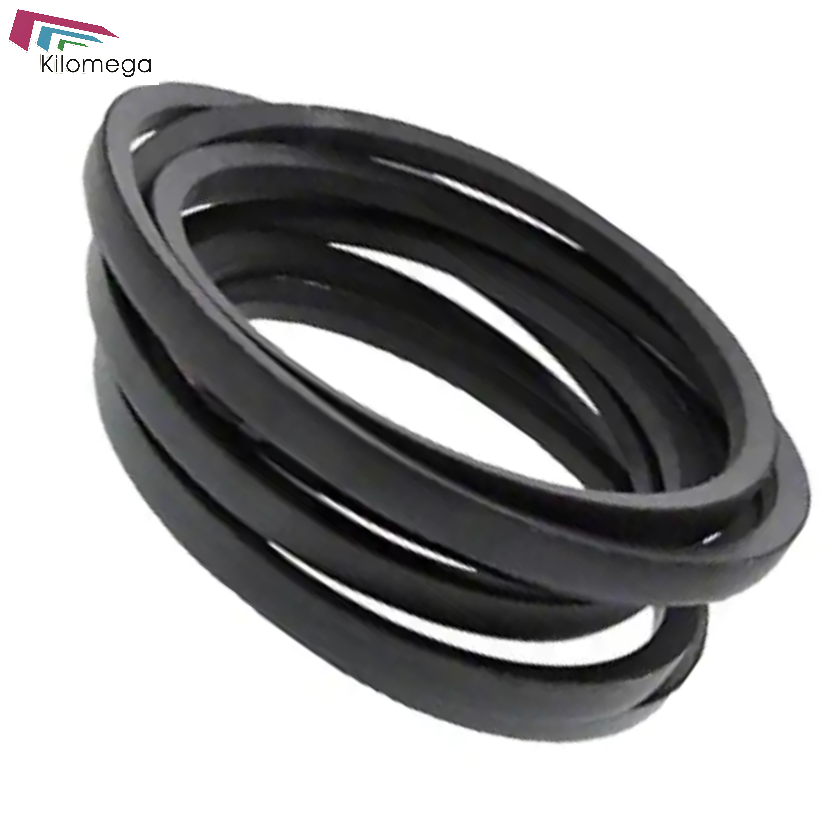

High quality type A B C D E Generator Pulley Transmission triangle V belt Rubber Fan wrapped narrow banded joint V belt

High quality type A B C D E Generator Pulley Transmission triangle V belt Rubber Fan wrapped narrow banded joint V belt

FOB Reference Price: Get Latest Price

≥50 Pieces

US $0.72

≥200 Pieces

US $0.63

≥500 Pieces

US $0.54

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: V-BELT

Material:: Rubber

Place of Origin:: Zhejiang, China

Brand Name:: kilomega

Product Name:: High quality type A B C D E classical wrapped rubber v belt

Color:: Black

Application:: Industrial Machinery

Feature:: Wear Resistance

Standards:: ISO

MOQ:: 50pcs

Keyword:: v belt

Delivery Time:: 7-15 Days

Quick Details

Warranty:: 3 years

Applicable Industries:: Building Material Shops, Manufacturing Plant, Farms

Standard or Nonstandard:: Standard

Type:: V-BELT

Material:: Rubber

Place of Origin:: Zhejiang, China

Brand Name:: kilomega

Product Name:: High quality type A B C D E classical wrapped rubber v belt

Color:: Black

Application:: Industrial Machinery

Feature:: Wear Resistance

Standards:: ISO

MOQ:: 50pcs

Keyword:: v belt

Delivery Time:: 7-15 Days

Products Description

Property of the timing belt

Crack resistant

Anti-seismic pull

hard to deform

corrosion-resistant

non-rebound

Long service life

Safe and simple operation

Heat resistant

Double sided timing belt

Double sided timing belt can be divided into two types：

DA with symmetrical teeth

DB with staggered teeth

Structure

Belt body: high quality synthetic CR rubber

Reinforcement: excellent quality fiberglass cord

Belt teeth: protected by highly wear resistant nylon elastic fabric

Top rubber: NR,SBR

Reinforcement: Polyester cord

Buffer rubber: NR,SBR

Outside fabric: Polyester cotton canvas

Product specification

Timing belt for automobile

Industrial timing belt

Toothed industrial timing belt

Timing belt for automobile

Type	Pitch	Tooth height	With thick	Inter-Tooth Space	Rr	Ra
ZA	9.525	1.91	4.1	0.686	0.51	0.51
MR	9.525	3.54	5.69		0.76	2.5
RU	9.525	2.29	4.5	0.686	1.02	1.02
ZBS	9.525	2.8	5.1	0.686	1	3.6
Y(MY)	8.000	3.06	5.21		0.3	2.2
ZD	9.525	3.5	5.5	0.686	0.76	2.45
SBM	8.000	3.04	5.2	0.686	0.64	0.11
YU	8.000	3.05	5.2		0.3	0.078

We provide customers with different types of specified industrial timing belts

Type	Pitch	tooth thickness	With thick	Angle	Minimum allowable diameter（mm）	m（kgs）
MXL	2.032	0.51	1.14	40	15	0.0014
XXL	3.175	0.76	1.52	50		0.0018
XL	5.080	1.27	2.30	50	15	0.0025
L	9.525	1.91	3.60	40	20	0.0035
H	12.700	2.29	4.30	40	40	0.0047
XH	22.225	6.35	11.20	40	70	0.011
XXH	31.750	9.53	15.70	40	100	0.0132

H/S Toothed industrial timing belt

toothed belt number	Pitch	Tooth height	With thick	Inter-Tooth Space	Minimum allowable diameter（mm）	m（kgs）
H	2M	2	0.75	1.36	15	0.0023
		3M	3	1.17	2.4	15	0.0029
		5M	5	2.06	3.8	25	0.0038
		8M	8	3.36	6	40	0.0066
		14M	14	6.02	10	80	0.0111
		20M	20	8.4	13.2		0.0177
S	S2M	2	0.76	1.36	15	0.0023
		S3M	3	1.14	2.2	15	0.0029
		S4.5M	4.5	1.71	2.81	25	0.0033
		S5M	5	1.91	3.4	25	0.0037
		S8M	8	3.05	5.3	40	0.0057
		S14M	11	5.3	10.2	80	0.0106
RPP/HPPD	RP2M	2	0.76	1.36	15
		RP3M	3	1.15	1.9	15	0.0029
		RP5M	5	1.95	3.5	25	0.0037
		RP8M	8	3.2	5.5	40	0.0057
		RP14M	14	6	10	80	0.0106

Application scenarios

Timing belts are widely used in application scenarios： Timing belts are widely used in household cars, industrial equipment, agricultural equipment, etc.

Automotive equipment timing belt

Timing belts for agricultural equipment

printing equipment timing belt

Timing belt for engraving equipment

Industrial equipment timing belt

Timing belt for textile equipment
