Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
420*440*495
-
Weight:
-
47
-
Rated power/speed:
-
6.3 kW/3600 r/min
-
Key Selling Points:
-
high quality
-
Product name:
-
Single Cylinder Engine
-
Engine Model:
-
EM186FA
-
Rated Power:
-
5.7 kW/3000r/min, 6.3 kW/3600r/min
-
Engine type:
-
Single-cylinder,vertical,air-cooled,4-stroke, direct injection
-
BORE*STROKE:
-
86*70 mm
-
Compress Ratio:
-
19:1
-
Starting system:
-
Recoil/ElectricStarter
-
Packing:
-
420/440/495 mm
-
Net Weight:
-
47KG
Quick Details
-
Displacement:
-
418CC, 0.418 L
-
Emission Standard:
-
EURO 5
-
Power:
-
10hp
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
420*440*495
-
Weight:
-
47
-
Rated power/speed:
-
6.3 kW/3600 r/min
-
Key Selling Points:
-
high quality
-
Product name:
-
Single Cylinder Engine
-
Engine Model:
-
EM186FA
-
Rated Power:
-
5.7 kW/3000r/min, 6.3 kW/3600r/min
-
Engine type:
-
Single-cylinder,vertical,air-cooled,4-stroke, direct injection
-
BORE*STROKE:
-
86*70 mm
-
Compress Ratio:
-
19:1
-
Starting system:
-
Recoil/ElectricStarter
-
Packing:
-
420/440/495 mm
-
Net Weight:
-
47KG
Product Overview
Main Date
Features & Benefits
Options
Product Specification

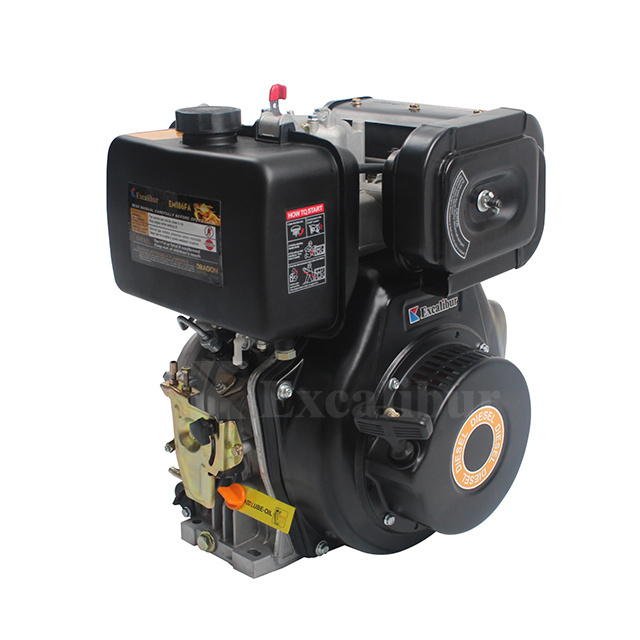

2020 hot new diesel engine electronic start single cylinder air-cooled 4-stroke machinery engine
DRAGON SERIES,DRAGON POWER
|
Model
|
EM186FA
|
|
Type
|
Single-cylinder， vertical， air-cooled， 4-stroke， direct injection
|
|
Bore×Stroke
|
86 × 70 mm
|
|
Displacement
|
0.406 L
|
|
Compression
ratio |
19:01
|
|
Rated power/ Rated speed
|
5.7 kW/3000 r/min, 6.3 kW/3600 r/min
|
|
Lowest rotation speed at zero load
|
≦1300 r/min
|
|
Lubricating system
|
Pressure splashed
|
|
Starting system
|
Recoil starter/Electric starter
|
|
Rotation direction
|
Anticlockwise
|
|
Fuel type
|
0#, -10#, -20# diesel
|
|
Fuel tank capacity
|
5.5 L
|
|
Fuel consumption/related rotation speed
|
275.1 g/kW.h/3000 r/min, 281.5 g/kW.h/3600 r/min
|
|
Lube oil type
|
CD grade or SAE 10W-30, 15W-40
|
|
Starting motor capacity
|
12 V 0.8 kW
|
|
Charging generator capacity
|
12 V 3 A
|
|
Battery capacity
|
Above 12 V 36 Ah
|
|
Overall dimension
|
420 x 440 x 495 mm
|
|
Dry weight
|
≤47 kg(recoil starter) ≤52 kg(electric starter)
|
FAQ
Q: What is your MOQ of this item? How long is your processing time for MOQ?
A: 1 set. Within TWO working days or 48 hours....
Q: Is the engine customized?
A: Yes. Engines can be customized according to customers design....
Q: What is your company production capacity?
A: 5000 sets per month....
Q: How long is your warranty?
A: 1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order....
Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers.Paypal is accepted for one set, but please discuss to our sales person first....
Q; Is it alright to make customer's own brand name?
A: Sure, as long as you authorize us to use your brand on your behalf.We have over 5 years OEM/ODM experience....
