Quick Details
-
Warranty:
-
3months-1year
-
Brand Name:
-
Zhiwang
-
Model Number:
-
ZW-6565-2V
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
65mm*65mm*2.5mm
-
Weight:
-
20g
-
Max voltage:
-
2V
-
open voltage:
-
2.5V
-
Power:
-
0.8W
-
Short Current:
-
0.6A
-
Max Current:
-
0.4A
-
Number of Cells:
-
4
-
Operating temperature:
-
-40°C to +85°C
-
Material:
-
pcb brand, POLY
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC
-
Panel Efficiency:
-
18% - 21%
-
Warranty:
-
3months-1year
-
Brand Name:
-
Zhiwang
-
Model Number:
-
ZW-6565-2V
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
65mm*65mm*2.5mm
-
Weight:
-
20g
-
Max voltage:
-
2V
-
open voltage:
-
2.5V
-
Power:
-
0.8W
-
Short Current:
-
0.6A
-
Max Current:
-
0.4A
-
Number of Cells:
-
4
-
Operating temperature:
-
-40°C to +85°C
-
Material:
-
pcb brand, POLY

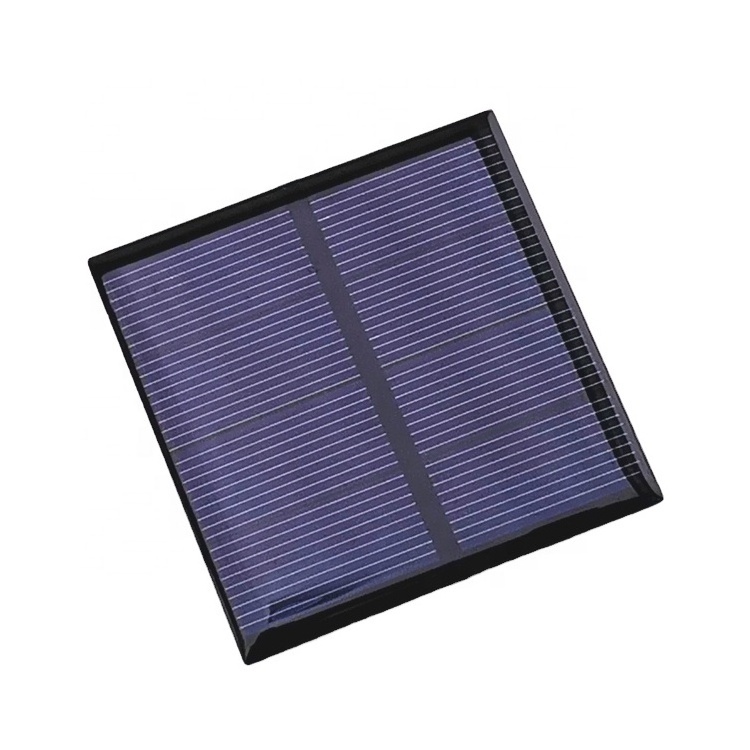

ZW-6565-2V Strong Durable 2V 400mA Poly 0.8W Mini Epoxy Resin Encapsulation Solar Panel
|
Model: |
ZW-6565-2V |
|
|
Brand: |
Zhiwang |
|
|
Size: |
65x65x2.5mm |
|
|
Material: |
Poly-silicon drop gel can be customized |
|
|
Battery: |
4 |
|
|
Peak power: |
0.8W |
|
|
Max voltage: |
2.0V |
|
|
Max current: |
0.4A |
|
|
Open voltage: |
2.5V |
|
|
Short current: |
0.6A |
|
|
Weight: |
25G |
|
|
Keyword: |
Lightweight Silicon Solar PV Module |
|
|
Raw Material: |
Poly-crystalline Silicon Epoxy Adhesive Printed Circuit Board (PCB) can be customized |
|
|
Product |
Certification: CE EMC ROHS |
|
|
Color: |
Customize |
|
|
Warranty Period |
Replacement for manufacturing defects within 5 years |
|
|
Optimized cell efficiency: |
17%-19% |
|
|
Operating temperature: |
-40°C to +85°C |
|
|
Power Output |
3 year:80% of its nominal power rating |
|
|
Warranty Period |
Replacement for manufacturing defects within 5 years |
|
|
Certificates |
CE, RoHS, EMC |
|
|
Maximum system voltage |
5VDC |
|
|
Maximum System Voltage |
5V(UL)/10V(IEC) DC |
|
|
Maximum Rated Current Series |
1A |
|
|
Current temperature coefficient |
%/K |
0.06+/-0.01 |
|
Voltage temperature coefficient |
mV/K |
-(78+/-10) |
|
Power temperature coefficient |
%/K |
-(0.5+/-0.05) |
WARRANTY
* 10 year Product Workmanship Warranty
* Quality solar cells with high solar energy conversion up to 19.5%.
* Mono-crystalline or poly-crystalline silicon solar cells are for options.
* Transparent low-irom tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
* Rigorous quality control meeting the highest international standards;
* ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to 19.5%.
11. Mono-crystalline or poly-crystalline silicon solar cells are for options.
12. Transparent low-irom tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
13. Lifespan up to 25 years.
14. Rigorous quality control meeting the highest international standards;
15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, we can deal with OEM & ODM, customization available.
Q. Is it OK to print my logo on solar paenl product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q.How many years for warranty?
A: Our warranty is 5 -10 years.
Zhiwang New Energy attaches great importance to the development of new products.
In the past 15 years, the company has been developing itself.
