Quick Details
-
Dimension(L*W*H):
-
According to different models
-
Weight:
-
7500 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Drum Wood Chipper Log Chips Chipping Machine For Biomass Making
-
Max.Diameter:
-
350mm
-
Main motor power:
-
110kw
-
Oil pump motor power:
-
1.5*1kw
-
Conveyor motor power:
-
3+4kw
-
Outline Dimension:
-
1800*1900*1210 (mm)
-
Inlet size:
-
500*710mm
-
Discharge motor power:
-
3+4kw
-
Weght:
-
7500kg
-
Woodchips size:
-
30-50mm
Quick Details
-
Use:
-
Making wood into pieces
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BEDO
-
Dimension(L*W*H):
-
According to different models
-
Weight:
-
7500 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Drum Wood Chipper Log Chips Chipping Machine For Biomass Making
-
Max.Diameter:
-
350mm
-
Main motor power:
-
110kw
-
Oil pump motor power:
-
1.5*1kw
-
Conveyor motor power:
-
3+4kw
-
Outline Dimension:
-
1800*1900*1210 (mm)
-
Inlet size:
-
500*710mm
-
Discharge motor power:
-
3+4kw
-
Weght:
-
7500kg
-
Woodchips size:
-
30-50mm

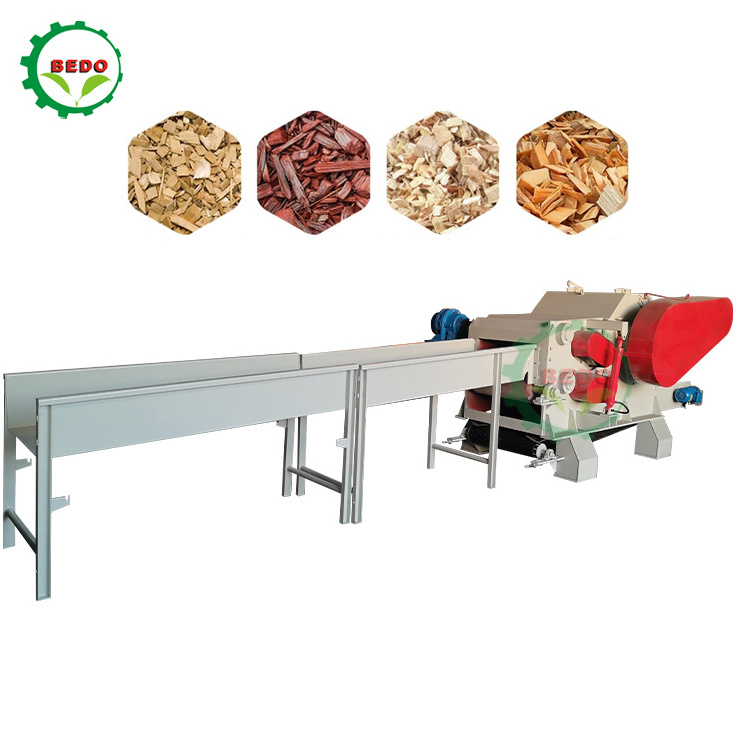

CE Approved Drum Rotary Wood Chipper Firewood Chips Making Machine Drum Bamboo Chipper For Sale
This wood chipper machine equipped with 2-6 blades on the cutter, blades was casting by alloy with high strength.
With reasonable design and has a wide adaption of raw material, this machine is the top facility of processing wood log and panel with high efficiency
With reasonable design and has a wide adaption of raw material, this machine is the top facility of processing wood log and panel with high efficiency
Product Description
Features
1. The machine main structure is made of thick high strength carbon steel, cutter and blades are made of high strength wearable alloy steel.
2. High capacity, from 3-30 ton per hour
3. Power could be electrical or diesel, from mini size to big size, fixed or mobile type.
4. Labour force saving, only two person could operate the machine independently.
5. The feed chute of this wood chipper have two types, horizontal (for long wood logs) and tilting (raw material less than 2
meters)
2. High capacity, from 3-30 ton per hour
3. Power could be electrical or diesel, from mini size to big size, fixed or mobile type.
4. Labour force saving, only two person could operate the machine independently.
5. The feed chute of this wood chipper have two types, horizontal (for long wood logs) and tilting (raw material less than 2
meters)
Specification
|
Model
|
BD-BX215
|
BD-BX216
|
BD-BX218
|
BD-BX2113
|
|
Inlet size(H*W) (mm)
|
170*430
|
240*540
|
500*710
|
400*700
|
|
Blades number (pcs)
|
2
|
2
|
2
|
2
|
|
Knife roller speed (turn)
|
590
|
590
|
590
|
420
|
|
Max. Diameter (mm)
|
170
|
250
|
350
|
380
|
|
Woodchips size (mm)
|
25-35
|
30-35
|
25-35
|
25-35
|
|
Capacity (T/h)
|
4-6
|
7-8
|
12-15
|
25-30
|
|
Main motor power (kw)
|
37
|
55
|
110
|
220
|
|
Feed roller motor power
(kw) |
3+2.2
|
3+4
|
4+4.5
|
7.5+7.5
|
|
Oil pump motor power (kw)
|
1.5*1
|
1.5*1
|
1.5*1
|
3*1
|
|
Weight (kg)
|
3200
|
4500
|
7500
|
18000
|
|
Outline Dimension (mm)
|
2300×1240×1420
|
2750×1900×1650
|
3250×2150×1900
|
3670*2517*2050
|
|
Conveyor motor power (kw)
|
3
|
3
|
4
|
7.5
|
Detailed images
Customer Feedback
Packing & Delivery
1. Delivery time: 10 days after the payment
2.The wood chips need to be packed in wood case or full container
