- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v 50hz
-
Power:
-
4kw
-
Weight:
-
270 KG
-
Dimension(L*W*H):
-
880*500*1000mm
-
Year:
-
2024
-
Product name:
-
coconut meat grindering machine
-
Application:
-
coconuts
-
Capacity:
-
1t/h
-
Function:
-
grinding
-
Material:
-
304 Stainless Steel
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
-
Feature:
-
High Efficiency Low Cost
-
Processing Types:
-
Fruits Process Equpiment
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Antler
-
Type:
-
grinder
-
Voltage:
-
380v 50hz
-
Power:
-
4kw
-
Weight:
-
270 KG
-
Dimension(L*W*H):
-
880*500*1000mm
-
Year:
-
2024
-
Product name:
-
coconut meat grindering machine
-
Application:
-
coconuts
-
Capacity:
-
1t/h
-
Function:
-
grinding
-
Material:
-
304 Stainless Steel
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
-
Feature:
-
High Efficiency Low Cost
-
Processing Types:
-
Fruits Process Equpiment
-
Advantage:
-
Easy Operation High Efficiency
Product Description

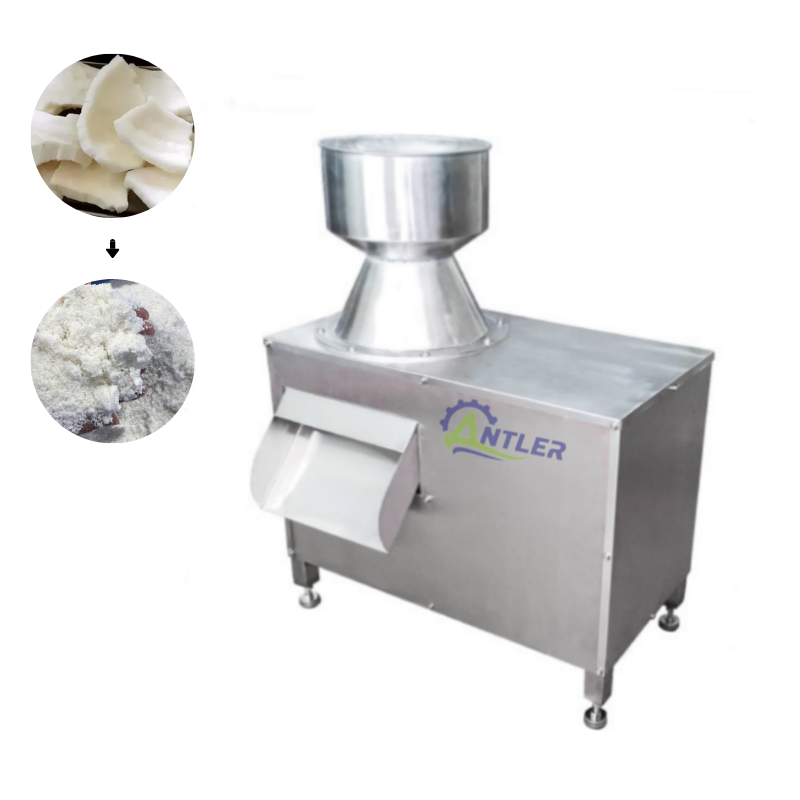

COCONUT MEAT GRINDER
The multifunctional crusher utilizes the principle of rotary grinding to crush materials into small particles.
Widely used in fresh coconut meat, pumpkin, potatoes, green and red peppers, carrots, lotus roots, celery, ginger, purple cabbage, Chinese cabbage, bamboo shoots, pickled tube shoots, Dendrobium officinale, fresh plants and other materials; Fresh wheat seedlings, fresh leaves, and other difficult to treat materials containing high crude fiber; It can also be used to crush cooked animal bones.
The contact parts between the equipment and materials are all made of SUS304 stainless steel, which is safe and hygienic; The equipment has many advantages such as simple operation, convenient adjustment of crushing particle size, uniform crushing fineness, simple cleaning and maintenance.
1.Structure:
Referring to the schematic diagram of the coconut meat grinder structure, the machine is mainly composed of a frame, an inlet and outlet hopper, a toothed knife, a cutterhead, a bearing mechanism, a transmission mechanism, a motor, etc.
2.Working principle:
During operation, the motor drives the cutter head to rotate at high speed through a pair of V-belt wheels and a bearing frame and bearing mechanism. The cutter head is equipped with several toothed blades, which are made of wear-resistant and high hardness alloy. Coconut meat freely falls into the feed hopper and is ground by a high-speed rotating toothed knife. The ground material falls into the discharge hopper through the gap between the cutterhead and the cutterhead cover. Realize grinding function. The overall rotor assembly is equipped with a lifting and adjusting mechanism, which can adjust the gap between the cutterhead and cutterhead cover, thereby adjusting the grinding fineness of coconut meat.
Specification
|
Model
|
Capacity
|
Power
|
Dimension
|
Weight
|
|
YMJ-1
|
1t/h
|
4KW
|
880*500*1000mm
|
270kg
|
|
YMJ-1.5
|
1.5t/h
|
7.5KW
|
1100*600*1100mm
|
330kg
|
|
YMJ-2
|
2t/h
|
11.5KW
|
1300*1100*1250mm
|
450kg
|
|
YMJ-3
|
3t/h
|
15KW
|
1500*1280*1500mm
|
620kg
|
