Quick Details
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2500*1400*2000
-
Weight:
-
1300 kg
-
Model name:
-
mobile lifting platform
-
Application:
-
Loading scissor lift table electric
-
Lifting height:
-
8 m
-
Lifting speed:
-
3-6 m/min
-
Color:
-
Customers' Requirements
-
Platform size:
-
2500*1400
-
Capacity:
-
1.5t
-
Pump:
-
Hydraulic Unit Pump
-
Scissor:
-
Scissor lift table
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
KONOVI
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2500*1400*2000
-
Weight:
-
1300 kg
-
Model name:
-
mobile lifting platform
-
Application:
-
Loading scissor lift table electric
-
Lifting height:
-
8 m
-
Lifting speed:
-
3-6 m/min
-
Color:
-
Customers' Requirements
-
Platform size:
-
2500*1400
-
Capacity:
-
1.5t
-
Pump:
-
Hydraulic Unit Pump
-
Scissor:
-
Scissor lift table
Product Description

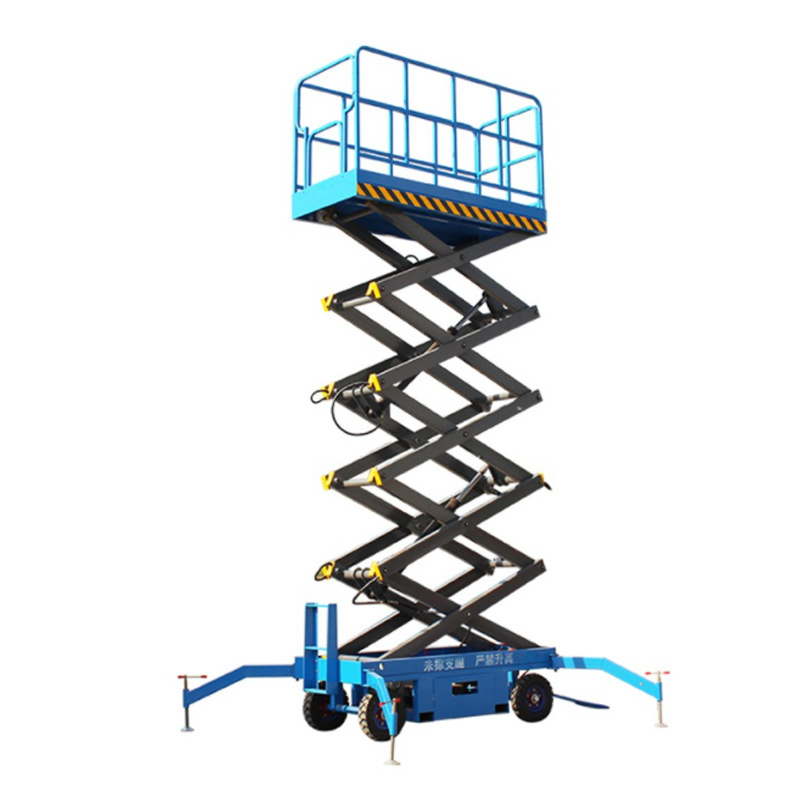

custom mini mobile truck lift aerial man drive lifting platform
Lift table adopts modern design such as modularization, light weight, commonalization and intelligence and provides large lift capacity and high reliability.
Mobile Scissor Lifts have lifting heights ranging from 4m to 20m, and platform capacity from 300kg
to 2000kg.
Selected steel, stable lifting, can carry heavy objects, automatic fast folding, space saving, easy to move, up to 26 meters,adapt to various environmental operations.
to 2000kg.
Selected steel, stable lifting, can carry heavy objects, automatic fast folding, space saving, easy to move, up to 26 meters,adapt to various environmental operations.
Specification
|
Mobile scissor lift platform
|
Table size mm
|
Load kg
|
Net height m
|
Dimensions mm
|
Weight kg
|
|
SJY0.5-4
|
1800*820
|
500
|
4
|
1900*960*1200
|
700
|
|
SJY0.5-6
|
1800*820
|
500
|
6
|
1900*960*1280
|
750
|
|
SJY0.5-8
|
1800*820
|
500
|
8
|
1900*960*1390
|
900
|
|
SJY0.5-9
|
1800*820
|
500
|
9
|
1900*960*1480
|
950
|
|
SJY0.5-10
|
2100*1200
|
500
|
10
|
2200*1350*1550
|
1260
|
|
SJY0.3-11
|
2100*1200
|
300
|
11
|
2230*1340*1650
|
1400
|
|
SJY0.5-12
|
2560*1500
|
500
|
12
|
2680*1670*1840
|
2160
|
|
SJY0.5-14
|
2830*1500
|
500
|
14
|
2975*1730*1870
|
2700
|
|
SJY0.5-16
|
2840*1500
|
500
|
16
|
2975*1690*2070
|
3000
|
|
SJY0.5-18
|
3165*1600
|
500
|
18
|
3280*1800*2430
|
4000
|
Product advantages
OUR ADVANTAGE
1. The lifting mechanism is made of high-strength manganese steel rectangular pipe;
1. The lifting mechanism is made of high-strength manganese steel rectangular pipe;
2. Equipped with a hydraulic safety protection system for overloading of the lifting platform;
3. Equipped with anti-falling safety protection device to prevent pipeline burst;
4. Equipped with a manual lowering valve for emergency lowering in the event of a power outage;
4. Equipped with a manual lowering valve for emergency lowering in the event of a power outage;
5. A telescopic table can be selected to expand the range of high-altitude operations;
6. Optional pneumatic tires or solid tires;
7. A manual hydraulic pump can be selected as the lifting power.
8. Optional AC phase power or three-phase power as power.
9. Optional DC battery or diesel electro mechanical as power.
