Quick Details
-
Model Number:
-
30 T
-
Power (kW):
-
11
-
Weight (KG):
-
700
-
Product name:
-
Vertical Hydraulic Beers Cans Baler
-
Driven Type:
-
Hydraulic Pressure
-
Automatic Grade:
-
Semi-automatic
-
Capacity(mass):
-
6-10 bales/h
-
Oil Cylinder:
-
115*2
-
Thrust(KN):
-
30 T
-
Number of Hydraulic oil:
-
46#Wear resistant hydraulic oil
-
Machine Size:
-
150*85*280cm
-
Machine Weight:
-
700 kg
-
Key word:
-
Vertical Scrap Tin Cans Baler
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mind
-
Warranty of core components:
-
1.8 years
-
Model Number:
-
30 T
-
Power (kW):
-
11
-
Weight (KG):
-
700
-
Product name:
-
Vertical Hydraulic Beers Cans Baler
-
Driven Type:
-
Hydraulic Pressure
-
Automatic Grade:
-
Semi-automatic
-
Capacity(mass):
-
6-10 bales/h
-
Oil Cylinder:
-
115*2
-
Thrust(KN):
-
30 T
-
Number of Hydraulic oil:
-
46#Wear resistant hydraulic oil
-
Machine Size:
-
150*85*280cm
-
Machine Weight:
-
700 kg
-
Key word:
-
Vertical Scrap Tin Cans Baler

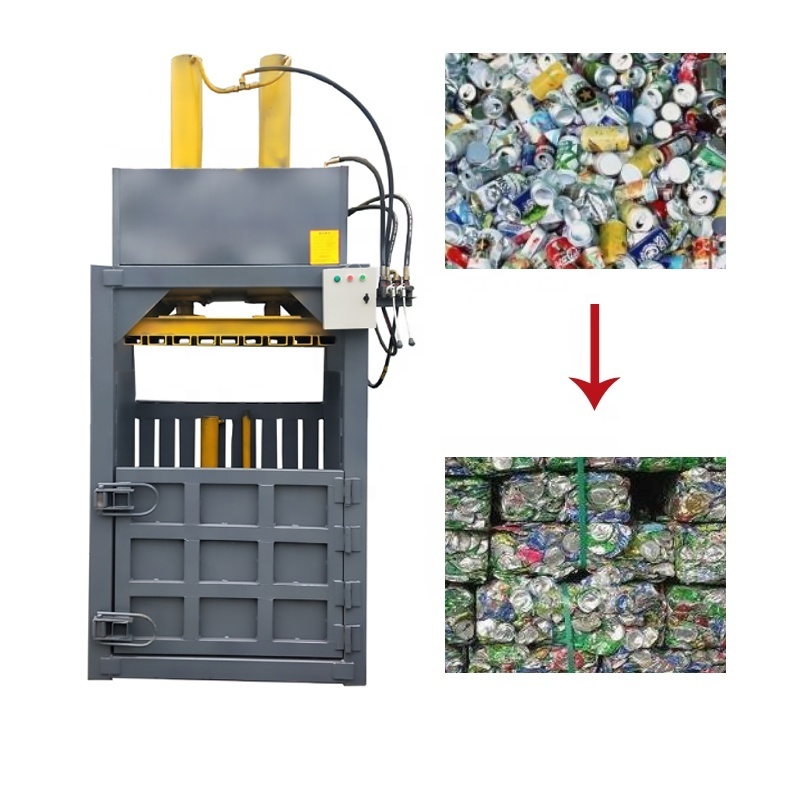

Vertical Recycling Compactor Automatic Aluminum Tin Can Baler Hydraulic Scrap Beer Cans Press Machine
Production Introduction of Square Hay Baler Machine:
1. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
2. It adopts the hydraulic drive mechanism to use less energy and is with huge operating energy.
3. It adopts Electric button control, which can reaches manual adjusting and semi automatic control.
4. It adopts Independent feeding opening with automatic pulling out installation to reduce labor force.
Vertical Recycling Compactor Automatic Aluminum Tin Can Baler Hydraulic Scrap Beer Cans Press Machine
Applications of vertical hydraulic baler machinne:
Our factory's Hydraulic Vertical Baling Machine can be used for compression and baling loose materials such as waste paper, waste cardboard, cardboard boxes, waste cloth, waste plastics, PET bottles, sacks, straws and so on. Compressed bales reduce the occupied space and facilitate transfer.
Structures of square hay balers machine:
Vertical Recycling Compactor Automatic Aluminum Tin Can Baler Hydraulic Scrap Beer Cans Press Machine
Technical Parameters of single cylinder vertical hydraulic hay baler machine:
| No. | Model | Parameter | |
| 1 | 8T singel cylinder | Baling size | 600*400*600mm |
| Machine size | 1250*650*2150mm | ||
| Power | 4kw | ||
| Outer diameter of Cylinder | 90mm | ||
| Inner diameter of Cylinder | 80mm | ||
| Oil pump | 306 gear pump | ||
| 2 | 10T singel cylinder | Baling size | 800*400*800mm |
| Machine size | 1450*650*2600mm | ||
| Power | 7.5kw | ||
| Outer diameter of Cylinder | 115mm | ||
| Inner diameter of Cylinder | 100mm | ||
| Oil pump | 320 gear pump | ||
| 3 | 20T singel cylinder | Baling size | 800*400*800mm |
| Machine size | 1450*650*2700mm | ||
| Power | 7.5kw | ||
| Outer diameter of Cylinder | 140mm | ||
| Inner diameter of Cylinder | 125mm | ||
| Oil pump | 325 gear pump | ||
| 4 | 30T singel cylinder | Baling size | 1000*600*800mm |
| Machine size | 1650*850*2750mm | ||
| Power | 11kw | ||
| Outer diameter of Cylinder | 160mm | ||
| Inner diameter of Cylinder | 140mm | ||
| Oil pump | 532 gear pump | ||
| 5 | 30T double cylinder | Baling size | 1000*600*800mm |
| Machine size | 1650*850*2700mm | ||
| Power | 11kw | ||
| Outer diameter of Cylinder | 115mm | ||
| Inner diameter of Cylinder | 100mm | ||
| Oil pump | 532 gear pump | ||
| 6 | 40T double cylinder | Baling size | 1000*600*800mm |
| Machine size | 1650*850*2750mm | ||
| Power | 11kw | ||
| Outer diameter of Cylinder | 140mm | ||
| Inner diameter of Cylinder | 125mm | ||
| Oil pump | 550 gear pump | ||
Quality Control:
1.We have a QC team, Strict quality control under CE, ISO9001. Our QC department strictly carries on a precise process to ensure best quality.
2.We salesman ,also as a order follower,would trace every phase of production from the beginning.
3.We would try our best to help clients solve questions when they occurred.
After Sales Service:
1.We provide Services to translate Operation Manual and Other Documents into your language, worry-free to operate and maintain
2.7x24 Technical Phone Service, we do care your real problems anytime Engineers available to service machinery overseas
Vertical Recycling Compactor Automatic Aluminum Tin Can Baler Hydraulic Scrap Beer Cans Press Machine
|
Delivery Time |
a. If stock machine, we can send out your products within 5-7 days after receiving clients’ payment. b. If you need special molds or customized production line, the delivery time according to you machine quantity, but we will send out as soon as possible. |
|
Payment Terms |
T/T, L/C, D/P, D/A, Escrow, Paypal , Western Union |
|
Package |
a. If you order single machine, it can be packed in one wooden case.
|
|
Quality Guarantee Terms |
a. Quality guarantee term is for one year. b. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. c. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Q:What's the payment terms and trade terms for new customers?
A:Payment terms:30% T/T desposit payment in advance, balance 70% before delivering.
Vertical Recycling Compactor Automatic Aluminum Tin Can Baler Hydraulic Scrap Beer Cans Press Machine
Q: How can i get the after-service?
A:1.We provide one year guarantee and lifelong maintenance.
2.Any problem about the machine,please contact us.We will try our best to help you solve.
3.We will send you the spare parts by free if the problems caused by us.
4.If it is the men-made problems,we also send the spare parts, however it is charged.
Q: How can I trust your company?
A:1. Mind has a reliable team to support you.
2. Mind is the CE,ISO certificated company.
3. Welcome to visit Mind in the fixed time.
Q:What machines Mind main produce?
A:We mainly produce Scrap metal baler,Hydraulic scrap shear,Metal Briquetting Press, Waste paper baler, Vertical balers and Horizontal Balers.
