Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
1200 Mbps
-
Type:
-
CPE
-
Place of Origin:
-
China
Quick Details
-
Max. LAN Data Rate:
-
1750Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
1200 Mbps
-
Type:
-
CPE
-
Place of Origin:
-
China
Products Description

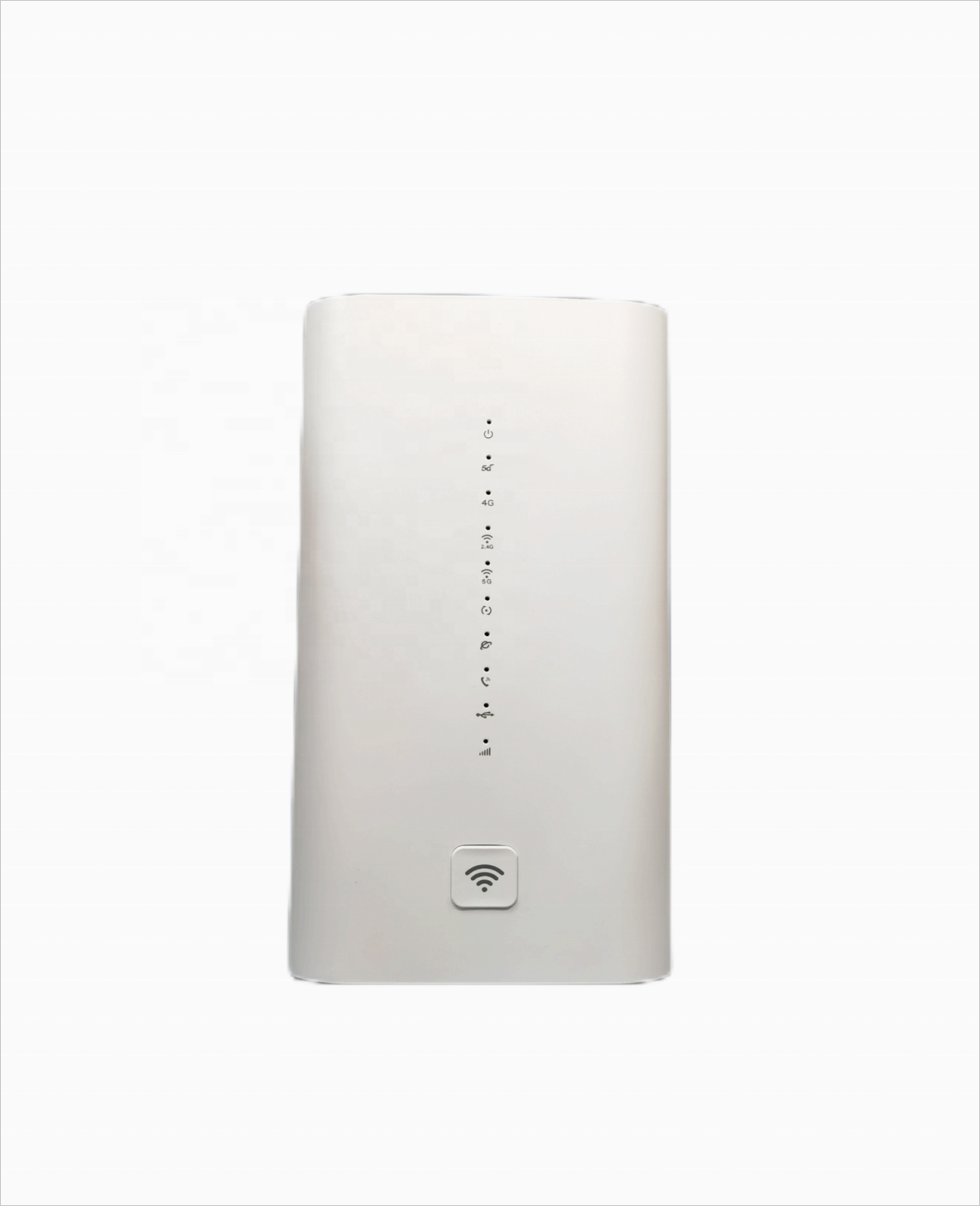

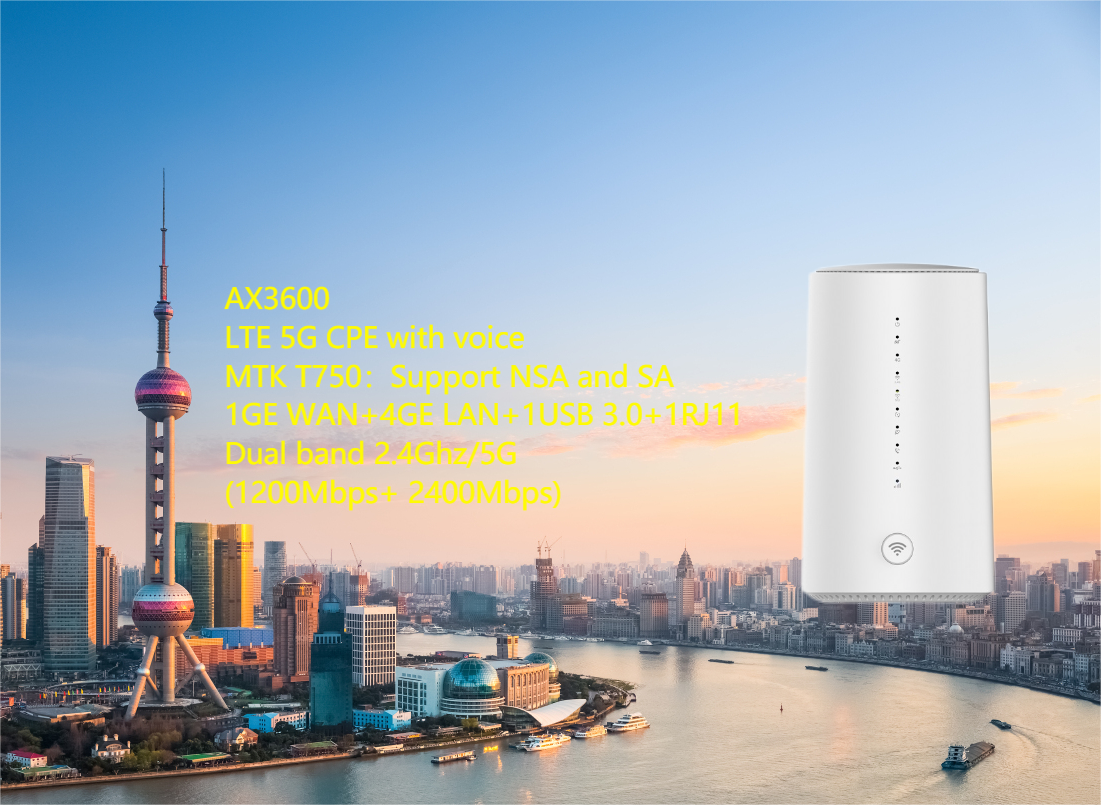

AX3600 LTE 5G CPE with voice
MTK T750：Support NSA and SA
1GE WAN+4GE LAN+1USB 3.0+1RJ11
Dual band 2.4Ghz/5G(1200Mbps+ 2400Mbps)

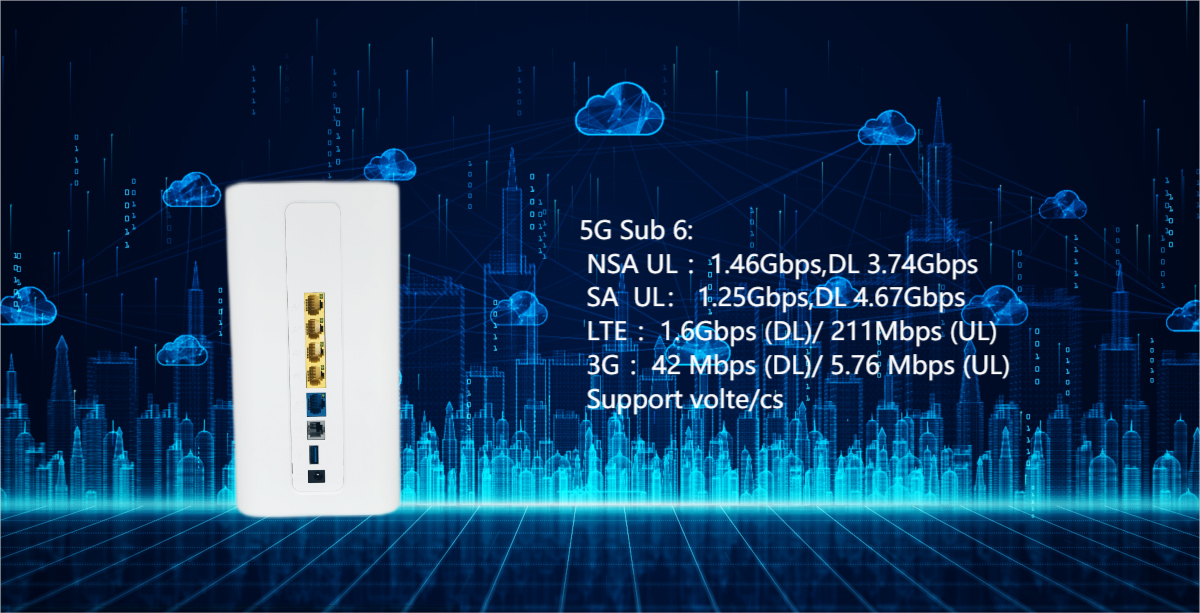

5G Sub 6:
NSA UL 1.46Gbps,DL 3.74Gbps
SA UL 1.25Gbps,DL 4.67Gbps
LTE 1.6Gbps (DL)/ 211Mbps (UL)
3G 42 Mbps (DL)/ 5.76 Mbps (UL)
Support volte/cs
Details Images
|
Hardware Parameters
|
|
|
|
Chipset
|
T750+MT7915AN/B(2PCS)+MT7959N/A+MT7959AN/A +MT7531A+LE9643
|
|
|
CPU frequency
|
Quad core ARM Cortex A55 2GHz
|
|
|
Memory
|
1GB 16-bit LPDDR4
|
|
|
Flash
|
1GB NAND
|
|
|
WIFI
|
4T4R 2.4GHz 802.11b/g/n/ac/ax, 1200Mbps
4T4R 5.8GHz 802.11a/n/ac/ax, 2400Mbps |
|
|
Device Interfaces
|
4 x RJ45 GE LAN Ethernet
|
|
|
|
1 x RJ45 GE WAN Ethernet(Option 2.5GE WAN Ethernet)
|
|
|
|
1 x reset button
|
|
|
|
1 x WPS button
|
|
|
|
1 x Power jack
|
|
|
|
1X USB 3.0
|
|
|
|
1 x RJ11 Phone jack
|
|
|
WIFI Antenna
|
4 x 5dBi internal 2.4G&5G dual band antenna
|
|
|
5G/LTE Antenna
|
8* 2~7dBi internal antenna
|
|
|
WIFI Features
|
|
|
|
Standard
|
802.11a/b/g/n/ac/ax
|
|
|
|
2.4G: 2.4~2.4835GHz
5G: 5.150~5.825GHZ |
|
|
|
Korea、Japan、ETSI、FCC channels can be selected
|
|
|
Modulation schemes
|
OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
|
|
|
|
DSSS = DBPSK, DQPSK, CCK
|
|
|
Transfer Rate
|
HE20: up to 1147Mbps 2.4G+5G
HE40: up to 2294Mbps 2.4G+5G HE80: up to 2400Mbps 5G Full: up to 3600Mbps 2.4G+5G |
|
|
5G /LTE Features
|
|
|
|
5G/ LTE Standards
|
Release 15, Cat.19
5G NR |
|
|
5G/ LTE Frequency Support
|
5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 LTE FDD: B1/B3/B5/B7/B20/B28 LTE TDD: B38/B40/B41/B42 |
|
|
5G/LTE Throughput
|
5G SA Sub-6 : DL 4.67Gbps; UL 2.5Gbps
5G NSA Sub-6: DL 3.74Gbps; UL 1.46Gbps LTE: DL 1.6Gbps; UL 211Mbps |
|
|
MIMO
|
DL: 4 × 4 UL: 2 × 2(only support 5G SA)
|
|
|
Output Power
|
23dBm±2dBm
|
|
|
Software Features
|
|
|
|
General
|
Wireless main Protocols:
= IEEE 802.11a = IEEE 802.11b = IEEE 802.11g = IEEE 802.11n = IEEE 802.11ac = IEEE 802.11ax = IEEE 802.11h(dfs) = IEEE 802.11e(wmm) = IEEE 802.11k/v/r Wireless spec Features: = Embedded AP with 4 SSIDs on each Radio = Separate authentication for each SSID = Wmf = AutoChannel Mobile main Protocols: = 3GPP Release 15 Mobile spec Features: = 5G SA && 5G NSA = VOLTE = APN && Dial Settings = NAT support = Pin Management = Message Management = sim lock/band lock lock support = AT Command Web interface provided Network main Protocols: = RFC0768 UDP = RFC0791 IP = RFC0792 ICMP = RFC0793 TCP = RFC0826 Ethernet ARP = RFC0894 IP over Ethernet = RFC0922 Broadcasting Internet Datagrams = RFC0950 Internet Standard Subnetting = IEEE802.3 Ethertype = IEEE802.1p = RFC2516 PPP Over Ethernet (PPPoE) = RFC1332 PPP Internet Protocol Control Protocol = RFC1042 Transmission of IP Datagrams over IEEE 802 Networks = IPoE Network spec Features: = IPv4/IPv6 dual stack = IPoE Bridge Mode = IPoE DHCP/Static = PPPoE Dynamic/Static = IPv6 Stateless/Stateful = IGMP and MLD proxy for IPTV = DNS Proxy = DHCP server = NAT,NAPT and ALG Other spec Features: = QOS Flow Control = Samba/DLNA/FTP = NAT,NAPT and ALG = DMZ and Port forwarding(Virtual server) = SPI Firewall, Denial of Service (DoS) protection = Port filtering, IP filtering and MAC filtering = URL filter = DDNS = Static route = SNTP Date/time update from Internet Time Server = Diagnostics(Ping/TraceRoute/Iperf/Tcpdump) = Logs and statistics = Automatic timing restart Management Features: = WEB GUI = Command line tools(telnet/ssh) = TR-069 remote mangagment = UPNP |
|
|
Environment Requirement
|
|
|
|
Operating Temperature
|
0°C~40°C
|
|
|
Storage Temperature
|
-20°C ~ 90°C
|
|
|
Operating Humidity
|
5%~95% (typical)
|
|
|
Power Supply
|
12V/1.5A
|
|
|
EMC/Safety
|
|
|
Regulation Compliance
|
CE
|
|
Safety Regulations
|
UL
|
|
Green Standard
|
RoHS
|
