Quick Details
-
Brand Name:
-
Yugong
-
Dimension(L*W*H):
-
1150*1180*940
-
Product name:
-
Rock Splitter
-
Wedge Length:
-
250mm
-
Splitting Length:
-
1000mm
-
Drilling Depth (mm):
-
500mm
-
Drilling Diameter:
-
42mm
-
Splitting Time:
-
10-15s
-
Power:
-
6HP
-
Quality:
-
Good
-
Weight:
-
30kg
Quick Details
-
Weight (KG):
-
150
-
Application:
-
Rock splitting
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Dimension(L*W*H):
-
1150*1180*940
-
Product name:
-
Rock Splitter
-
Wedge Length:
-
250mm
-
Splitting Length:
-
1000mm
-
Drilling Depth (mm):
-
500mm
-
Drilling Diameter:
-
42mm
-
Splitting Time:
-
10-15s
-
Power:
-
6HP
-
Quality:
-
Good
-
Weight:
-
30kg
Yugong is specialized in the rock splitting machine, including the small hydraulic rock splitter and excavator mounted rock splitter. Rock splitter is a kind of machine for splitting rock. It can split all kinds of natural stones, rock, granite, marble mining & quarrying and also break concrete. The rock splitting tool is mostly used in construction, decoration, engineering construction, ore mining, secondary disintegration of large ore, partial and total removal of concrete components. Safety, fast speed, adjustable oil pressure.

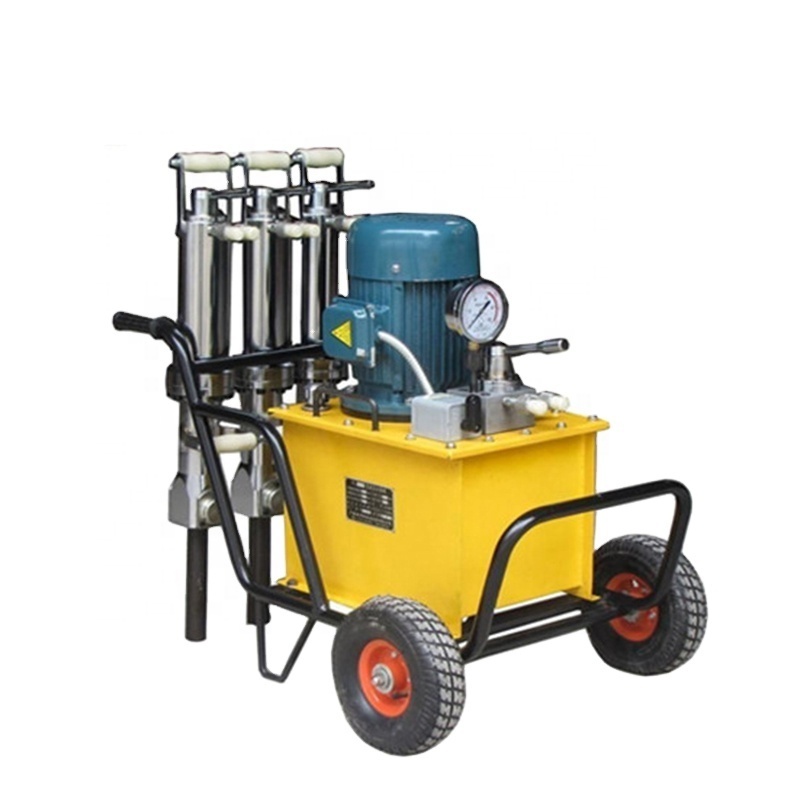

Hydraulic Rock Splitter is used for the division of rock,It can be used in construction, decoration, ,mining operations, the secondary disintegration of large pieces of ore, the local parts of concrete and all the demolition work.
Hydraulic rock splitter is composed of two parts:
hydraulic power pump
splitter.gun
According to the type of power pump, it can be divided into:
Electric engine rock splitter
Diesel engine rock splitter
Gasoline engine rock splitter
|
Splitter Gun
|
|||
| Model | YGX-250 | YGX-350 | YGX-450 |
| Wedge Length(mm) | 250 | 350 | 450 |
| Splitter Lebght(mm) | 1000 | 1100 | 1200 |
| Drilling Depth(mm) | 500 | 700 | 900 |
| Drilling Diameter (mm) | 42 | 46 | 46 |
| Crack Width(mm) | 10-20 | 10-20 | 10-20 |
| Splitting Time(s) | 10-15 | 10-15 | 10-15 |
| Splitting force(T) | 500 | 800 | 800 |
| Weight (kg) | 30 | 30 | 30 |
|
Hydraulic Pump Pack Parameters
|
||||
| Engine | Diesel | Electric | Pneumatic |
Gasoline
|
| Power | 6HP | 4kw,5.5kw | 8HP |
8HP
|
| Weight | 150kg | 130kg | 130kg | 150kg |
