Quick Details
-
Brand Name:
-
SR
-
Model Number:
-
SR-T-880
-
Warranty:
-
12 Months
-
Product name:
-

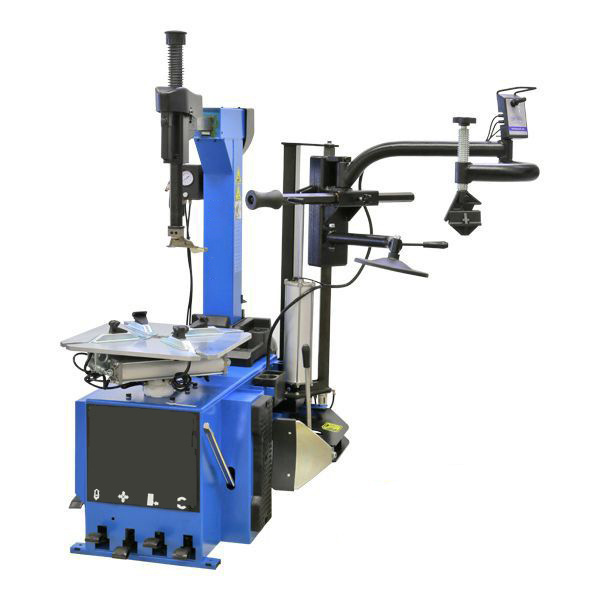

Car tire changer with helper arm
-
External Locking Rim Dimensions:
-
300mm-510mm
-
Internal Locking Rim Dimensions:
-
355mm-585mm
-
Bead Breaker Force (10bar):
-
2500Kg
-
Working Pressure:
-
8-10bar(116-145Psi)
-
Voltage:
-
110V/220V (1ph), 380V (3ph)
-
Power:
-
0.75Kw-1.1Kw
-
Noise:
-
<70d
Quick Details
-
Motor Power:
-
0.75Kw-1.1Kw
-
Power Supply:
-
110V/220V (1ph), 380V (3ph)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SR
-
Model Number:
-
SR-T-880
-
Warranty:
-
12 Months
-
Product name:
-
Car tire changer with helper arm
-
External Locking Rim Dimensions:
-
300mm-510mm
-
Internal Locking Rim Dimensions:
-
355mm-585mm
-
Bead Breaker Force (10bar):
-
2500Kg
-
Working Pressure:
-
8-10bar(116-145Psi)
-
Voltage:
-
110V/220V (1ph), 380V (3ph)
-
Power:
-
0.75Kw-1.1Kw
-
Noise:
-
<70d
Products Description
Tyre changing device with inflation operated (extra customized) tilt column and integrated air supercharger in clamping jaw system, suitable for standard, thin and non slip tyres.
Tire change with auxiliary arm.
Features
* Top built quality with CE- certificat
* Manufactured to ISO 9001
* Pneumatically operated tilting column
* Top qualitiy and massive construcion
* Wheel rim protective mounting
* Pneumatically lock of mount head
* Powerful bead breaker (5500 lbs.)
* Self centered 4 clamping jaw system
* 26 ” large turntable for cars and vans
* Intergrated air-booster in the clamping jaw system
* Plastic protectors for demount head / jaws plastic gliders to protect rims
* Powerful E-Motor for supply- and return lines
* Clamping jaws made of special steel
* Manufactured to ISO 9001
* Pneumatically operated tilting column
* Top qualitiy and massive construcion
* Wheel rim protective mounting
* Pneumatically lock of mount head
* Powerful bead breaker (5500 lbs.)
* Self centered 4 clamping jaw system
* 26 ” large turntable for cars and vans
* Intergrated air-booster in the clamping jaw system
* Plastic protectors for demount head / jaws plastic gliders to protect rims
* Powerful E-Motor for supply- and return lines
* Clamping jaws made of special steel
Technical Data
|
Outside clamping
|
12″- 22″
|
|
Inside clamping
|
14″- 24″
|
|
Wheel diameter (max.)
|
1050mm
|
|
Wheel width (max.)
|
460mm
|
|
Bead breaker force
|
2500Kg
|
|
Power supply
|
0.75Kw-1.1Kw
|
|
Motor power
|
110V/220V (1ph), 380V (3ph)
|
|
Noise level
|
<70dB
|
|
Weight
|
180kg
|
Product Overview
Product packaging
* Tire changer with a maintenance unit
* Inflating gun and bead lever
* Clamp protector for clamping jaws system (4 items)
* 3 set plastic protector for mount and demount head
* Operating and maintenance instructions
* CE-certificate
* Different inserts for tire pressing head
* Inflating gun and bead lever
* Clamp protector for clamping jaws system (4 items)
* 3 set plastic protector for mount and demount head
* Operating and maintenance instructions
* CE-certificate
* Different inserts for tire pressing head
