- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
603K
-
Place of Origin:
-
Chongqing, China
-
Structure:
-
Peristaltic pump
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Standard
-
Flow rate:
-
less than 2880ml/min
-
Drive:
-
DC brushless speed motor;Stepper motor;DC motor,DC planetary motor
-
Material:
-
Crust Material: PC,PA66 Roller Material:Nylon+MoS2
-
Voltage:
-
12V/24V
-
Tubing:
-
24#,35#,36#
Quick Details
-
Application:
-
Drinking water treatment, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Brand Name:
-
JIHPUMP
-
Model Number:
-
603K
-
Place of Origin:
-
Chongqing, China
-
Structure:
-
Peristaltic pump
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Standard
-
Flow rate:
-
less than 2880ml/min
-
Drive:
-
DC brushless speed motor;Stepper motor;DC motor,DC planetary motor
-
Material:
-
Crust Material: PC,PA66 Roller Material:Nylon+MoS2
-
Voltage:
-
12V/24V
-
Tubing:
-
24#,35#,36#
Hot Sale Products
Why Choose Us
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 16+ years experience.
4.More than 10,000 cooperative customers.
We meet all your peristaltic pump needs.
Please contact us now
: for product information, parameters, prices and application advice.
|
Lilian He(Europe , North and South America) :
|
April Huang(Asia and Africa) :
|
|
WhatsApp:+8618983834629
|
WhatsApp:+8615703016080
|
|
Skype：+8618983834629
|
Skype：jihpump
|
|
Email：alan@jihpump.com
|
Email：april@jihpump.com
|
Product Discription
|
2.
Roller
: 3 Roller, stable transmission, low pulse.
3.
Pressing block
: Rotary drawing block, easy tube change and easy maintenance.
4.
Motor
: DC geared motor/DC planetary motor/Stepper motor.
5.
Tube
: Wall thickness 2.4mm, optional 24#, 35#, 36#.
The 603K peristaltic pumps other main features: High efficiency of large suction, easy tube change and easy maintenance, U-shaped compact structure.
|
|
|
|
|
||||
|
Product Name
|

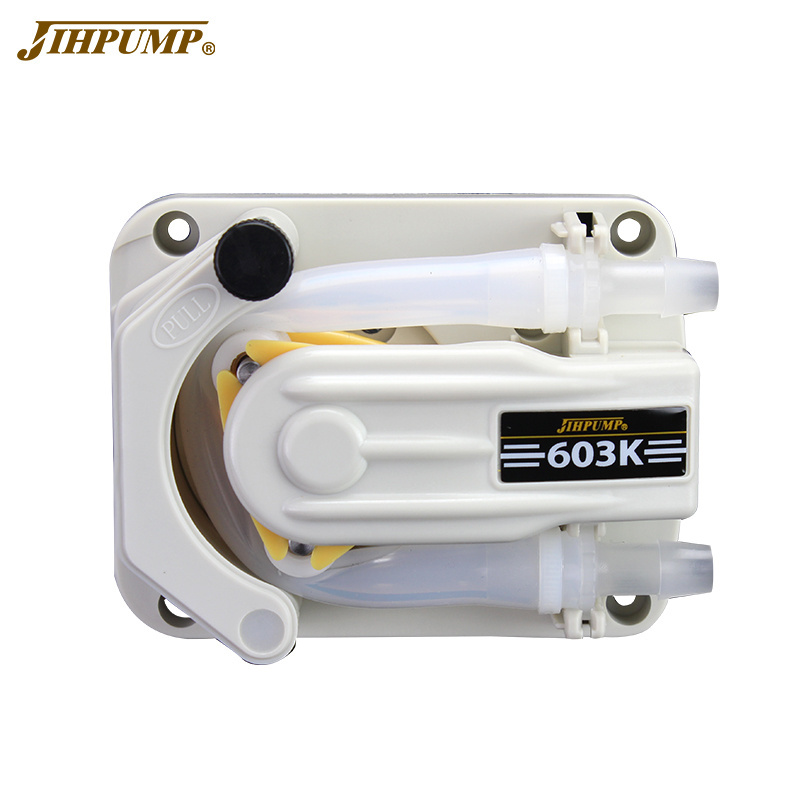

603K Quick Mounting Panel Peristaltic Pump
|
|
|
||
|
Product Model
|
603K/ZL
|
603K/ZLX
|
603K/BT
|
||
|
Motor Type
|
DC geared motor
|
DC planetary motor
|
Stepper motor
|
||
|
Voltage and Current
|
DC 12V, 6A / 24V, 3A
|
DC 12V, 4A/24V, 2A
|
DC24V, 4A
|
||
|
Power
|
≤36W
|
≤24W
|
≤60W
|
||
|
Motor Life
|
800~1500hours
|
1000~2000hours
|
5000~20000hours
|
||
|
Weight
|
750g
|
622g
|
922g
|
||
|
Work Environment
|
Temperature 0 (no icing) ~ 60℃, relative humidity < 85%RH
|
|
|
||
|
Outlet Pressure
|
≤0.17MPa
|
|
|
||
|
Noise
|
≤73dB
|
≤66dB
|
≤58dB
|
||
|
Main Material
|
Upper brace: polyamide, wheel set: polyformaldehyde, base: polyamide
|
|
|
||
Common Applications
:
Chemical industry: sewage treatment, food process: food and beverage transportation, kitchen application, experimental equipment, printing and dyeing industry: dye transportation, environmental protection instruments: water quality sampling, construction industry: coating transportation
etc.
Applications Industry
: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP
has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.
|
Joint Name
|
Inner tube size
|
Connect Size
|
Connection Description
|
|
Direct joint
|
internal diameter:
6.4mm/7.9mm/9.7mm
|
internal diameter:
6.4mm/7.9mm/9.7mm
|
Connect the hose
|
|
Adjustable joint
|
internal diameter:
6.4mm to 7.9mm
|
internal diameter:
7.9 mm to 6.4mm
|
|
|
Right angle joint
|
internal diameter: 6.4mm/7.9mm
|
internal diameter: 6.4mm/7.9mm
|
|
Installation mode
:
Panel installation, base with mounting holes.
We are the largest OEM peristaltic pump manufacturer in China and can meet all your peristaltic pump needs.
Please contact us now
: for product information, parameters, prices and application advice.
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
