Quick Details
-
Type:
-
SF701
-
Name:
-
pallet stringer notcher
-
Product name:
-
wood pallet notcher
-
Usage:
-
notcher for wood pallet stringer
-
Application:
-
wood pallet stringer
-
Color:
-
White, blue , yellow
-
Raw material:
-
Galvanized steel
-
Weight:
-
800kg
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Saifan
-
Model Number:
-
SF701
-
Type:
-
SF701
-
Name:
-
pallet stringer notcher
-
Product name:
-
wood pallet notcher
-
Usage:
-
notcher for wood pallet stringer
-
Application:
-
wood pallet stringer
-
Color:
-
White, blue , yellow
-
Raw material:
-
Galvanized steel
-
Weight:
-
800kg
-
Warranty:
-
1 Year

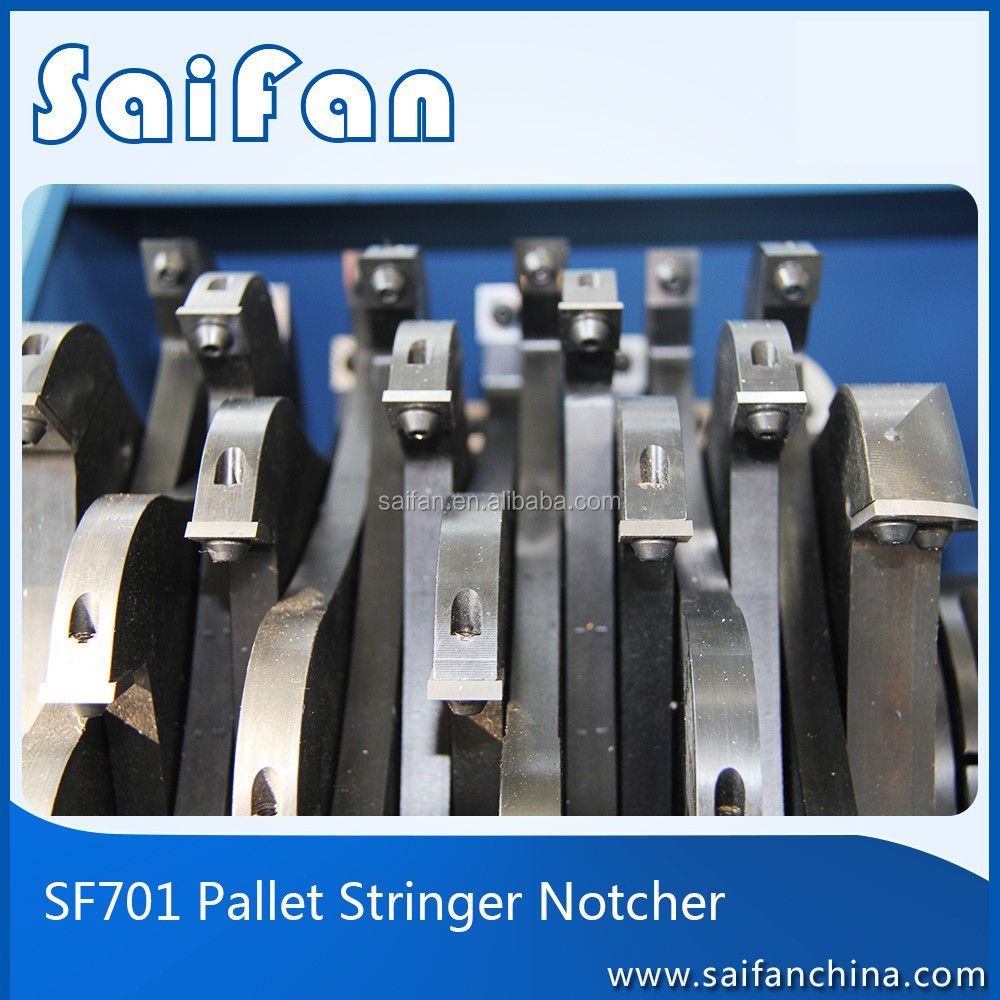

SF701 Pallet stringer notcher. Notcher for pallet stringer.
SF701 - Pallet stringer notcher is used for stringer notchering for pallet.
Below is our pallet stringer notcher for pallet stringer notchering.
Main feature:
Siemens industry control system; the working strength is low; high efficient, safe.
Basic parameter:
|
Name |
SF701 Pallet stringer notcher machine |
|
Motor Power |
15KW |
|
Cutter type |
Single notcher (abandoned cutting tool) |
|
Diameter of Cutter |
305mm |
|
Arc Radius |
R=1in (25.4mm) |
|
Notching width |
Standard configuration: 230mm 0-305mm adjustable The adjustment shall be the multiple of 1/2inch (12.7mm) |
|
Notching depth |
0-60mm adjustable |
|
Notching thickness |
80mm ≤ H ≤ 150mm |
|
Productivity |
500-700 pc/h |
|
Working Pressure |
0.6-0.7Mpa |
|
Controlling System |
Siemens |
|
Machine dimension |
2400*1200*1100mm |
|
Machine weight |
800kg |
You tube
SF701 - Pallet stringer notcher
https://www.youtube.com/watch?v=2GLinYV4xpI
