- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SUL181D
-
Max. Current:
-
16A
-
Product name:
-
Timer Switch
-
Program:
-
Daily Program
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Warranty:
-
12 Months
-
Type:
-
Digital Programmable Timer
-
Rated Voltage:
-
AC 220-240V
-
Color:
-
White
-
Contace Capasity:
-
AC 220V 16A
-
Service:
-
ODM OEM
-
Display:
-
Mechamical
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
MOREDAY
-
Model Number:
-
SUL181D
-
Max. Current:
-
16A
-
Product name:
-
Timer Switch
-
Program:
-
Daily Program
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Warranty:
-
12 Months
-
Type:
-
Digital Programmable Timer
-
Rated Voltage:
-
AC 220-240V
-
Color:
-
White
-
Contace Capasity:
-
AC 220V 16A
-
Service:
-
ODM OEM
-
Display:
-
Mechamical
Product Description

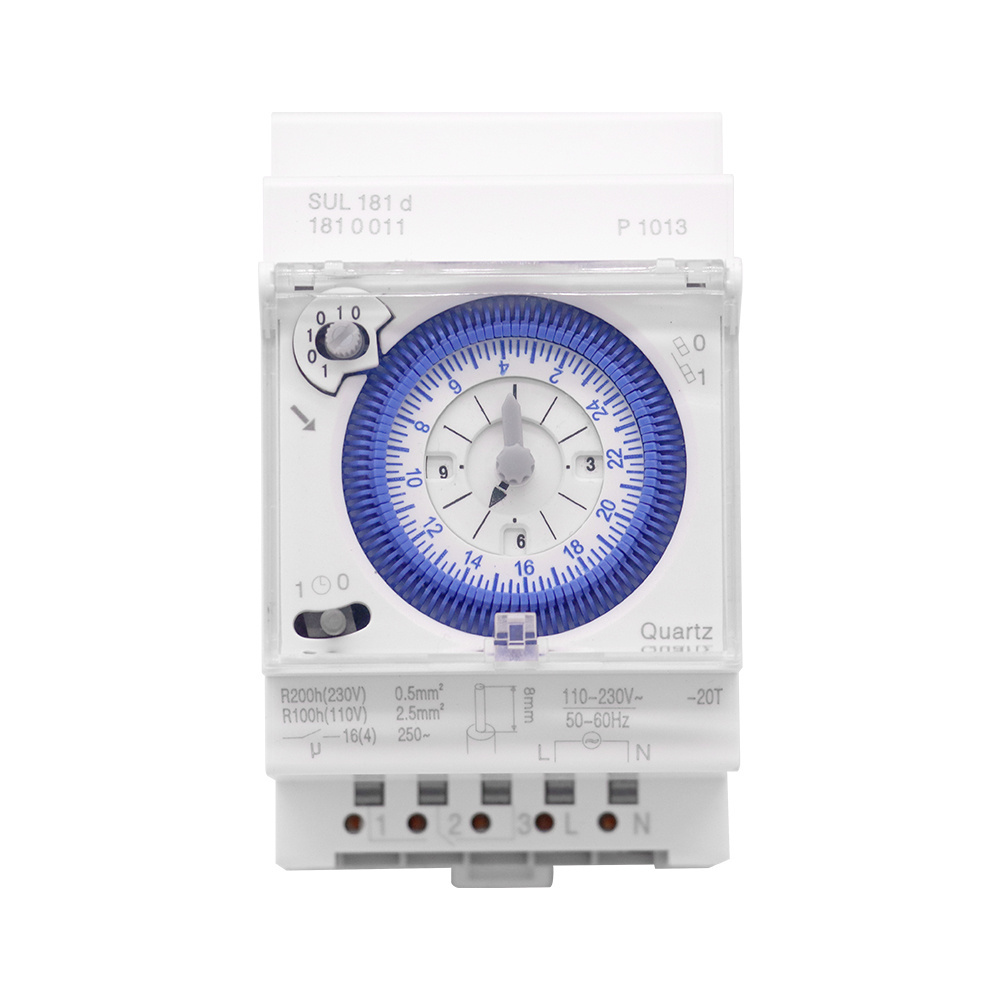

MOREDAY SUL181D TIMER SWITCH
|
Item No
|
SUL181d
|
|
Operating Voltage
|
AC 110V/220V/240V 50-60HZ
|
|
Power Consumption
|
2.5VA
|
|
Contace Capasity
|
AC 220V 16A
|
|
Contact Resistance
|
≤50MΩ
|
|
Inaulation Resistance
|
≥100MΩ
|
|
Accuracy
|
≤2S/DAY 25°C
|
|
Operating Temperature
|
-10°C~+55°C
|
|
Conract Capacity
|
Lamp Load :1000W Resistive Load :16A/250VAC (COSφ=1) Inductive Load :3A/250VAC(COSφ=0.6)
|
|
Weight
|
152g
|
Details Images
Description:
Item No.: SUL181h / SUL181 dOperating
Item No.: SUL181h / SUL181 dOperating
Voltage: AC 110V/220/240V 50-60Hz
Power Consumption: 2.5VAContace Capasity: AC 220V 16A
Contact Resistance: ≤50MΩInaulation Resistance: ≥100MΩOperating
Contact Resistance: ≤50MΩInaulation Resistance: ≥100MΩOperating
Temperature: -10℃~+55℃Accuracy: ≤2S/day 25℃
Contact CapacityLamp
Load:1000W Resistive Load:16A/250VAC(cosΦ=1)Inductive Load:3A/250VAC(cosΦ=0.6)Working Reserve
Load:1000W Resistive Load:16A/250VAC(cosΦ=1)Inductive Load:3A/250VAC(cosΦ=0.6)Working Reserve
Time: 150 hours after recharging 24 hoursFull
Timing Range: 24hStonage
Battery: 150hMinimum Setting Unit: 30 MinutersSetup
Times: 30 Minuters/time 48 TimeDimension11:
SUL181 h : 110*54*65mm ..
SUL181 d : 92*55*66mm
Weight: 196gInstalling
SUL181 h : 110*54*65mm ..
SUL181 d : 92*55*66mm
Weight: 196gInstalling
Mode: DIN rail mounting
The main purpose:
◎ Automatic operation of factory machinery: plastic molding processing machines, soldering furnaces, electroplating equipment, experimental equipment, quality control equipment, scientific machines, etc.
◎ Automatic operation of factory equipment: factory lighting equipment, advertising signs, boilers, water treatment equipment, air compressors, air conditioning equipment, cooling towers, chargers, drying furnaces
◎ Defrost for freezers and refrigerators
◎ Timing locks and timing devices for vaults, security and anti-theft systems
◎ Timing control of agricultural and horticultural machinery: electric lighting cultivation, automatic watering, drug distribution, timing feeding of animals (chicken, deer, fish, etc.)
◎ Others: refrigeration equipment, street lamps, packaging machinery, metal processing machines, working machinery
