Quick Details
-
Brand Name:
-
hongfa
-
Voltage:
-
380
-
Power:
-
15
-
Dimension(L*W*H):
-
1500*600*300
-
Weight:
-
2000 kg
Quick Details
-
Pipe Material:
-
CONCRETE
-
Production Capacity:
-
2000pcs
-
Place of Origin:
-
China
-
Brand Name:
-
hongfa
-
Voltage:
-
380
-
Power:
-
15
-
Dimension(L*W*H):
-
1500*600*300
-
Weight:
-
2000 kg
2.Product Specification
(1)Product Length: 1m.
(2)Product Diameter:200-1000mm.
(3)Production Efficiency:5-10mins/pcs.
3.Product Advantages
(1)Quick release from the mold.
(2)High Productivity, 30-100pcs/day
(Depending on the size)
(3)One machine can make different types of products(Only Need Change Mold)
(4)Cheap Price
4.Application
Small-scale construction drainage and small bridge use.
low in manufacturing cost.
2. The rabbet joint has the advantages of the socket type, and is more significant than the socket type, but it also has a remarkable feature that the socket type does not have, that is, it is suitable for large-diameter pipes and sockets.
Product Specification
|
Application
|
Drain Pipe
|
|
Speed of main shaft
|
45rolls/min
|
|
Moulding cycle
|
5-10 min
|
|
used in
|
agricultural irrigation, urban water supply
|
|
Overall dimenstion
|
1840*1700*4000mm
|
|
Reducer rate
|
1000mm
|
|
Whole power
|
11.75kw (motor:7.5kw)
|
|
Model Number
|

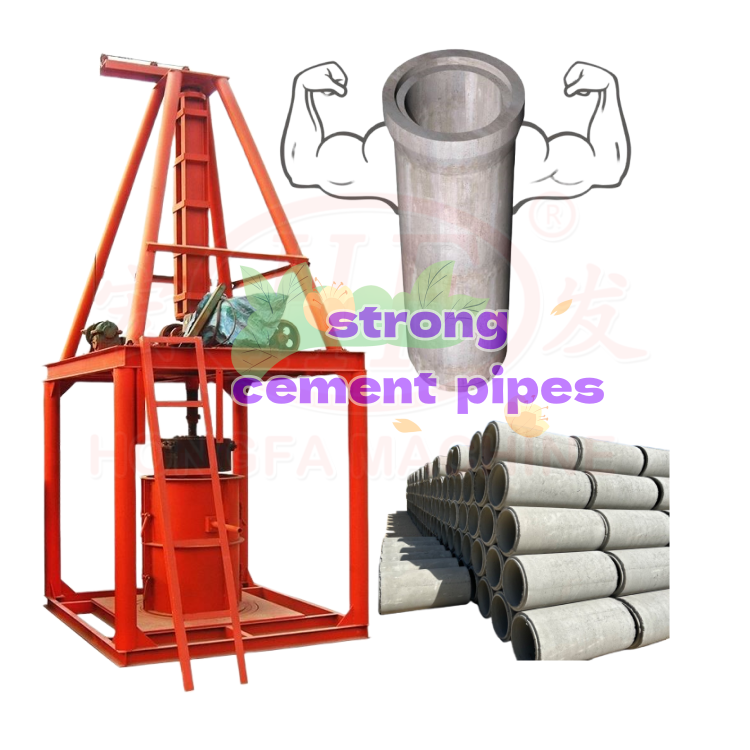

V vertical extruding pipe-making machine
|
|
Mould diameter (inside mm)
|
φ200, φ300, φ400, φ500, φ600, φ700, φ800, φ1000
|
|
Wall Thickness
|
φ200 30mm, φ300 30mm,φ400 40mm, φ500 50mm, φ600 60mm,
φ700 70mm,φ800 80mm ,φ1000 100mm |
Best-Selling Culvert Cement Pipe Making Machine To Make Flat Joint And Socket Joint Concrete Pipe
Advantages for pipes
The Clients Need To Provide Us The Following Informations:
1, Which type of the machines are you planning to buy, Horizontal type or Vertical type?
Diameter :300,400,600,800,1000,1200,1500,2000mm
otherwise will be subject to the Chinese National Standard.
|
1.Operating Principle
Concrete is formed into tubes by centrifugal force.
2.Product Specification (1)Product Length: 1-5meters. (2)Product Diameter: 300-2400mm. (3)Production Efficiency:5mins/pcs. 3.Product Advantages (1)Use of dry hard concrete, no waste slurry, less material waste, no environmental pollution. (2)High production efficiency. (3)High external compressive strength. (4)Steel frame can be added for strength. (If required) 4.Application Municipal drainage, agricultural irrigation, highway culverts and deep wells. |
Culvert Cement Pipe Making Machine To Make Flat Joint And Socket Joint Concrete Pipe
Packing: The pipe machine will be well prepared and proper packaged with Plastic Film Wrapping. All process are accordance with international standard, which ensure the machines and equipment in the container are seaworthy.
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer of board making machinery.
1.We have successfully exported and established more than 100 sets of Pipe machine in domestic and overseas. So we
have many type of business model in other countries.
2.Our company has set up office in Vietnam, Indonesia, South Africa and sale service station in nanning Guangxi province and will
ensure the matericals rapid and timely service.
Pre-sales Service
* Inquiry and consulting support.
* Solution support.
* View our Factory.
After-sales Service
* Training how to install the machine, training how to use the machine, English instructions available.
* Engineers available to service machinery overseas.
(1) Provide corresponding technical solutions and site layout;
(2) Provide guidance equipment installation and operation for users.
(3) For each equipment ,we will train mainly operating personnel 5-10.
(4)12 months guarantee, and provide lifelong technical support.
(5) Feedback within 24 hours after consulting.
(6) Build customers using and maintaining files as soon as dispatch machines;
(7) After finish debugging of equipment, users inspect and sign the acceptance certificate according to the situation of site service.
