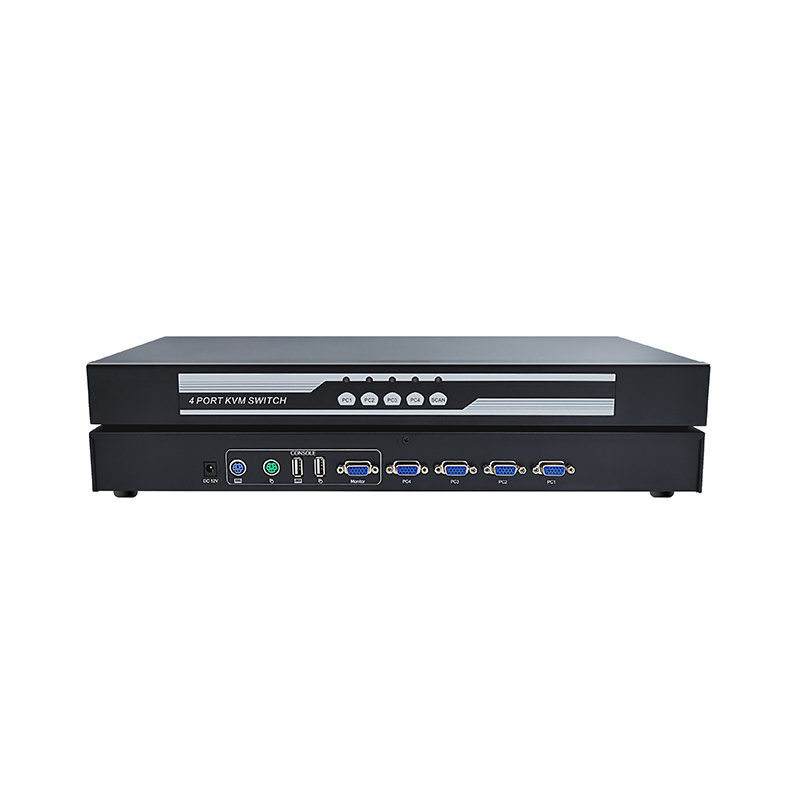

There are 2, 4 and 8 buttons on the front panel, and pressing any of them will switch you to one of the 2, 4 and 8 ports.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
VGA KVM USB Switch
-
VGA Interface:
-
4 input+1 output(HDB15 Female)
-
Interface:
-
2*USB+2*PS2(Only keyboard and mouse)
-
Material:
-
Metal Shell
-
Dimension (L x W x H):
-
410x215x44.5(mm)
-
Resolution:
-
1920 x 1440
-
Power supply:
-
DC12V1A
-
Support:
-
Hot Swap
-
Operating temperature:
-
-40℃~85℃
-
Operating humidity:
-
0%-80%(No condensation)
Quick Details
-
Model Number:
-
PIN-VGA-16-SW
-
Brand Name:
-
PINWEI
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
VGA KVM USB Switch
-
VGA Interface:
-
4 input+1 output(HDB15 Female)
-
Interface:
-
2*USB+2*PS2(Only keyboard and mouse)
-
Material:
-
Metal Shell
-
Dimension (L x W x H):
-
410x215x44.5(mm)
-
Resolution:
-
1920 x 1440
-
Power supply:
-
DC12V1A
-
Support:
-
Hot Swap
-
Operating temperature:
-
-40℃~85℃
-
Operating humidity:
-
0%-80%(No condensation)
1. Enables users to quickly switch operation from a single USB keyboard, mouse, and a VGA video signal interface to 4 mainframes for efficient multitasking;
2. Video resolution - up to 1920 × 1440 users can enjoy a wider screen display, giving you the best work Experience;
3. KVM switcher can switch between 4 or 8 16 computers. It also provides 2-port USB. Namely USB keyboard, Mouse data are quickly and seamlessly switched through KVM cable, while providing PS2 keyboard and mouse for users to use;
4. The installation of the device is simple and convenient, just insert the cable into the corresponding port. No software configuration is required and wide compatibility .
It can work on Windows, Linux, Mac and other operating system platforms.
2. Video resolution - up to 1920 × 1440 users can enjoy a wider screen display, giving you the best work Experience;
3. KVM switcher can switch between 4 or 8 16 computers. It also provides 2-port USB. Namely USB keyboard, Mouse data are quickly and seamlessly switched through KVM cable, while providing PS2 keyboard and mouse for users to use;
4. The installation of the device is simple and convenient, just insert the cable into the corresponding port. No software configuration is required and wide compatibility .
It can work on Windows, Linux, Mac and other operating system platforms.
Specification
|
item
|
value
|
|
Product name
|
VGA KVM USB Switch
|
|
VGA Input
|
4 computers
|
|
Input Interface
|
HDB15 Female(PC)
|
|
Output Interface
|
HDB15 Female(monitor)
|
|
|
USB A*2+PS2*2(Keyboard and mouse only)
|
|
Cascade method
|
Tree cascade, Using KVM wire connection
|
|
Switching mode
|
Keys, Keyboard hotkeys, OSD menu
|
|
Indicator light
|
5
|
|
Automatic scan interval
|
5-200 seconds
|
|
Power
|
DC12V1A
|
|
Operating Temperature
|
-40℃~85℃
|
|
Operating humidity
|
0%-80%(No condensation)
|
|
Material
|
Metal shell
|
|
Resolution
|
1920 x 1440
|
|
Packing list
|
Switcher*1,Rack ear*2,12V1A power adapter*1,
Operation instruction*1,Warranty card*1,Qualification*1
|
Product Features
1.Provide front panel keys, keyboard hotkeys and OSD menu 3 switching modes;
2.Provide a variety of automatic scan mode and scan time( 5-200 seconds) ;
3.Hot plug function - add or remove connected computers without turning off the power;
4.Manage 4 or 8 or 16 computers through a group of USB keyboard, mouse or PS2 keyboard, mouse and monitor control terminal;
5.Support for cascading - manage more computers;
2.Provide a variety of automatic scan mode and scan time( 5-200 seconds) ;
3.Hot plug function - add or remove connected computers without turning off the power;
4.Manage 4 or 8 or 16 computers through a group of USB keyboard, mouse or PS2 keyboard, mouse and monitor control terminal;
5.Support for cascading - manage more computers;
6.
Wide Compatibility
–
Compatible with Windows / VISTA / Netware / Unix / Linux / Mac, etc.
Product
Connect
1) Switch off the power of the switcher, VGA display and each host computer.
2) Insert the USB keyboard and USB mouse into the ports identified as keyboard and mouse on the switcher.
3) Plug the VGA Monitor into the port marked "Monitor" on the switcher and turn on the power of the monitor.
4) Connect the VGA port on the switch with the host VGA port by using KVMUSB cable.
5) Connect the USB port on the switcher with the host USB port with the USB cable.
2) Insert the USB keyboard and USB mouse into the ports identified as keyboard and mouse on the switcher.
3) Plug the VGA Monitor into the port marked "Monitor" on the switcher and turn on the power of the monitor.
4) Connect the VGA port on the switch with the host VGA port by using KVMUSB cable.
5) Connect the USB port on the switcher with the host USB port with the USB cable.
Three switching modes
1.Key switch
2.OSD menu
Press Ctrl twice to invoke the OSD menu of the switch,
use ↑↓ to select the menu, and press Enter to confirm.
3.Keyboard switch
Press the ScrollLock key twice, press the number keys 1-8 and release, and finally press Enter, which will switch to mouth 1 or 2 or 3 or 4.... Or the eighth bite.
